CSD650 -25m
CSD650 -25m

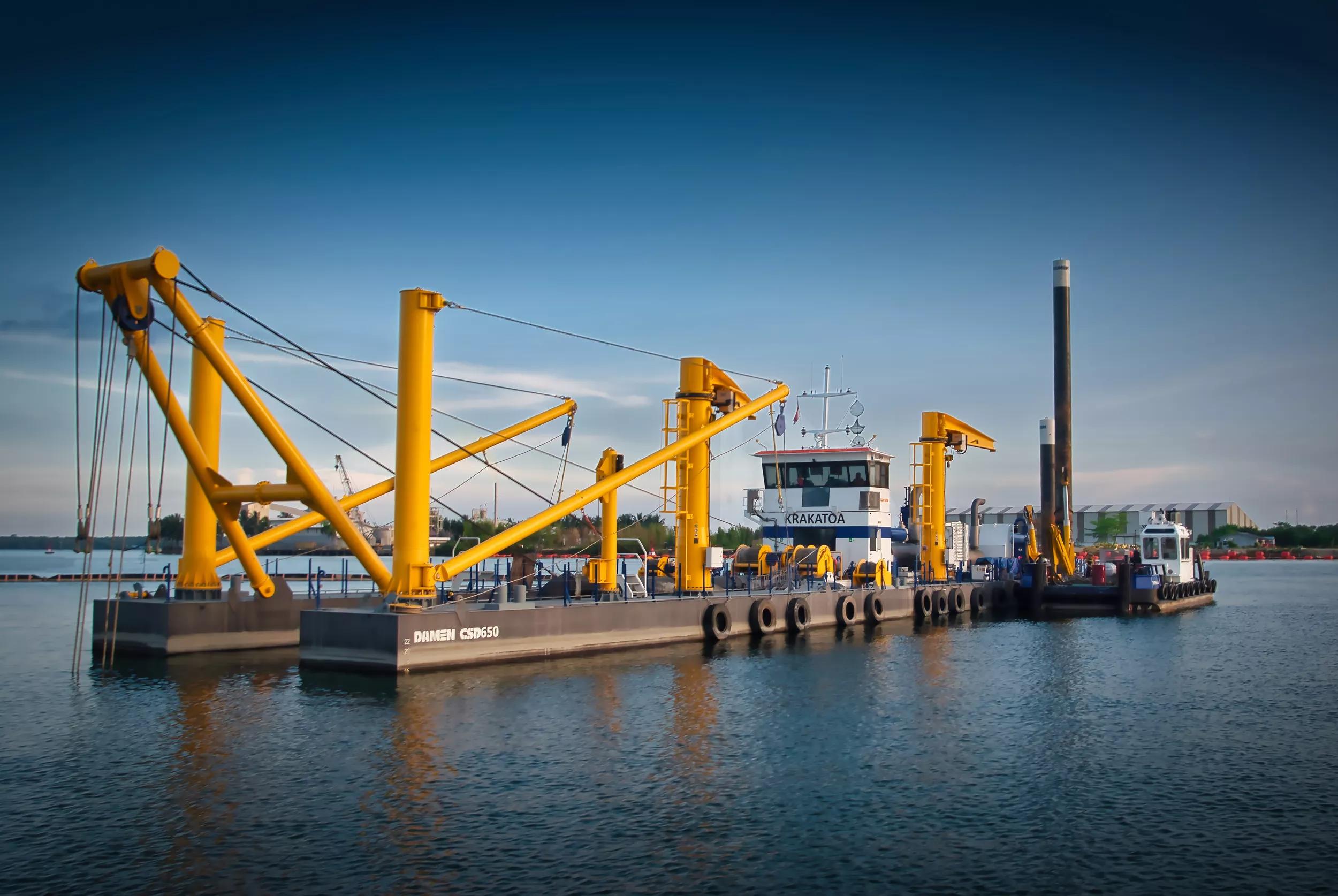

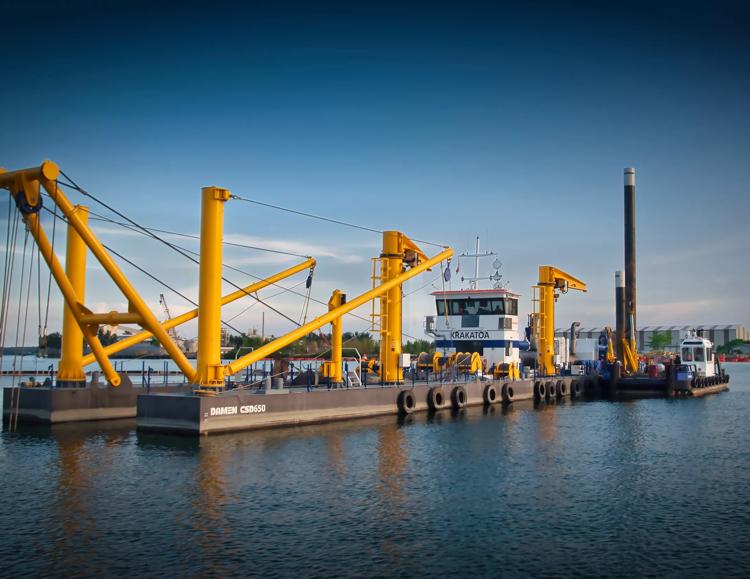

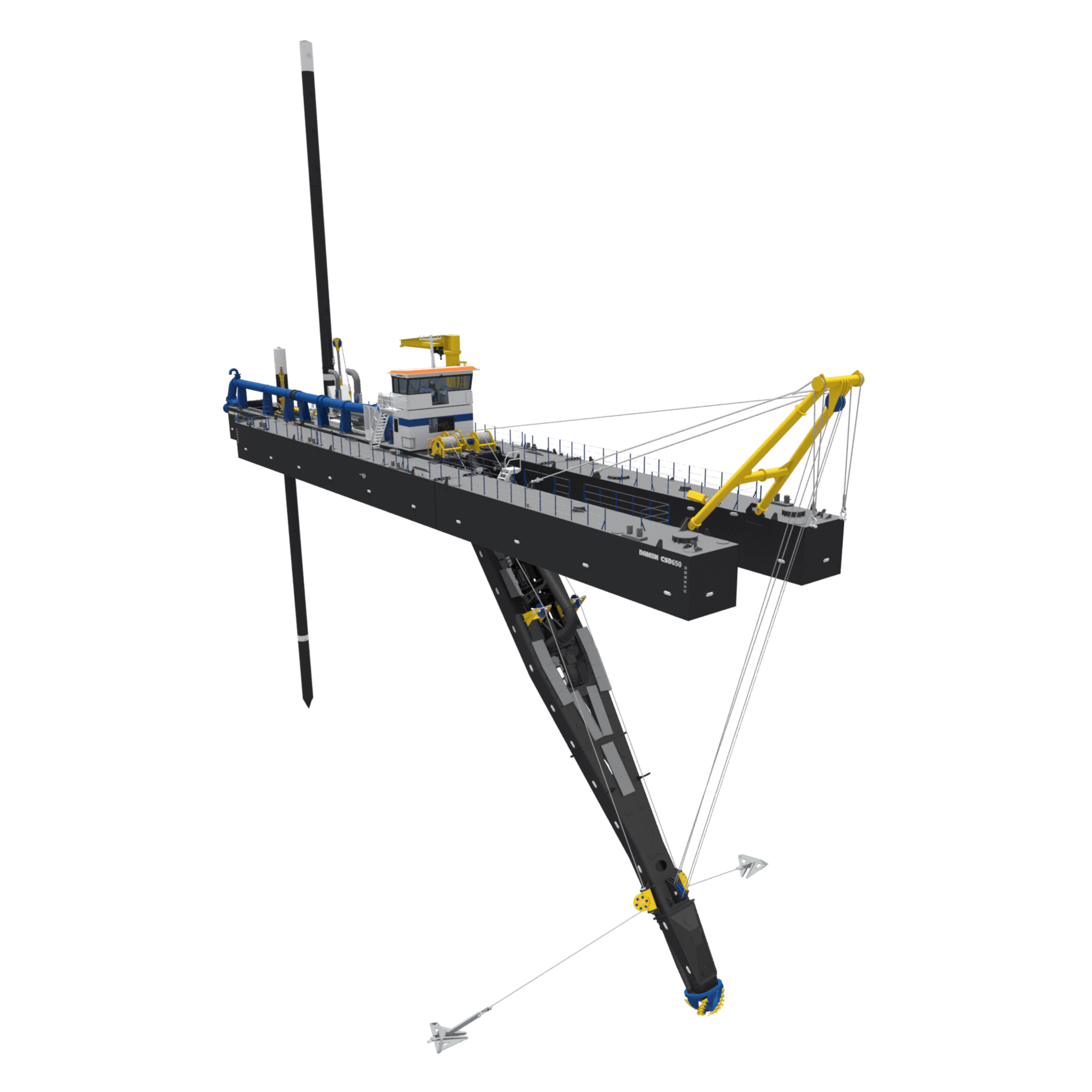

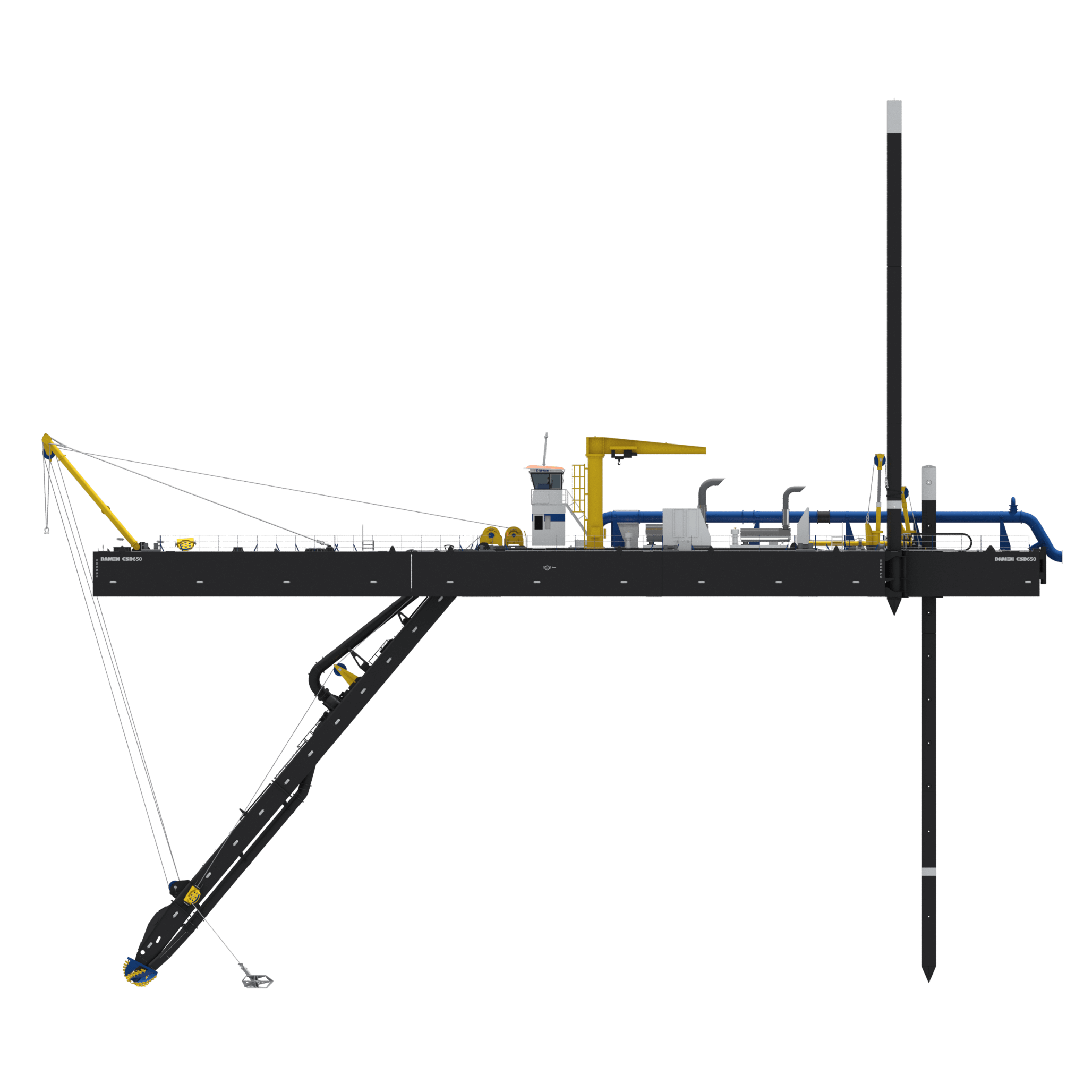

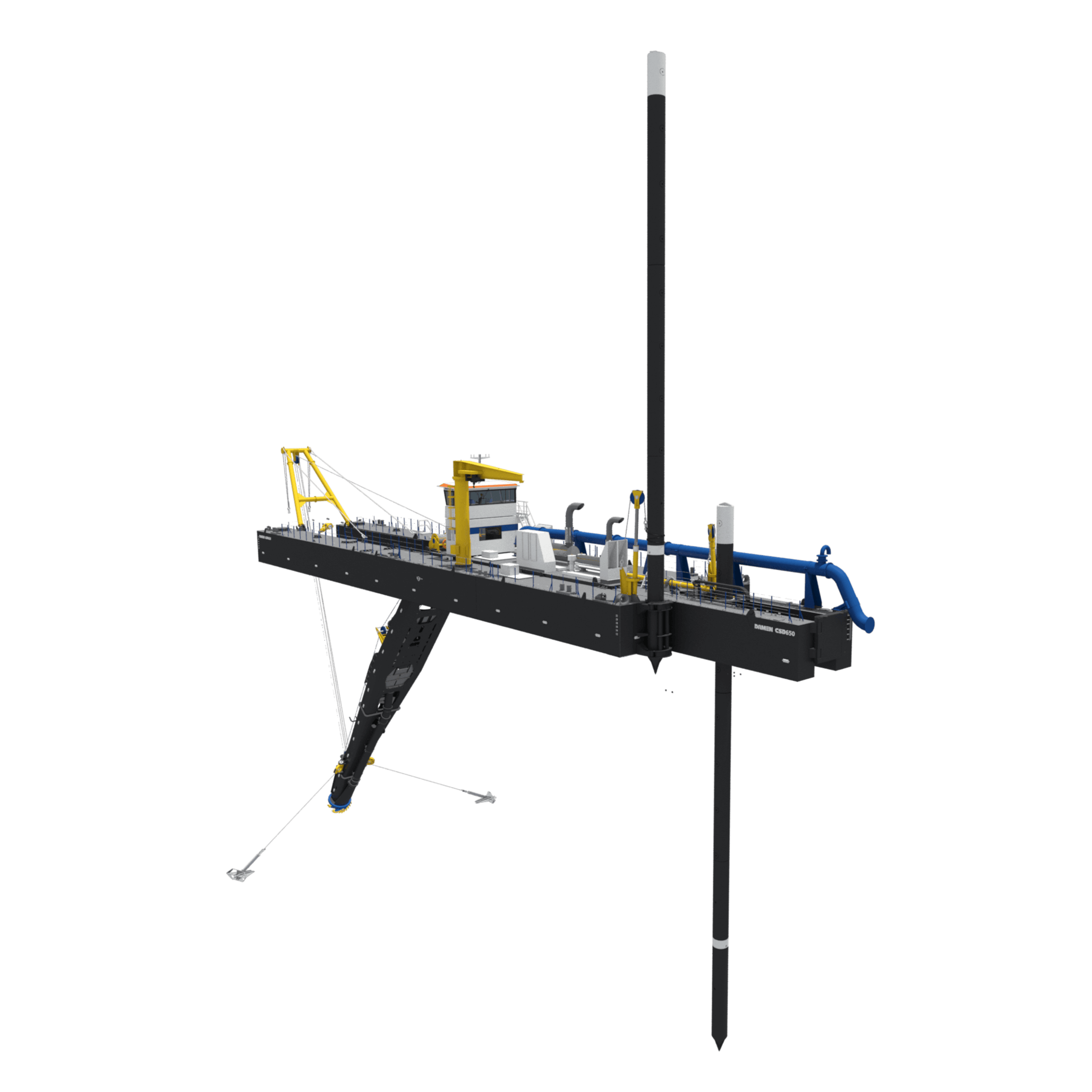

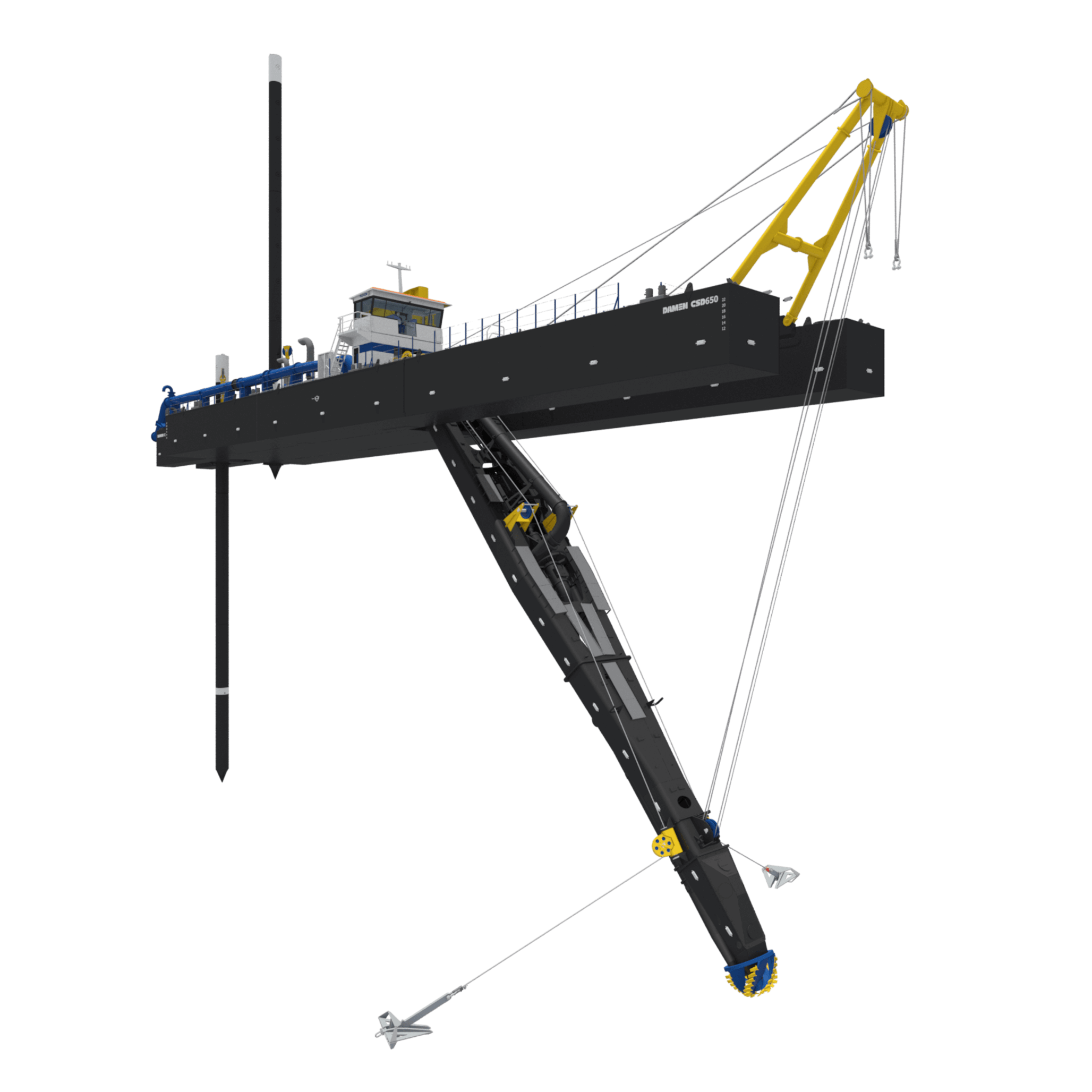

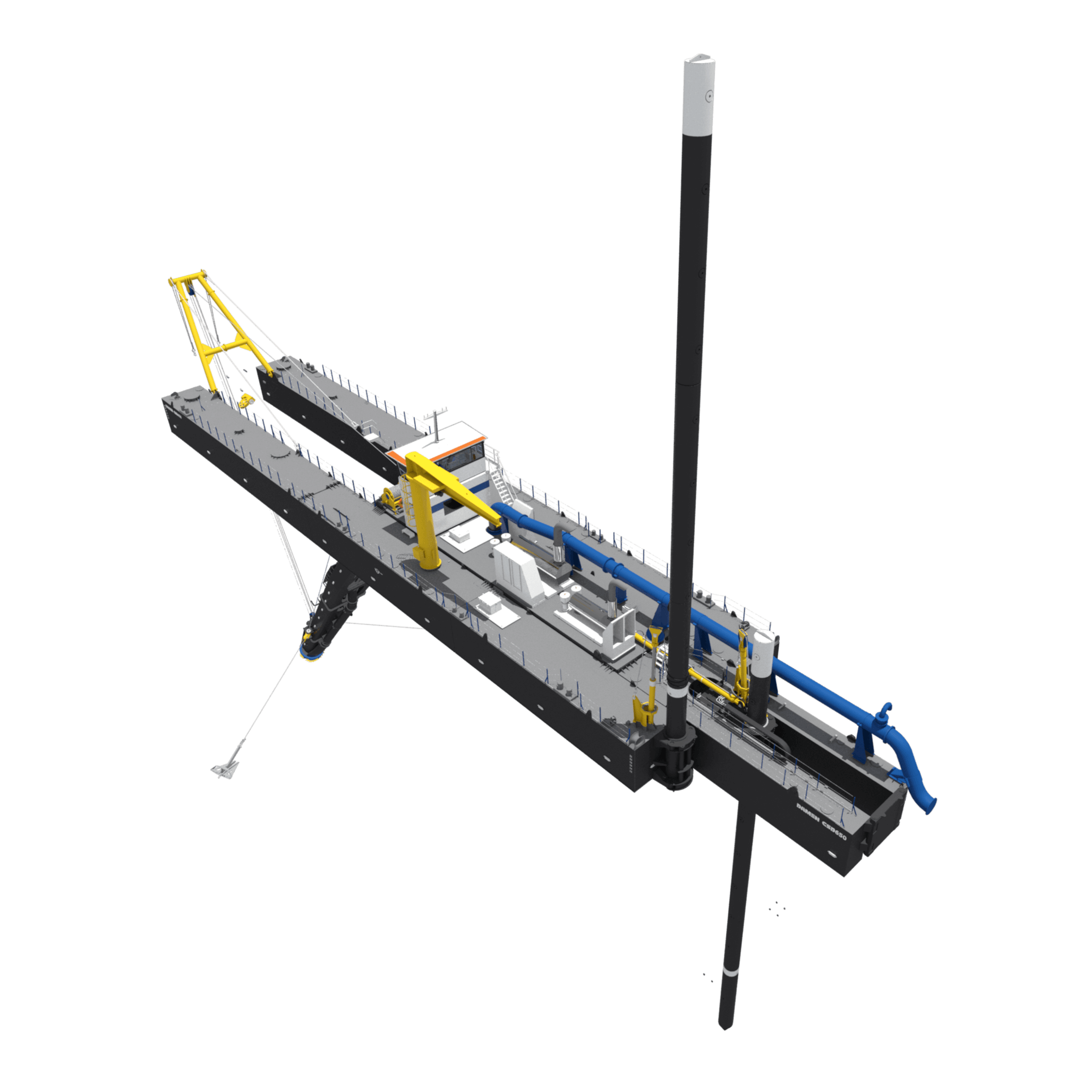

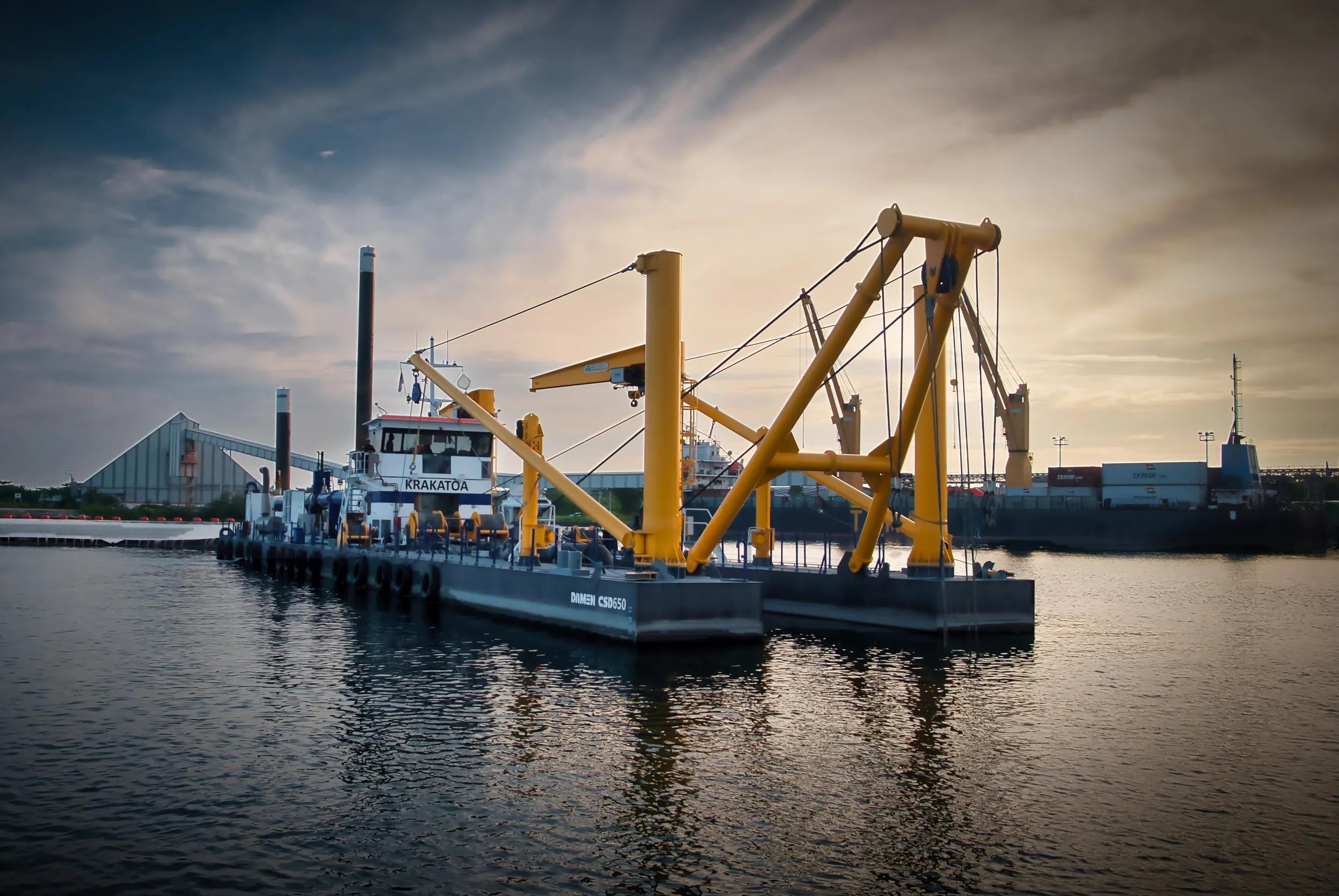

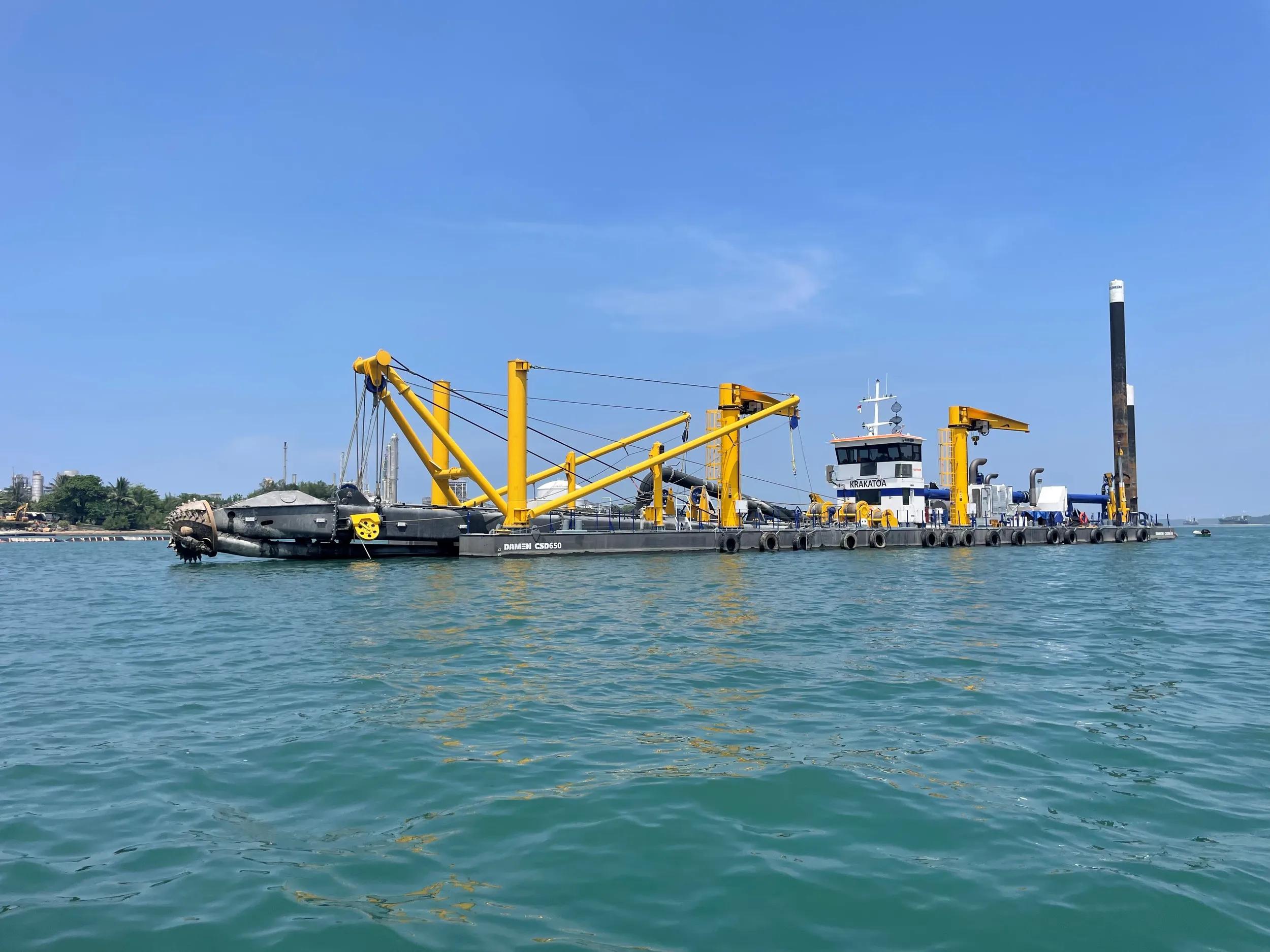

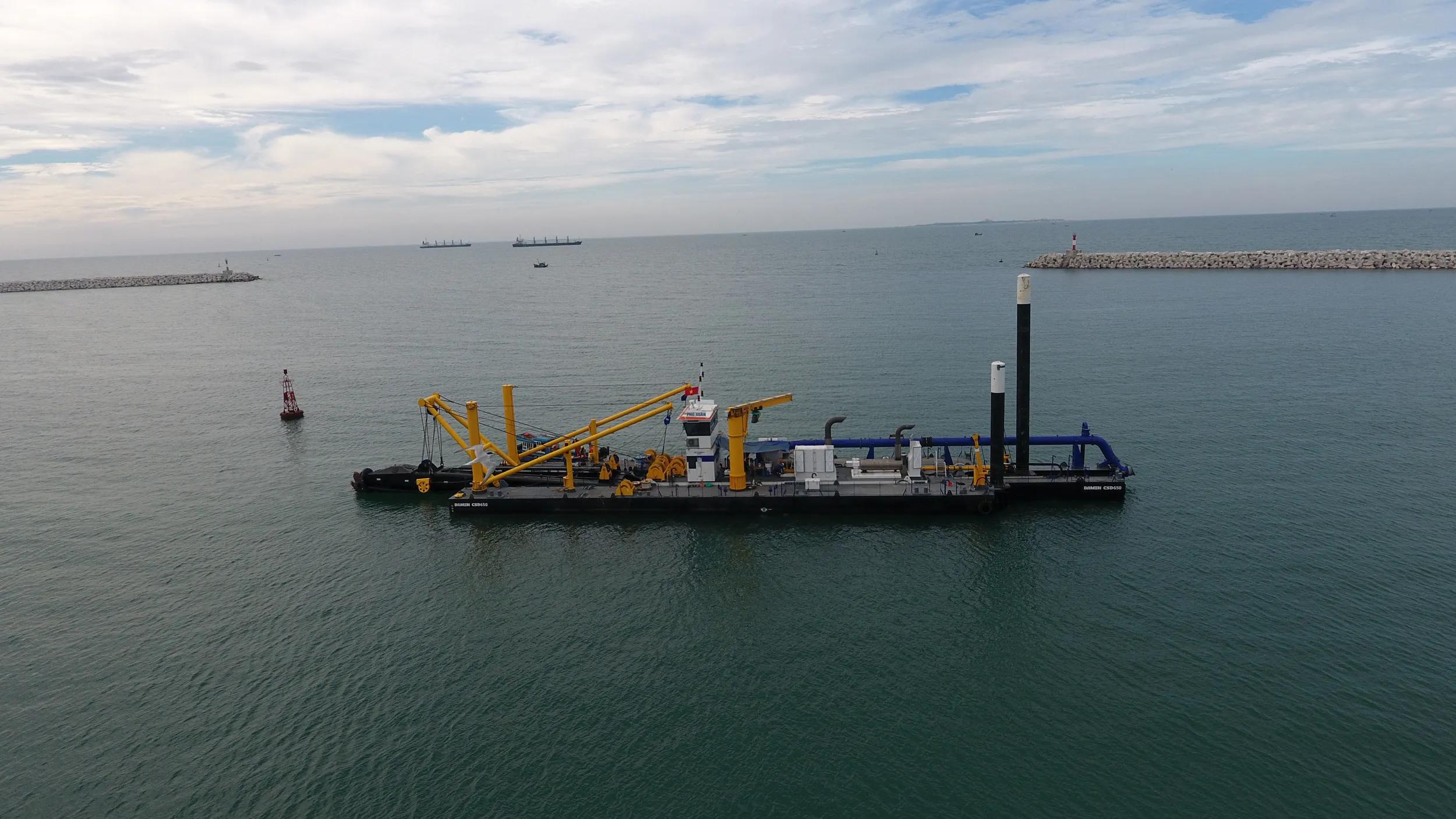

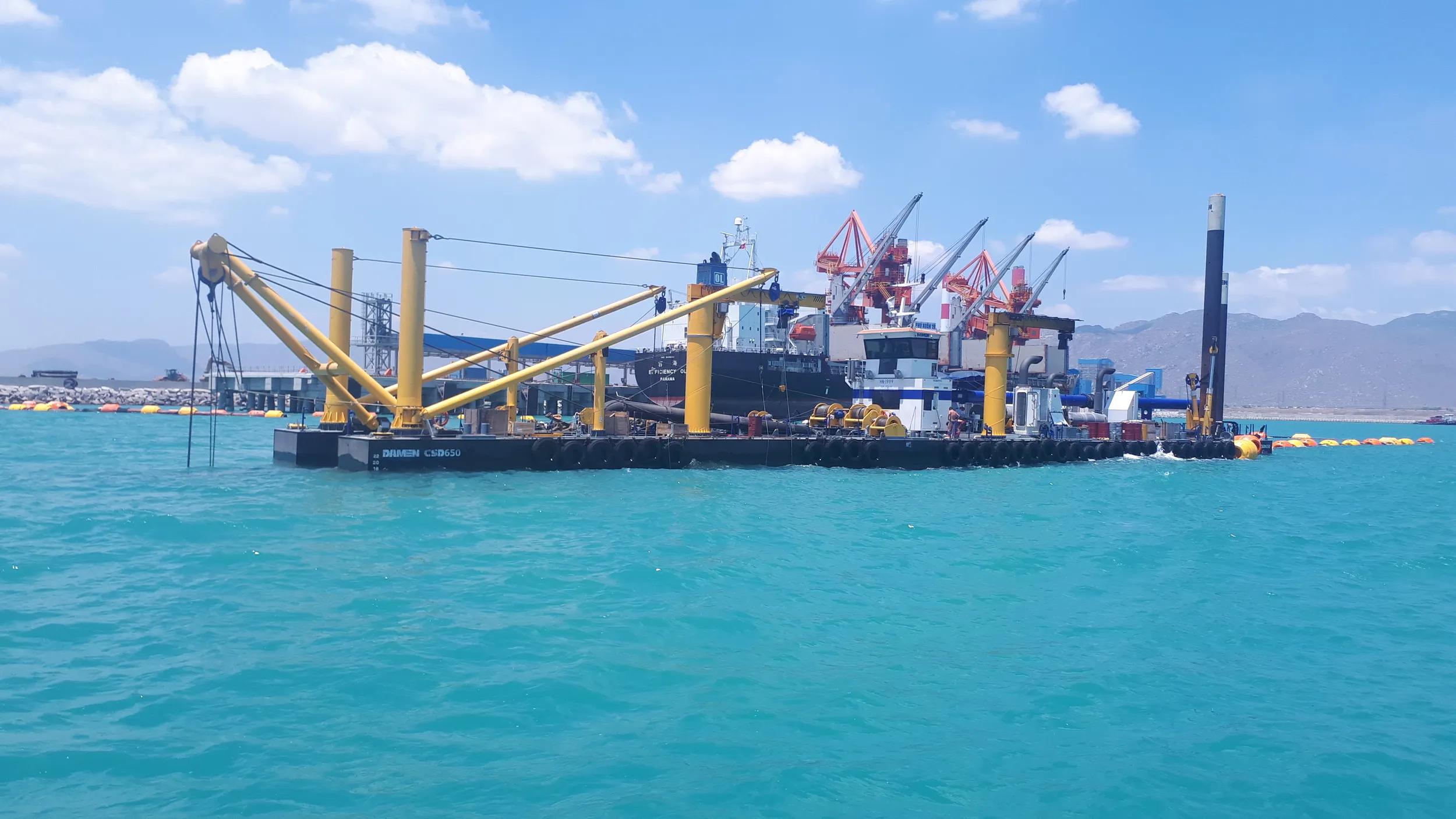

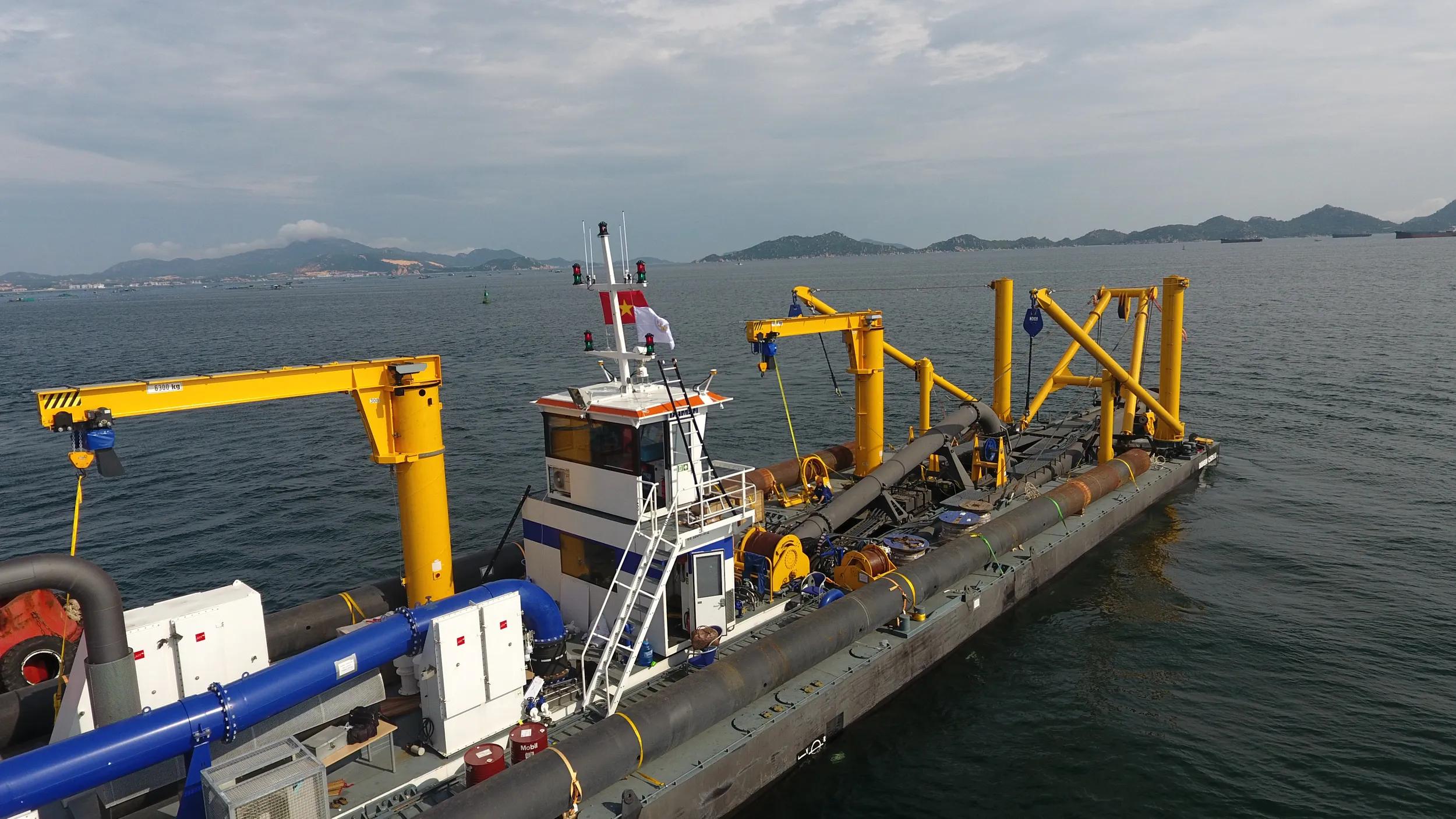

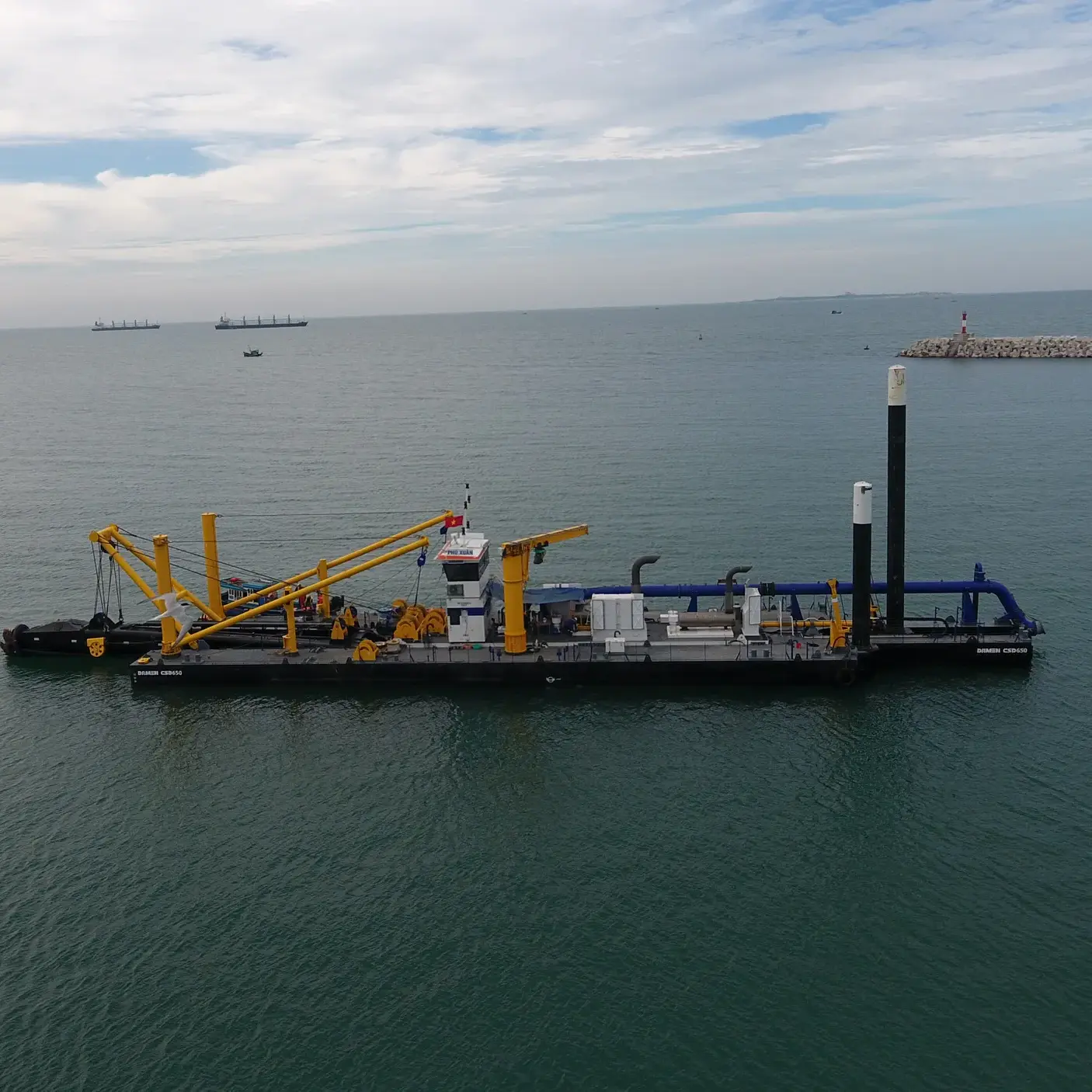

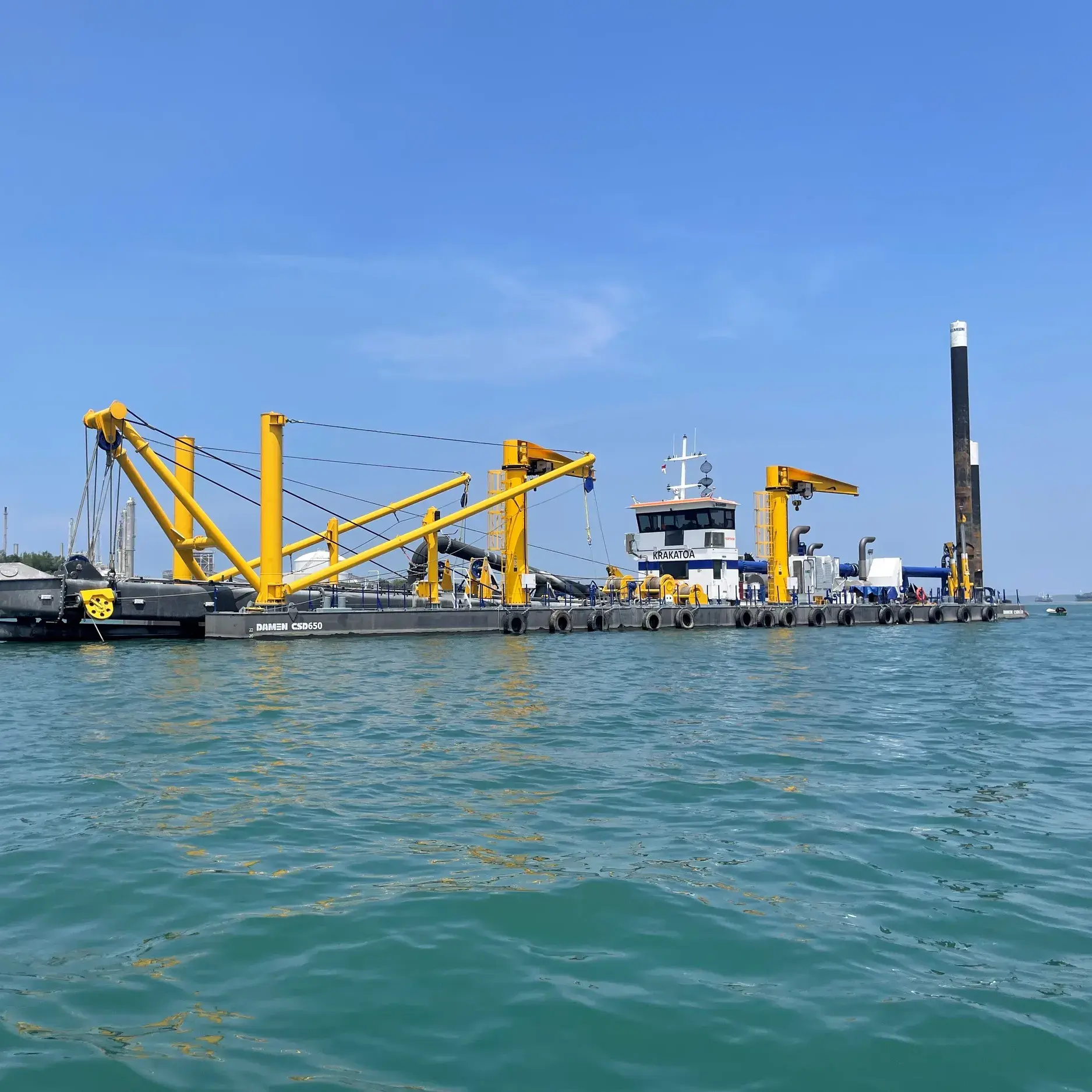

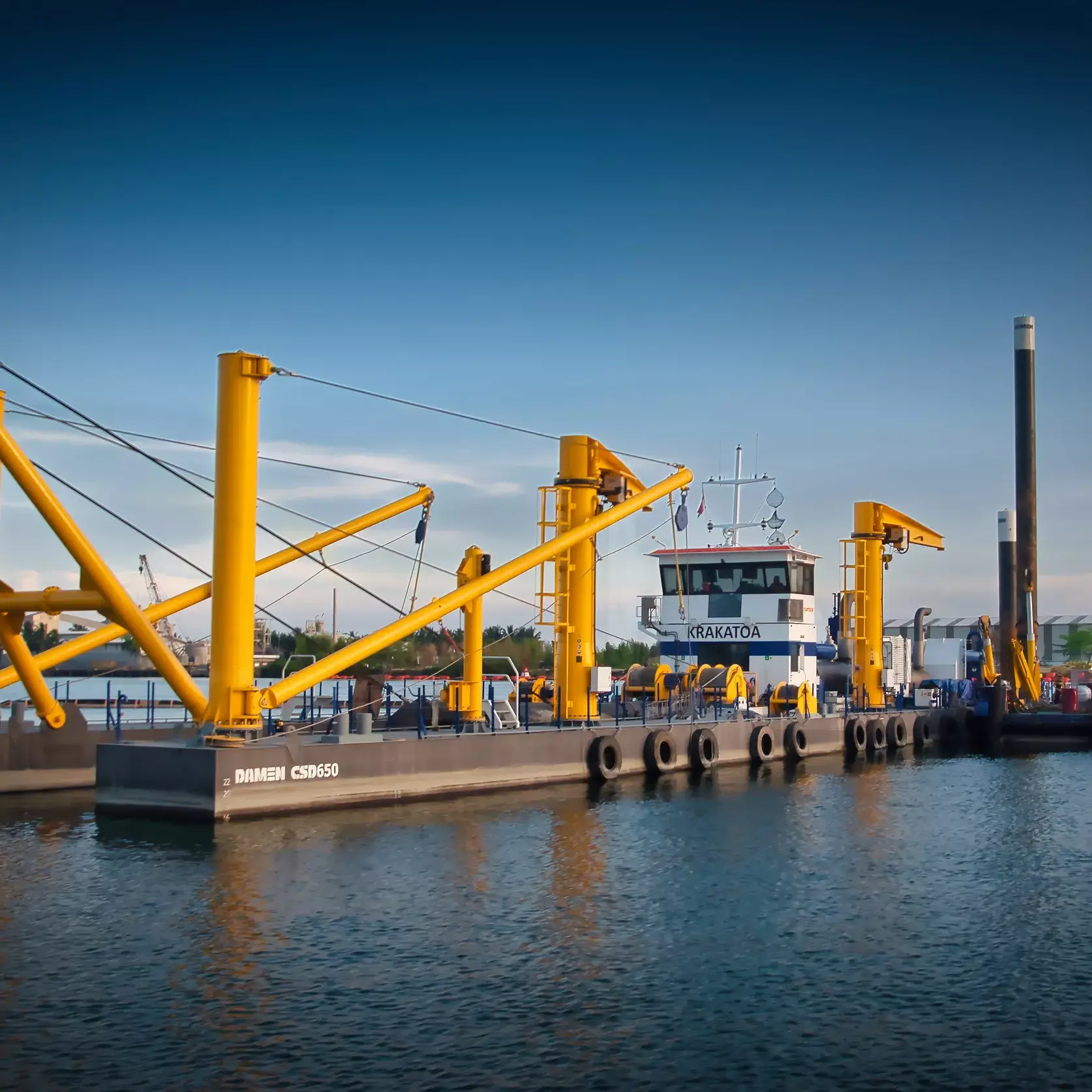

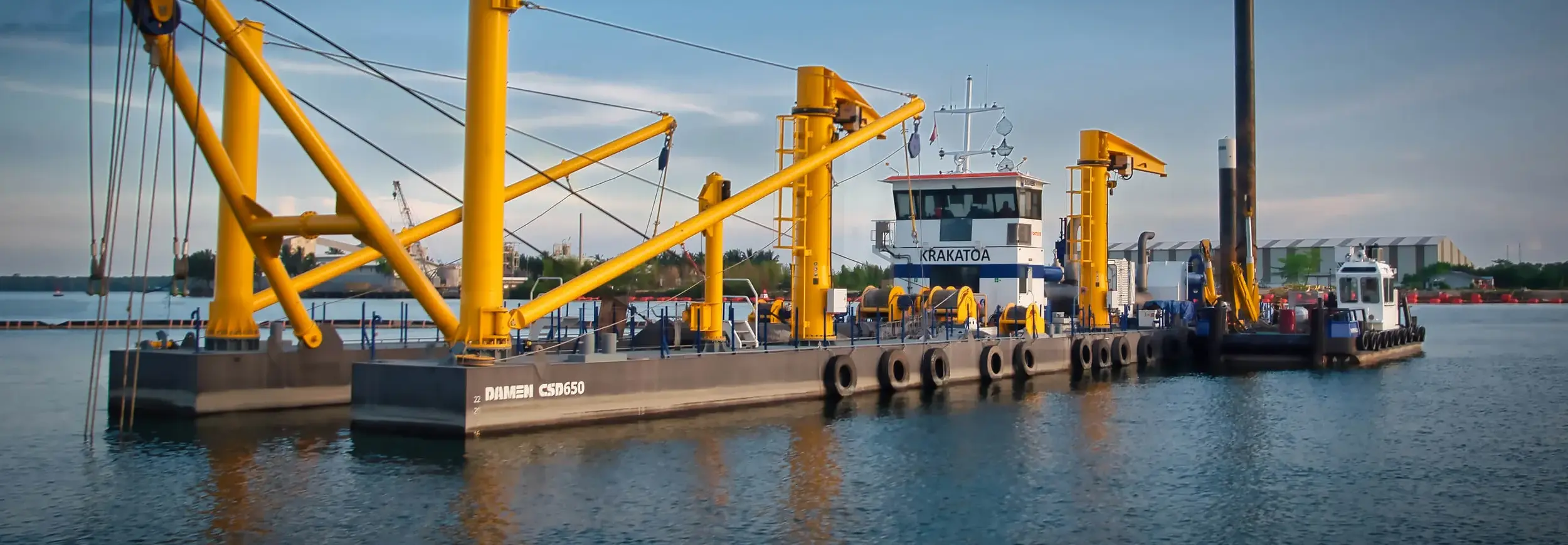

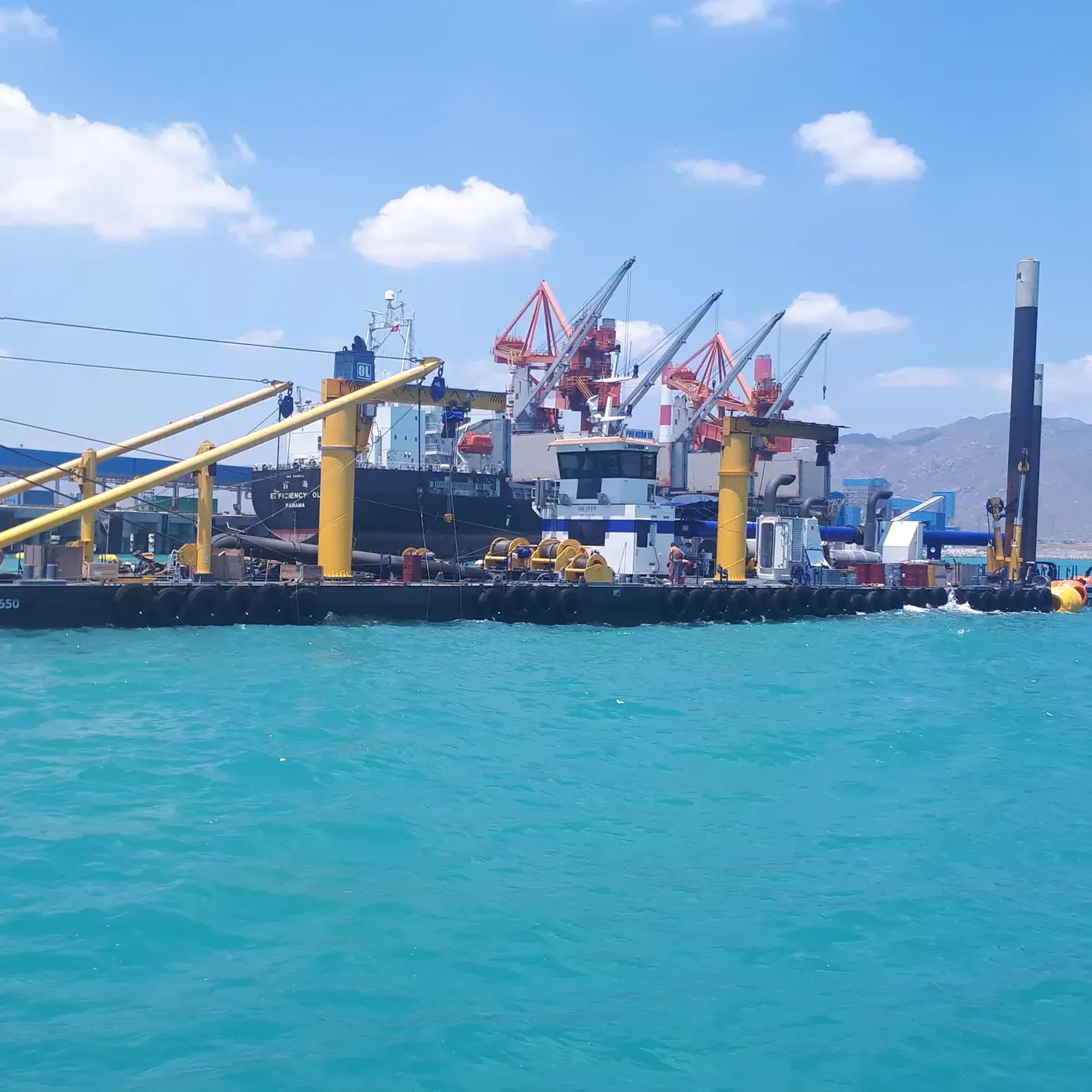

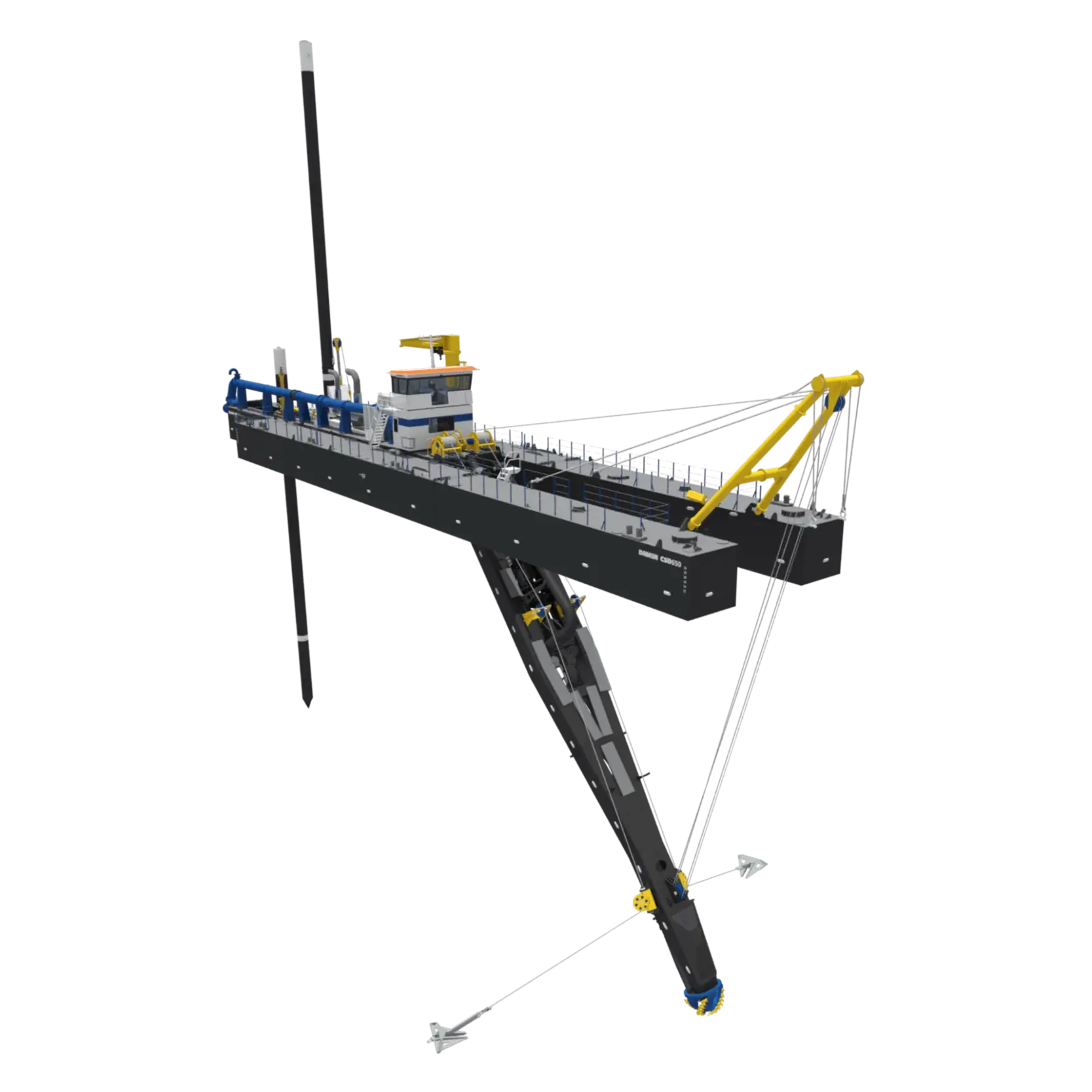

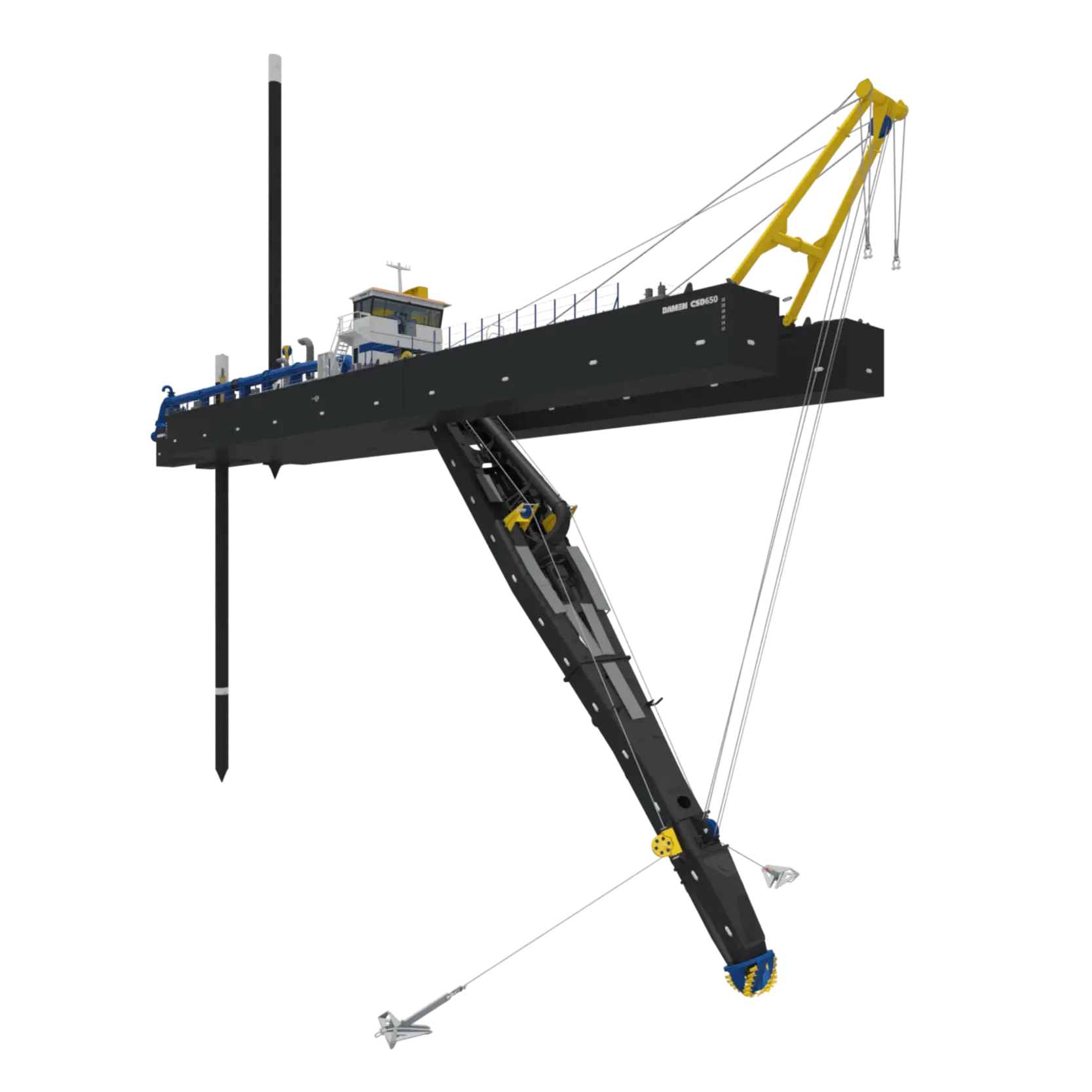

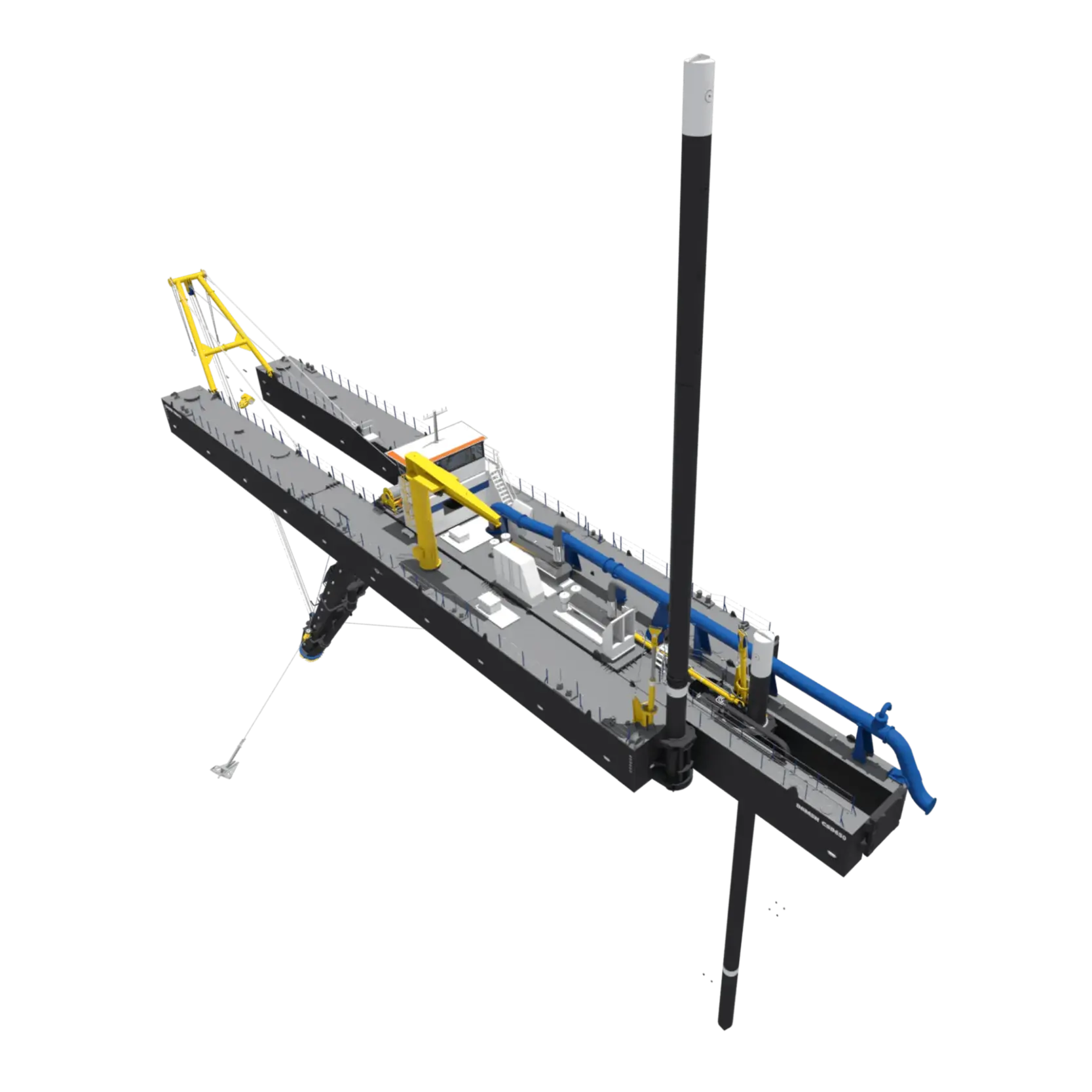

The impressive dredging depth of -25 m and the production of some 7,000 m3/h make this standard cutter suction dredger the jumbo of the current CSD standard series. This cutter dredger has been designed for harsh operational conditions, where it has proven its added value for over a decade. The dismountable dredger can be transported by truck or towed completely assembled to its project. Smart customisation is available to adapt the stationary dredger to capital dredgingmaintenance dredging or mining operations, fulfilling all operators’ requirements.

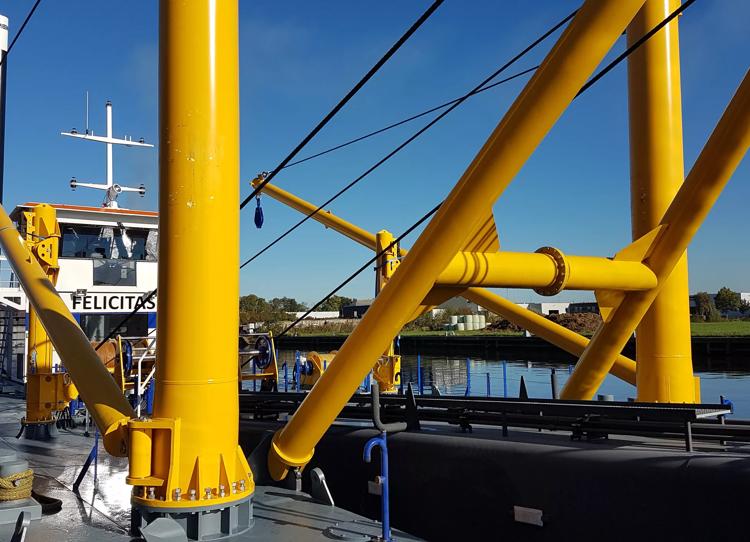

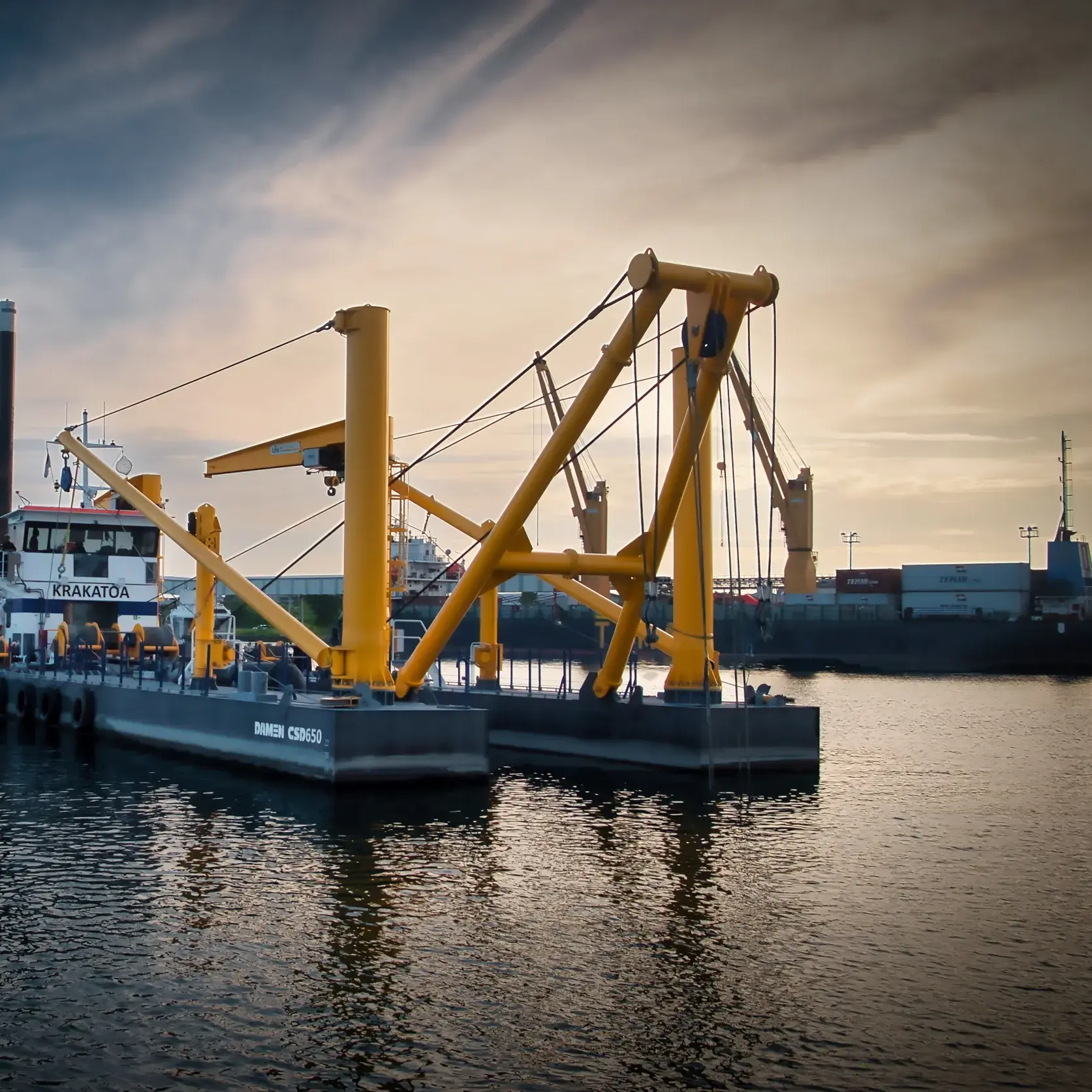

- Anchor booms

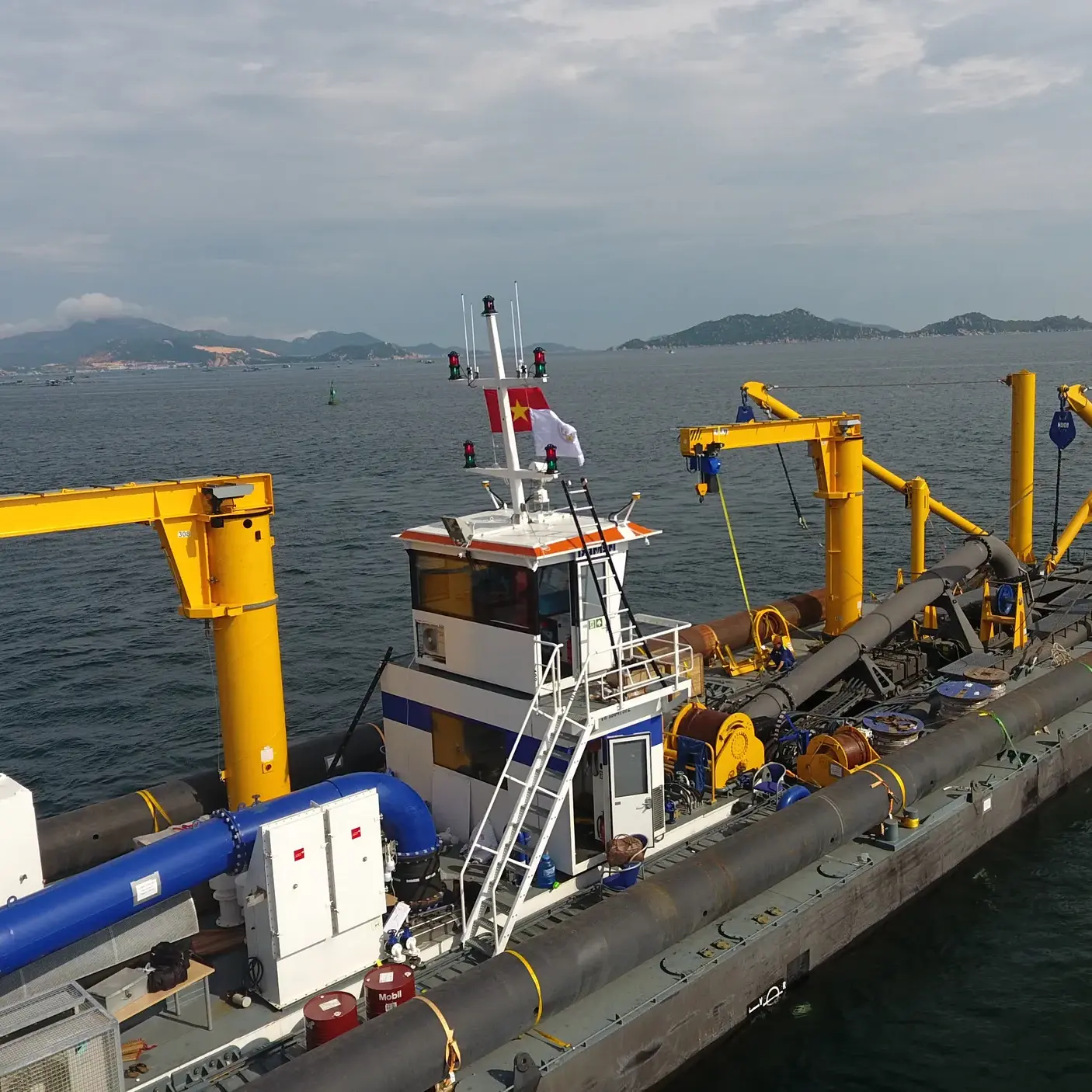

- Deck crane

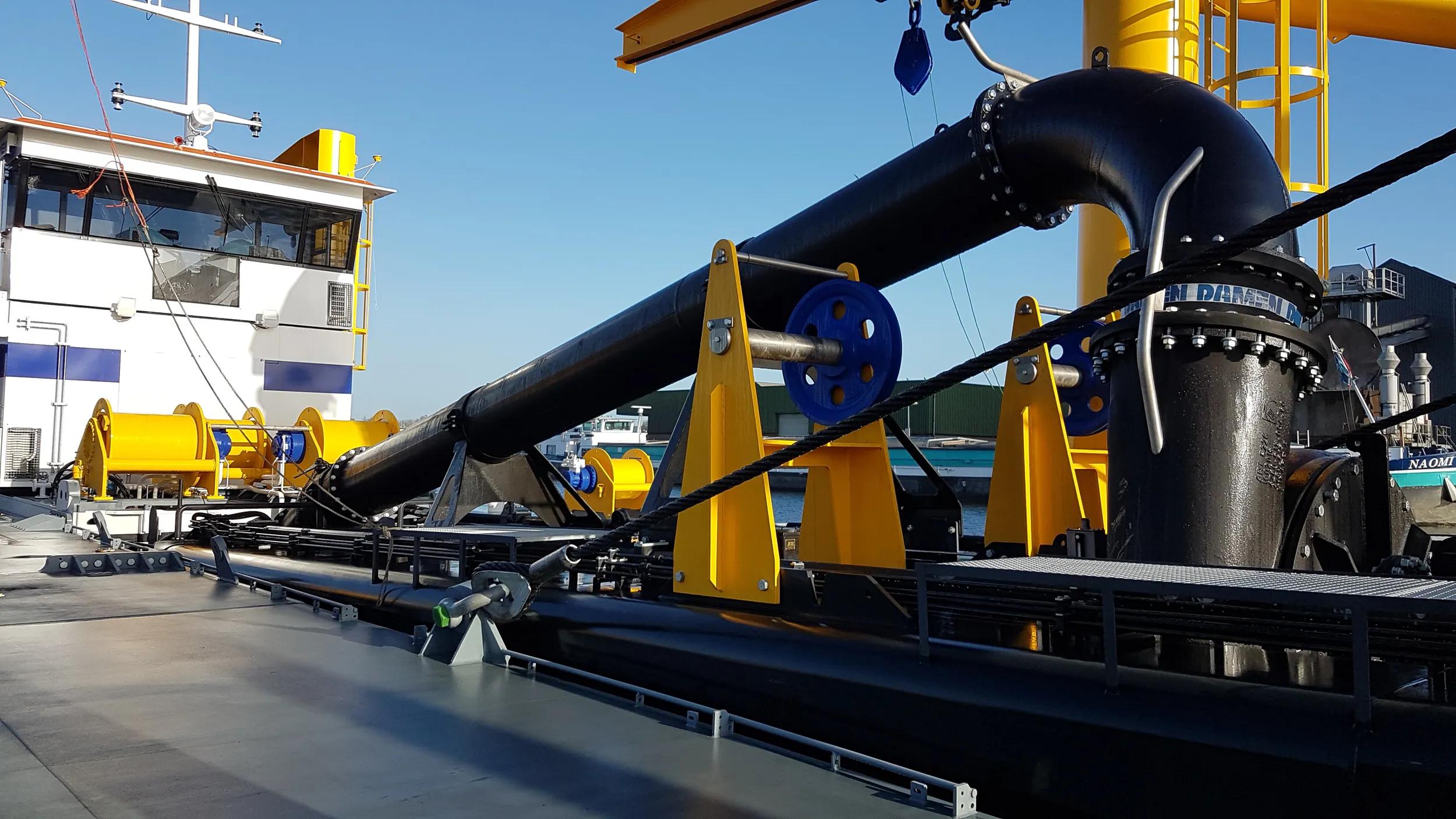

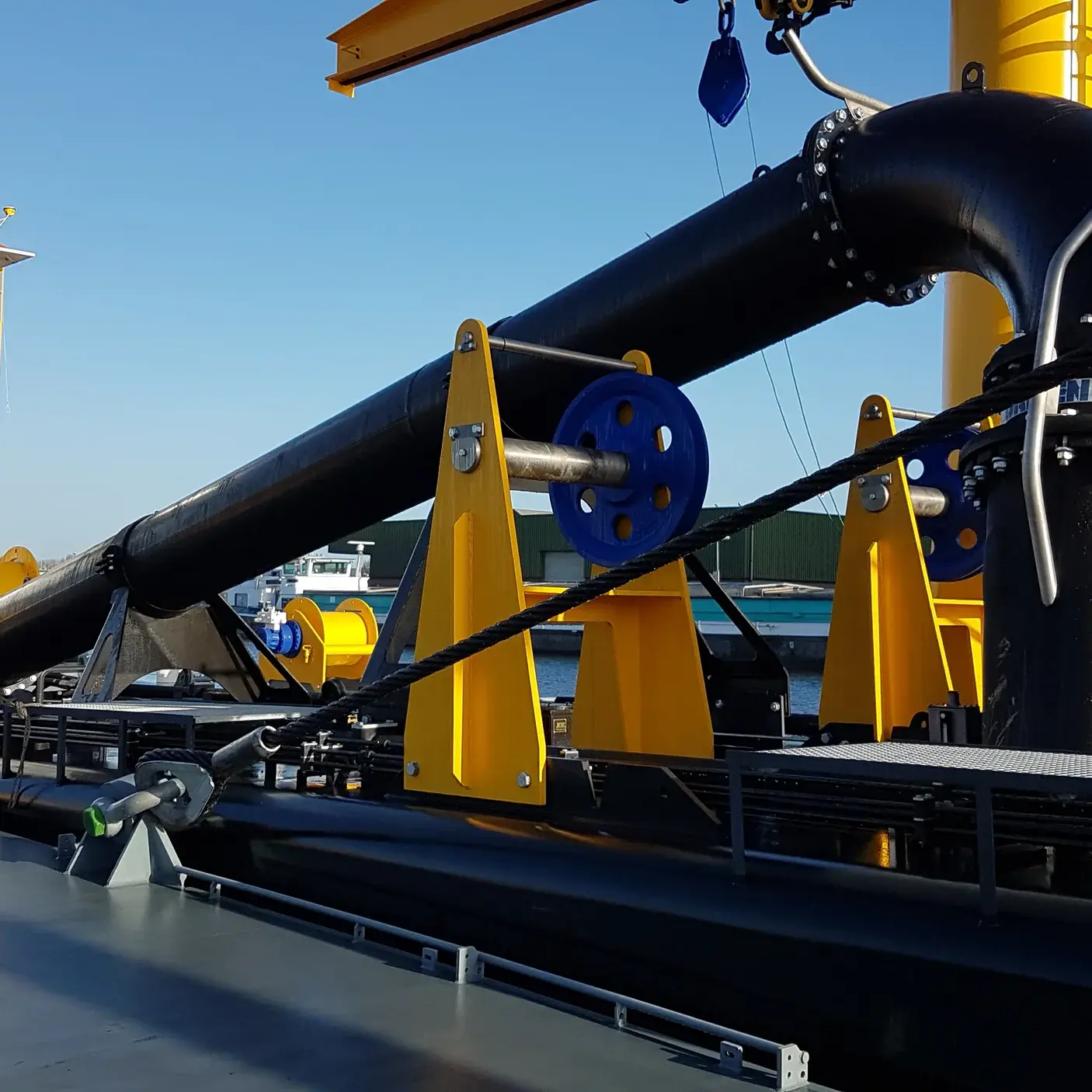

- Swivel hose
- Dredge valve
What size of dredger perfectly matches your operation? Configure your own

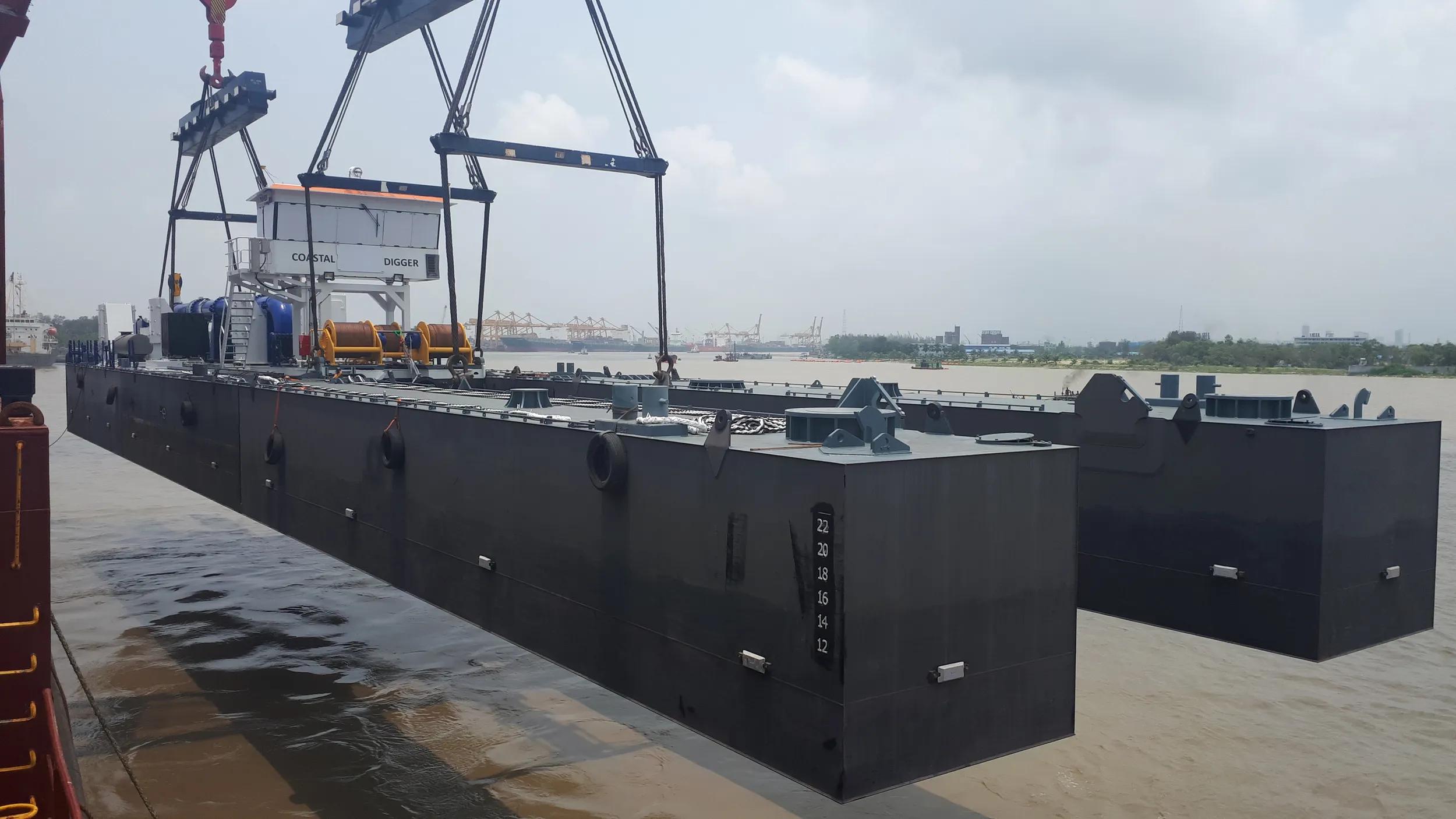

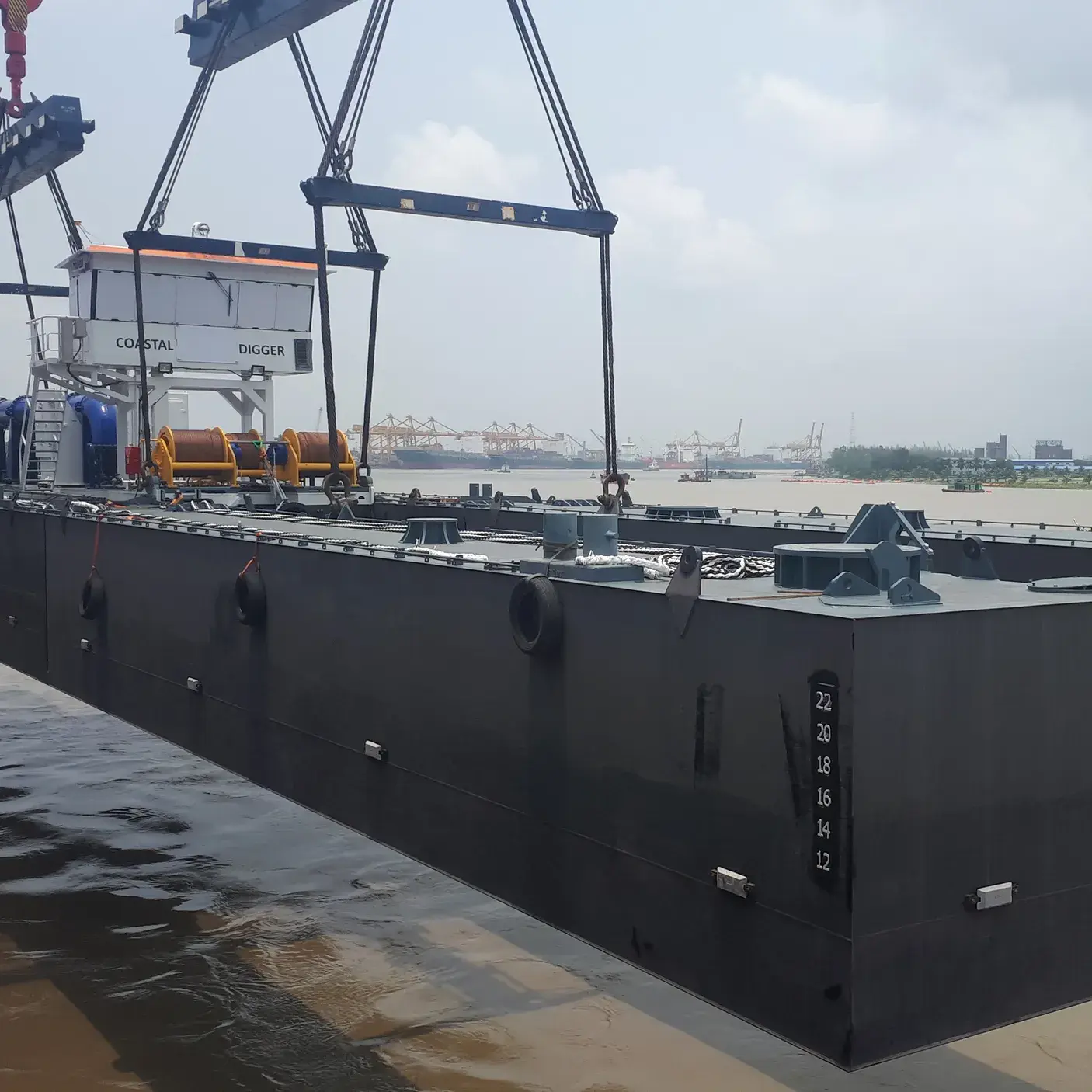

- Dismountable dredger for practical transport
- Easily customised due to available options
- Large swing width maximising operational efficiency
- Powerful cutter unit and wear resistant dredge pump
Key figures
7000
25
3966
650
700
Dredge performance
- Pipe diameter
- 650 mm
- Dredge production
- 7000 m³/h
- Dredging depth
- 25 m
- Swing width
- 71 m
Equipment
- Cutter power
- 700 kW
- Cutter diameter
- 2100 mm
- Fuel capacity
- 87.6 m³
- Total installed power
- 3966 kW
Dimensions
- Length
- 70 m
- Draught
- 1.65 m
- Air draught
- 8.4 m
- Total weight
- 645 t
Do you want to know more?
Compare the different CSD types
| Production (m³/h) | Dredging depth (m) | Power (kW) | Pipe diameter (mm) | Cutter power (kW) | ||
|---|---|---|---|---|---|---|
| CSD650 -25m | 7000 | 25 | 3966 | 650 | 700 | |
| CSD650 -18m | 7000 | 18 | 2960 | 650 | 700 | |
| CSD600 | 6000 | 16 | 1980 | 600 | 250 |
CSD650 -25m
- Production (m³/h)
- 7000
- Dredging depth (m)
- 25
- Power (kW)
- 3966
- Pipe diameter (mm)
- 650
- Cutter power (kW)
- 700
- Production (m³/h)
- 7000
- Dredging depth (m)
- 18
- Power (kW)
- 2960
- Pipe diameter (mm)
- 650
- Cutter power (kW)
- 700
- Production (m³/h)
- 6000
- Dredging depth (m)
- 16
- Power (kW)
- 1980
- Pipe diameter (mm)
- 600
- Cutter power (kW)
- 250
