CSD600
CSD600

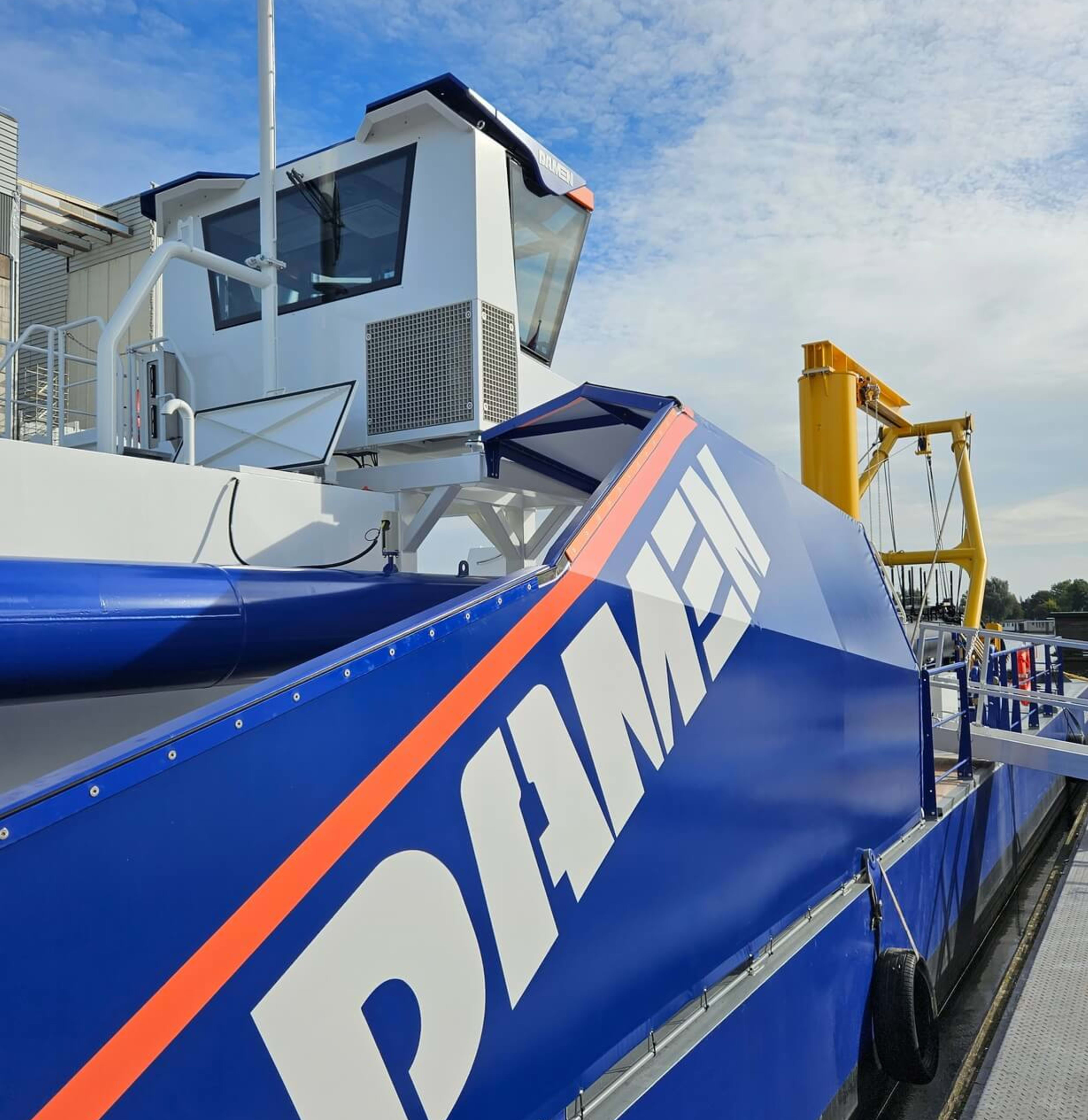

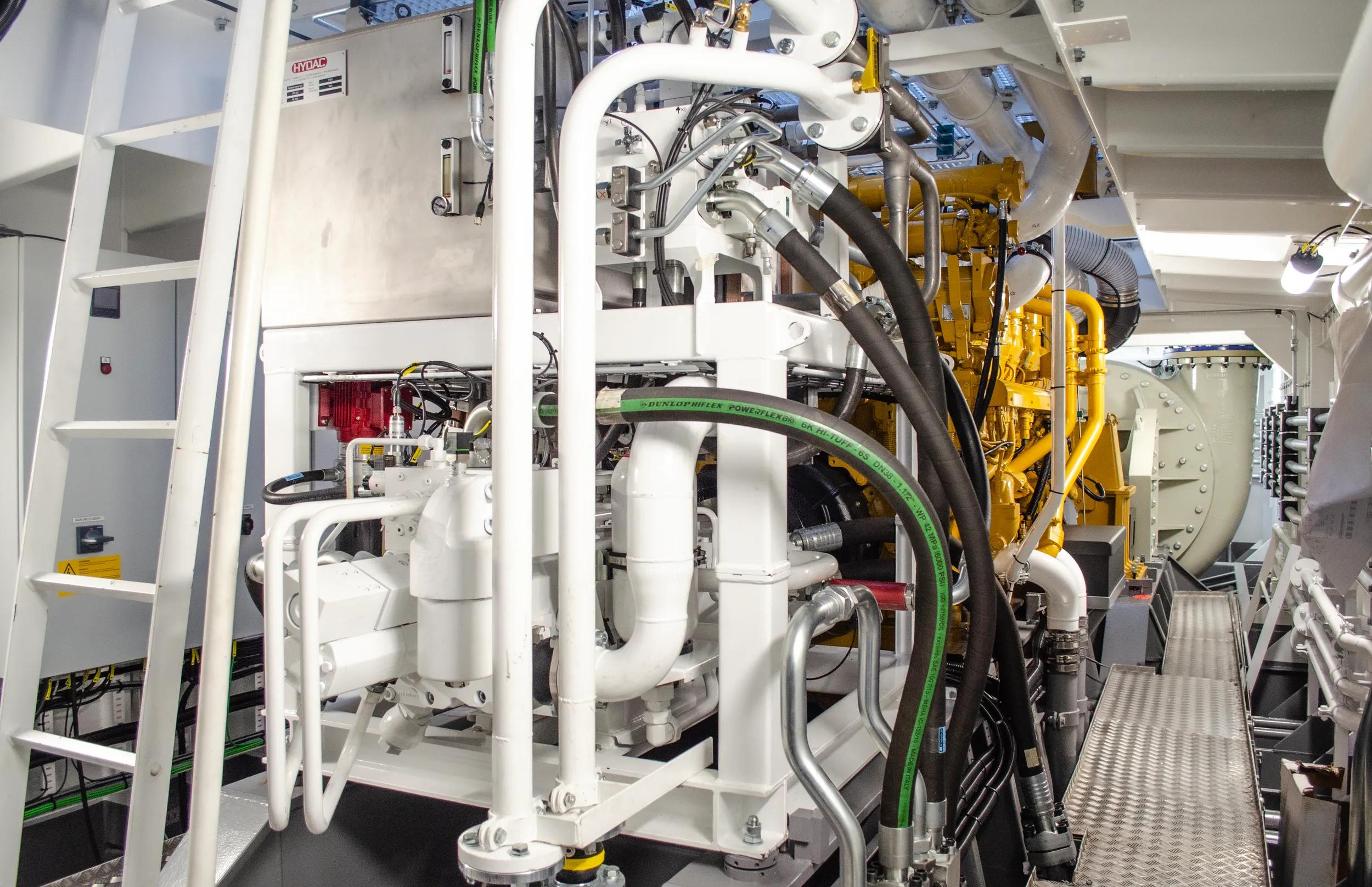

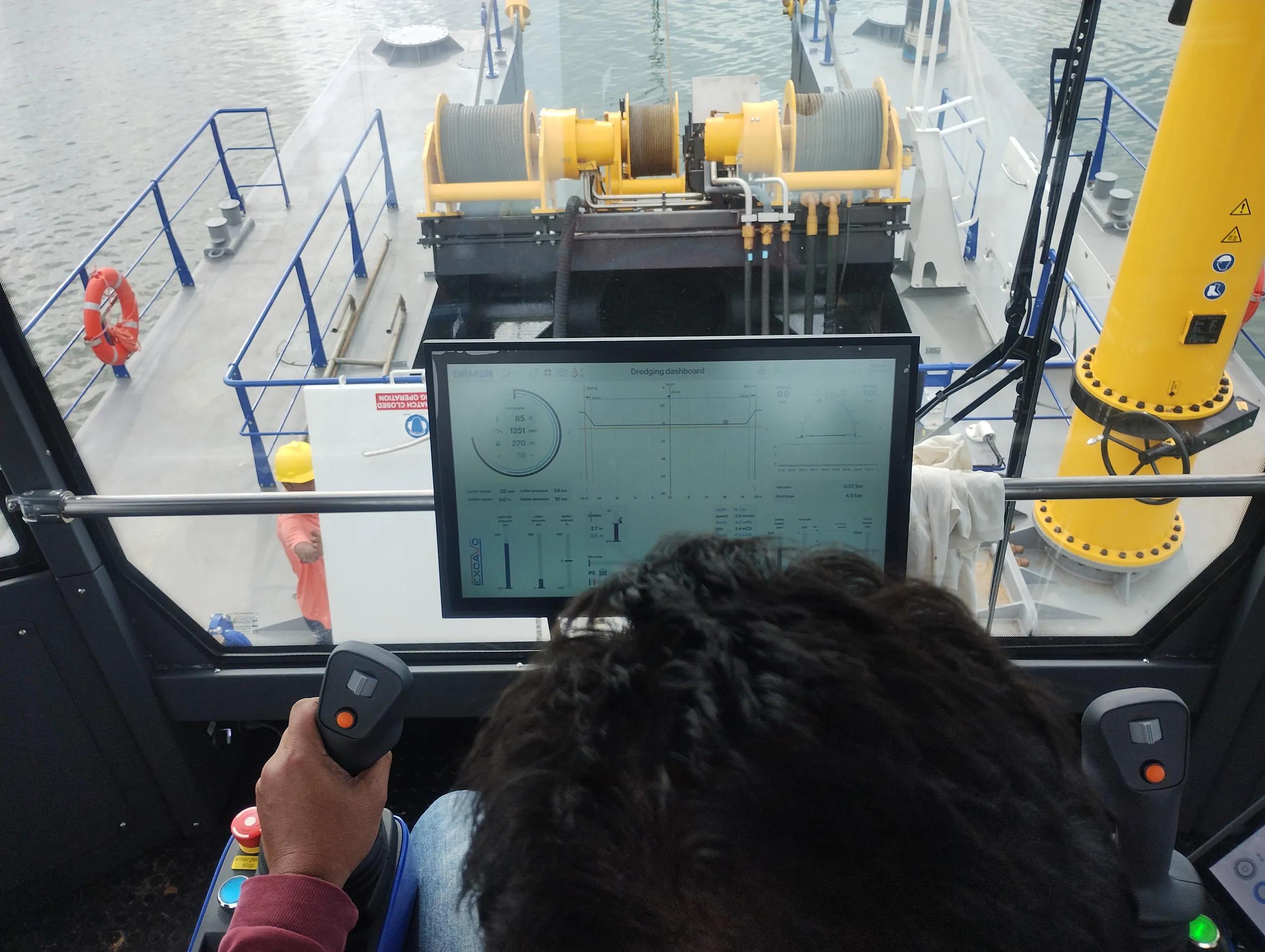

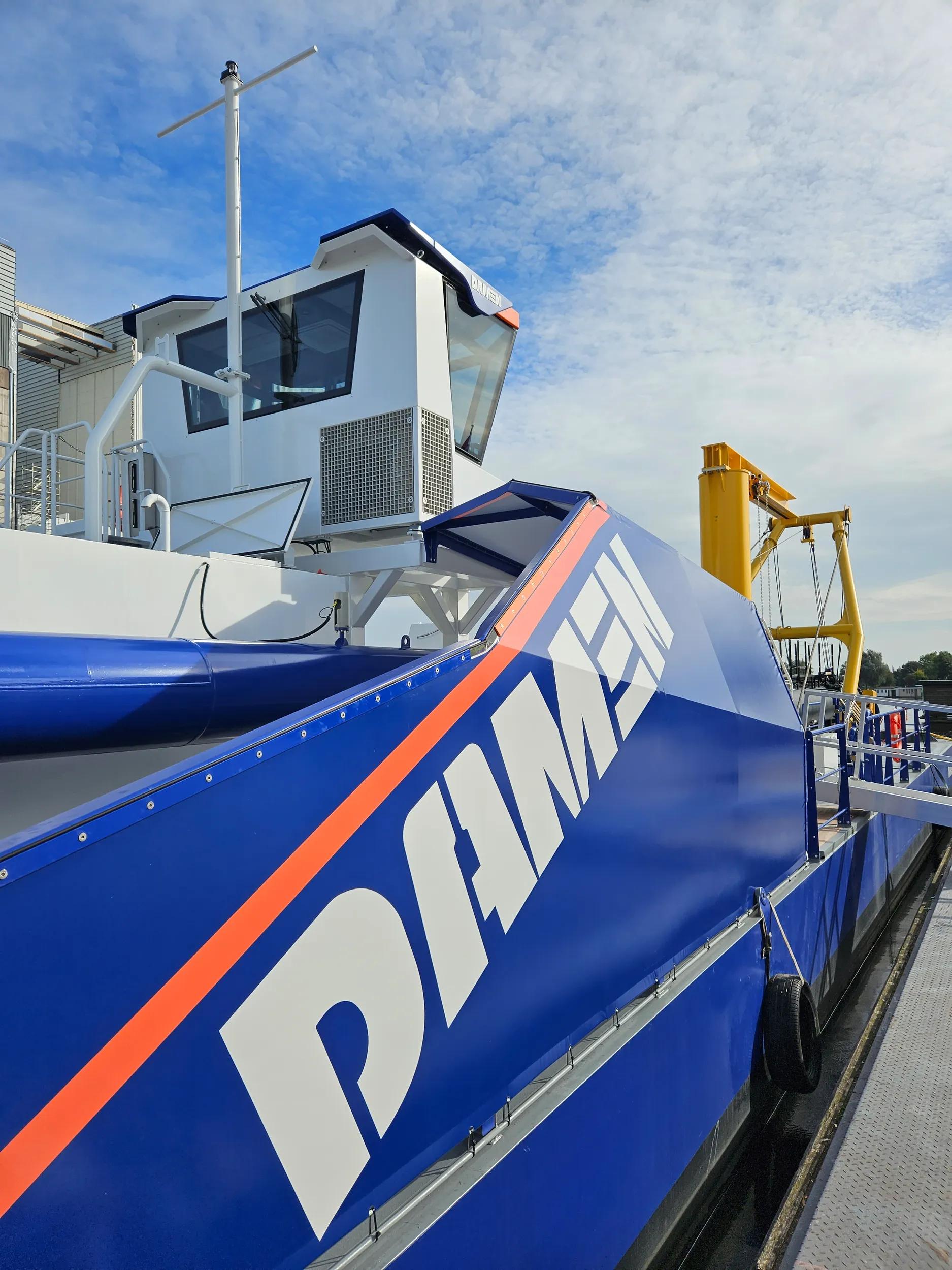

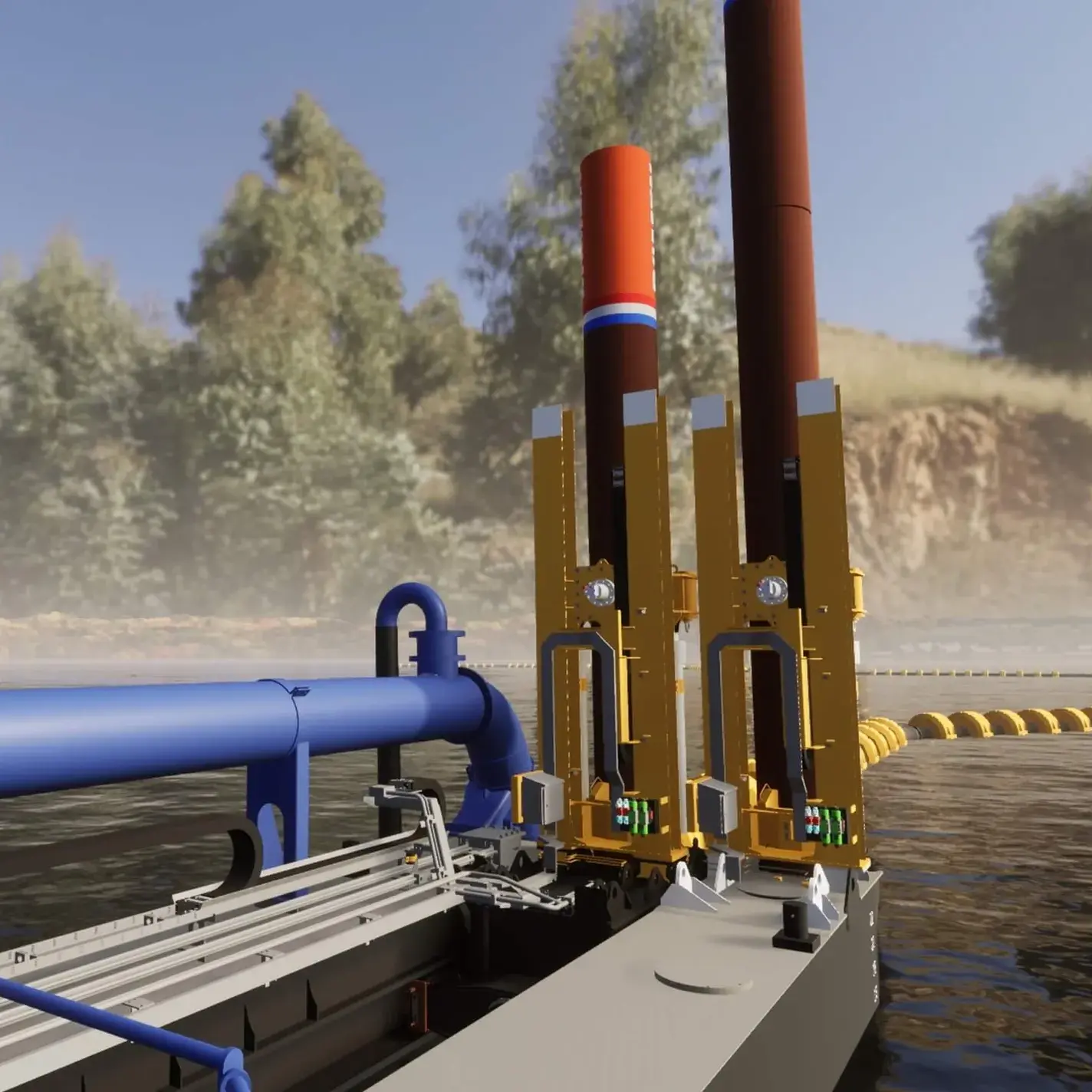

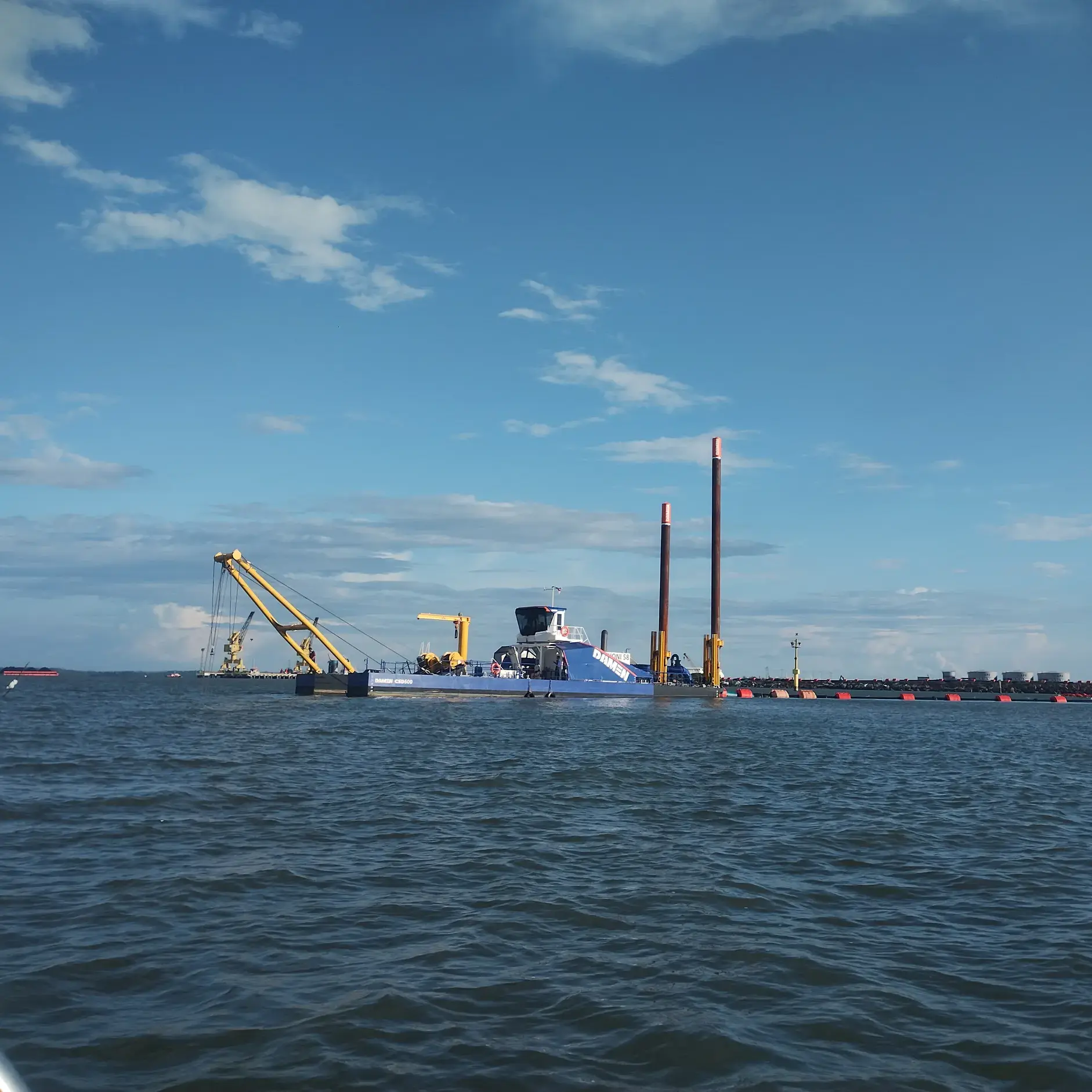

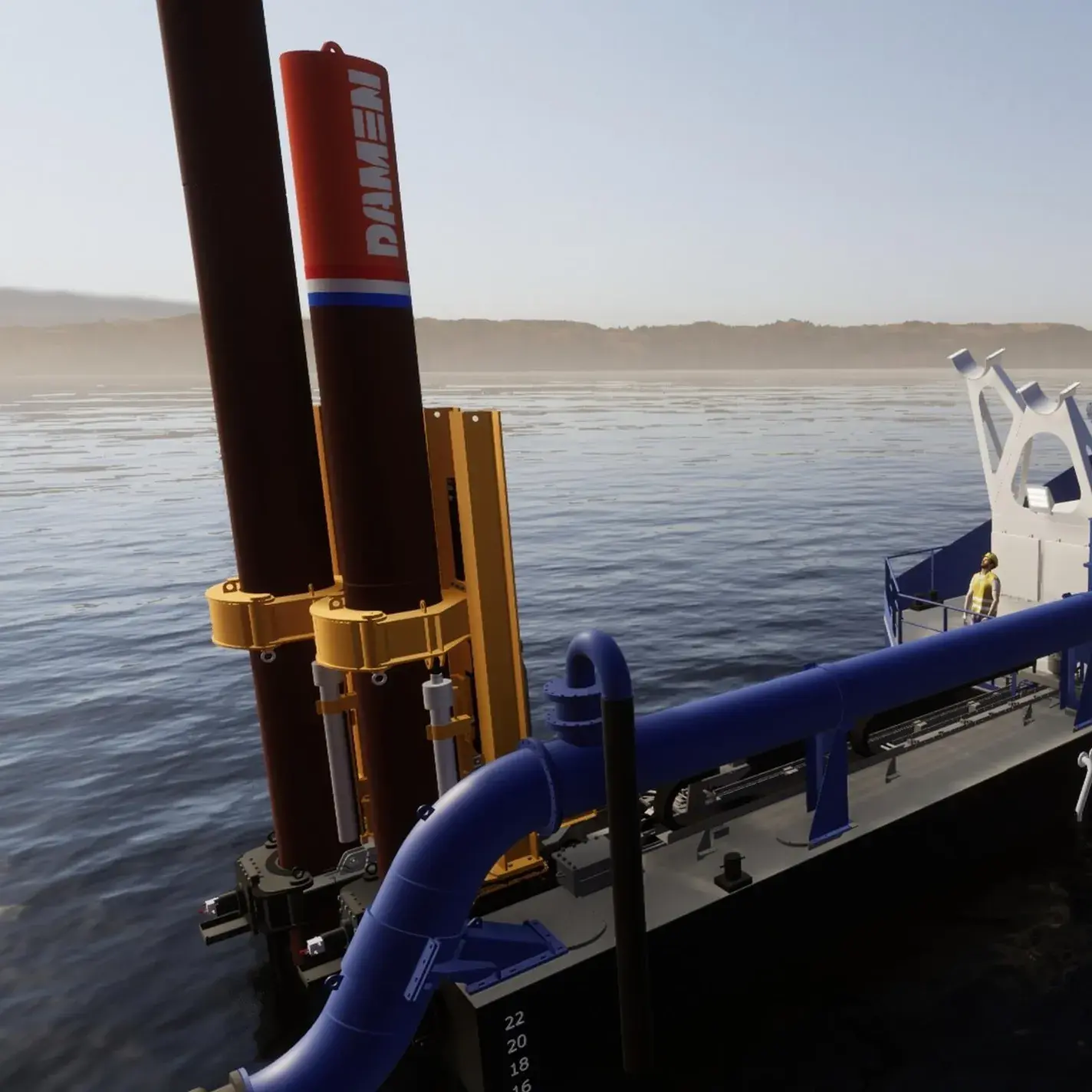

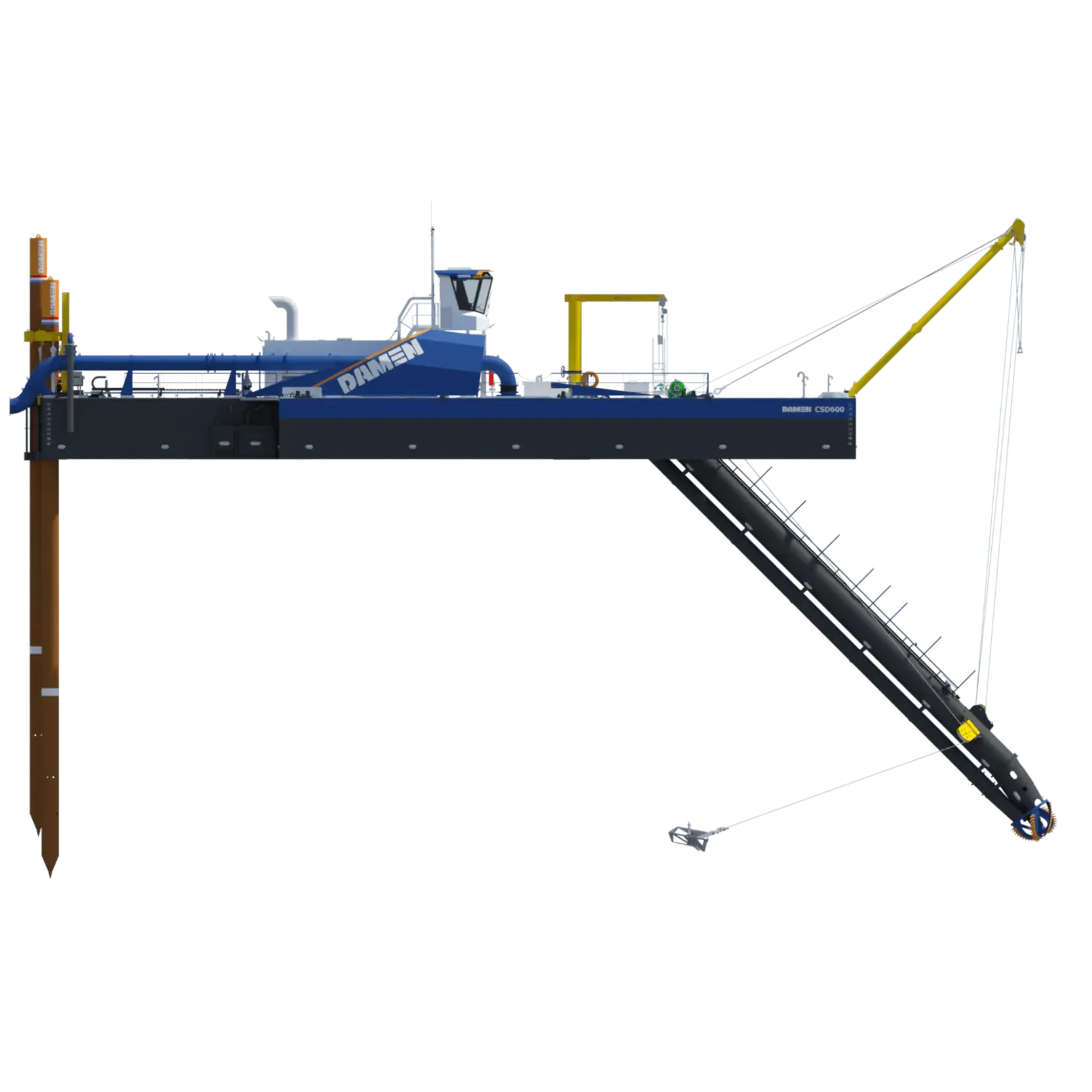

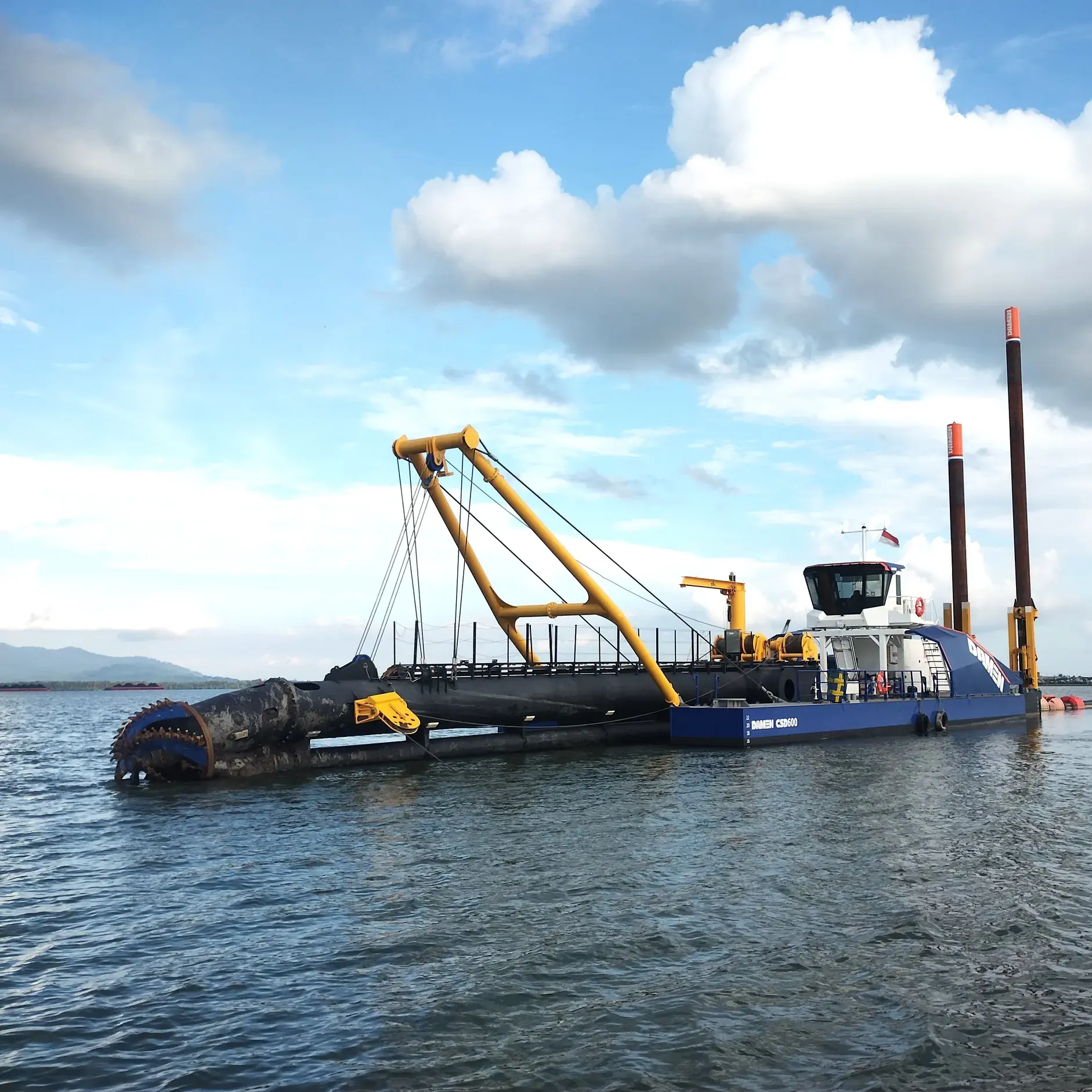

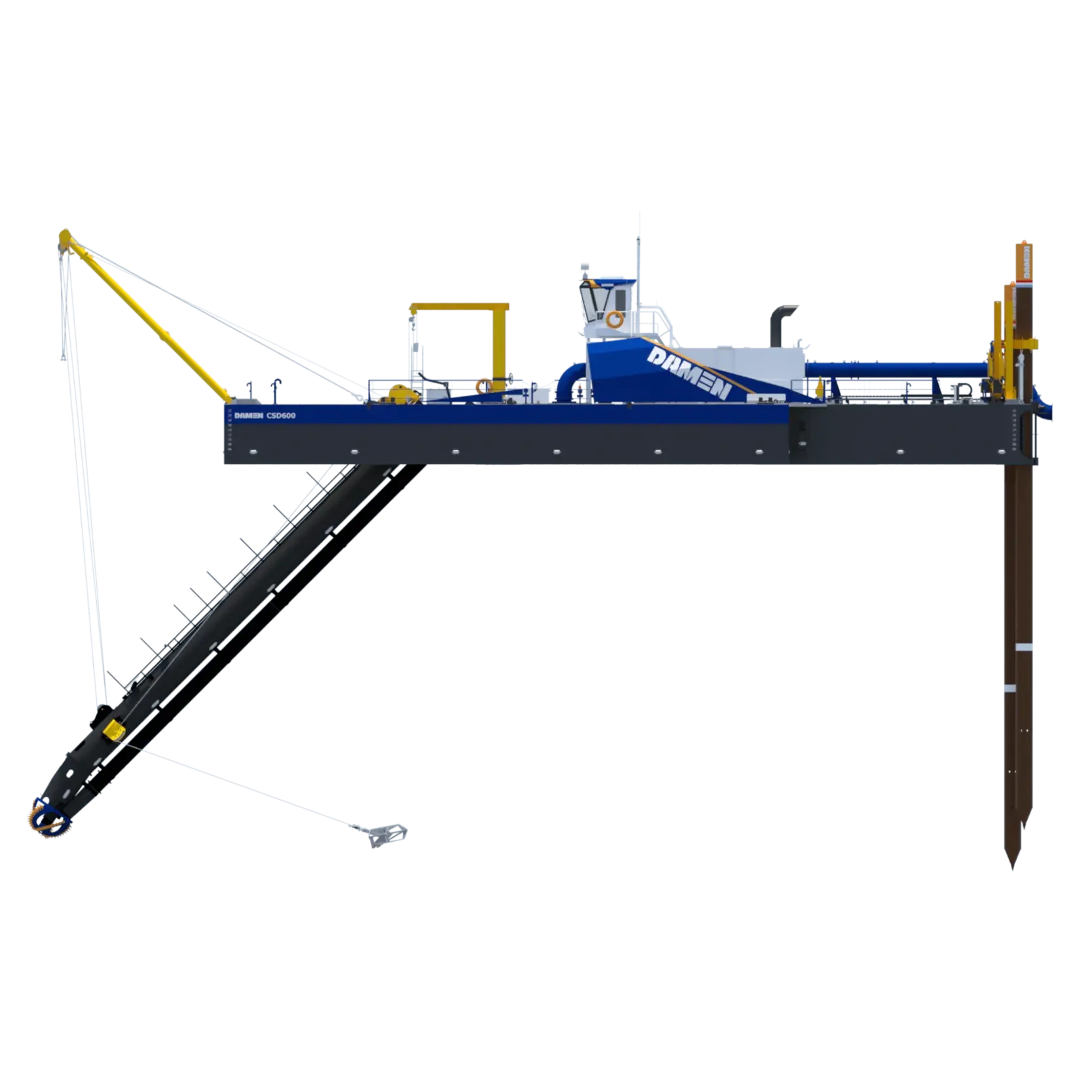

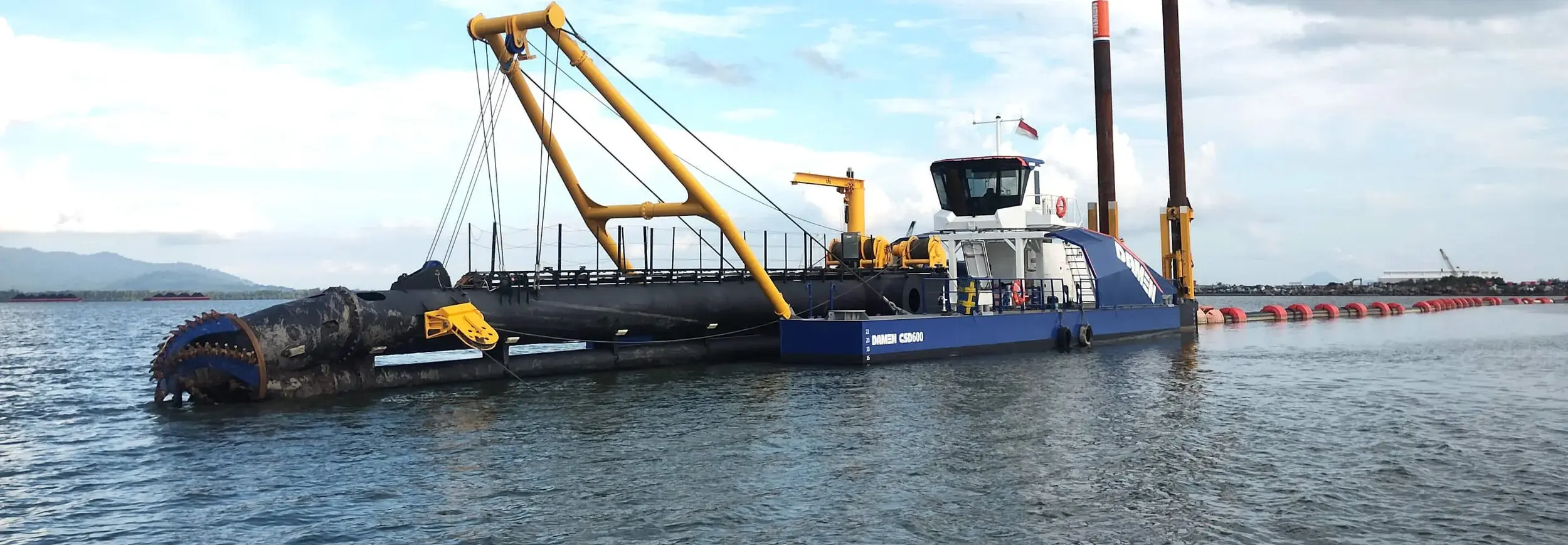

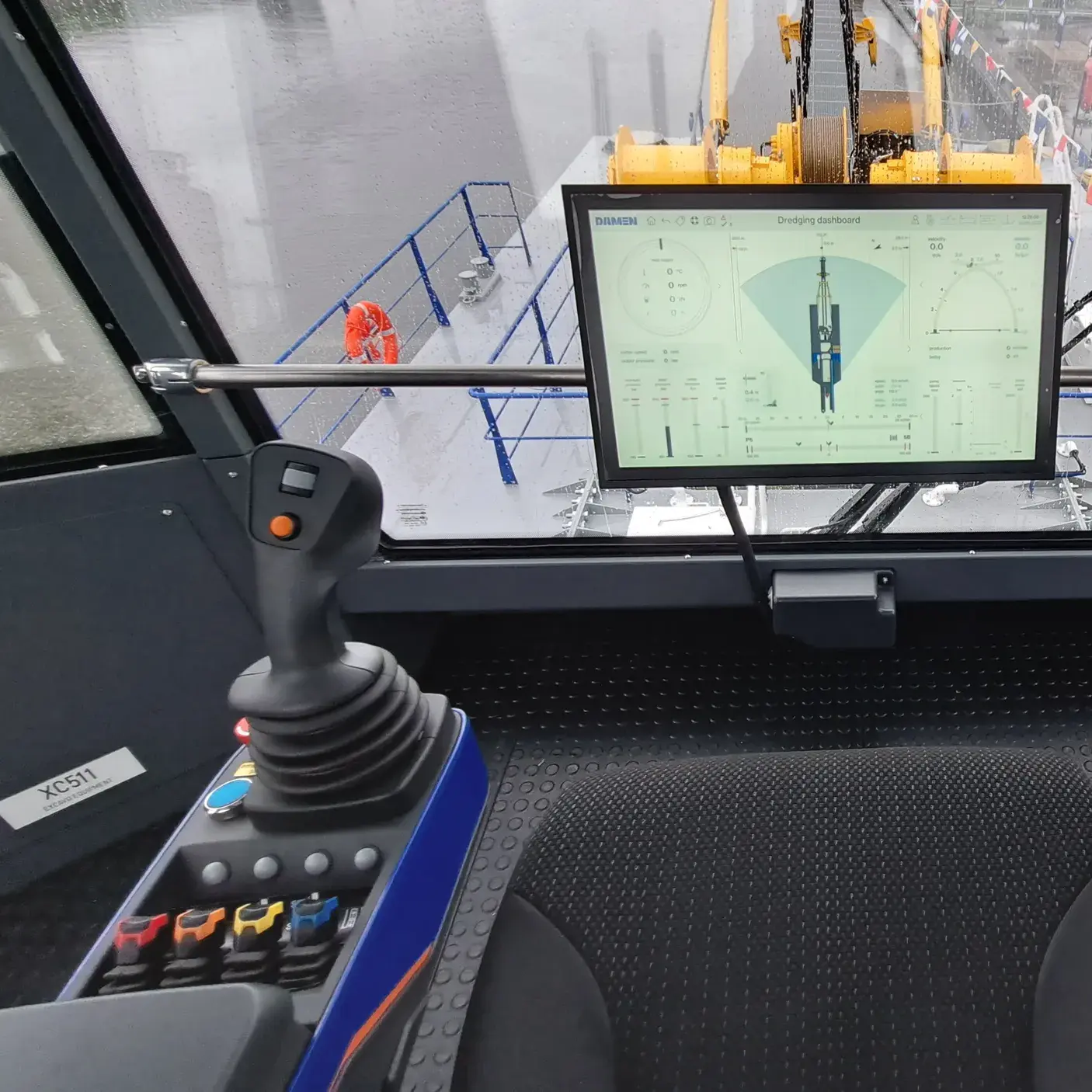

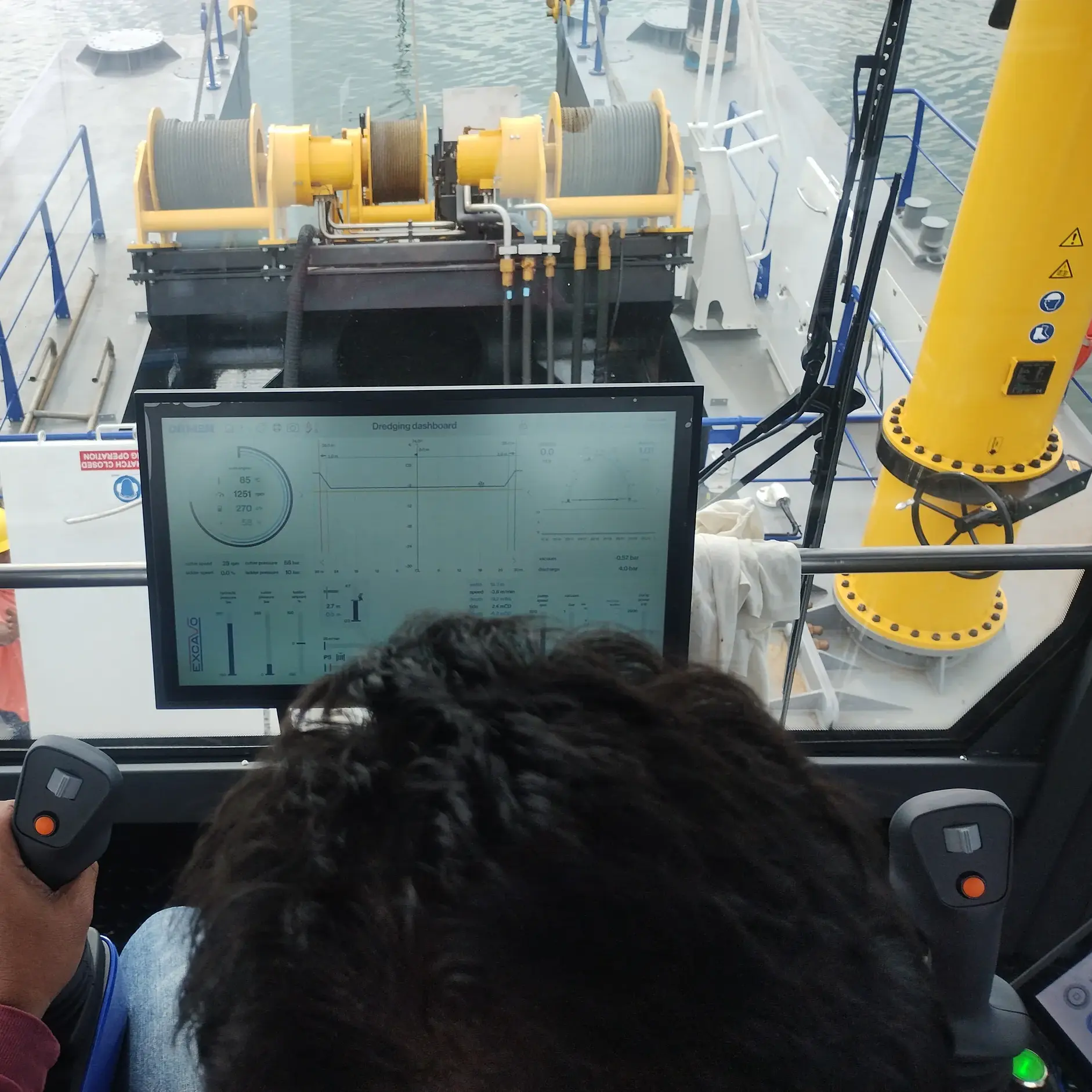

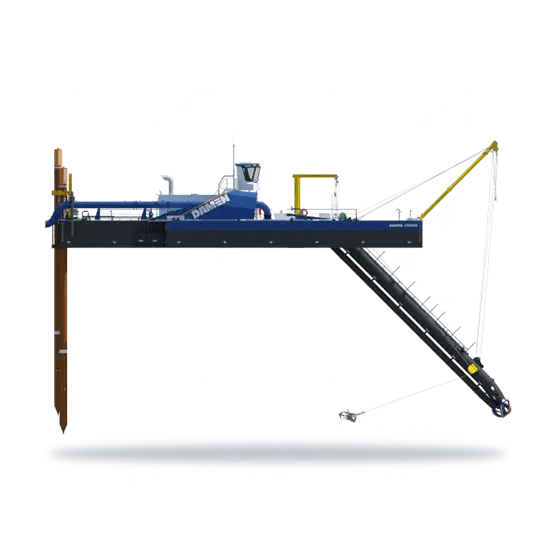

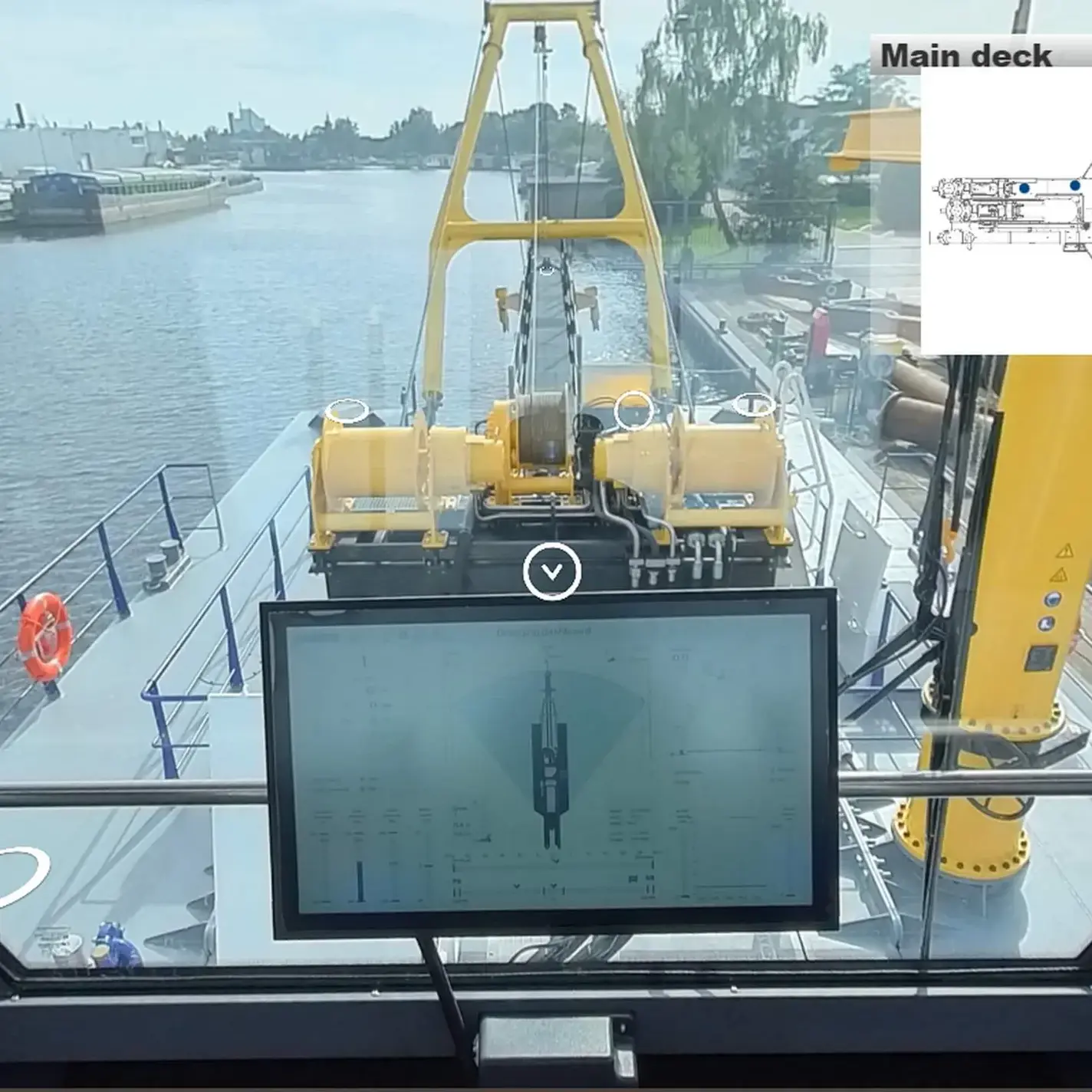

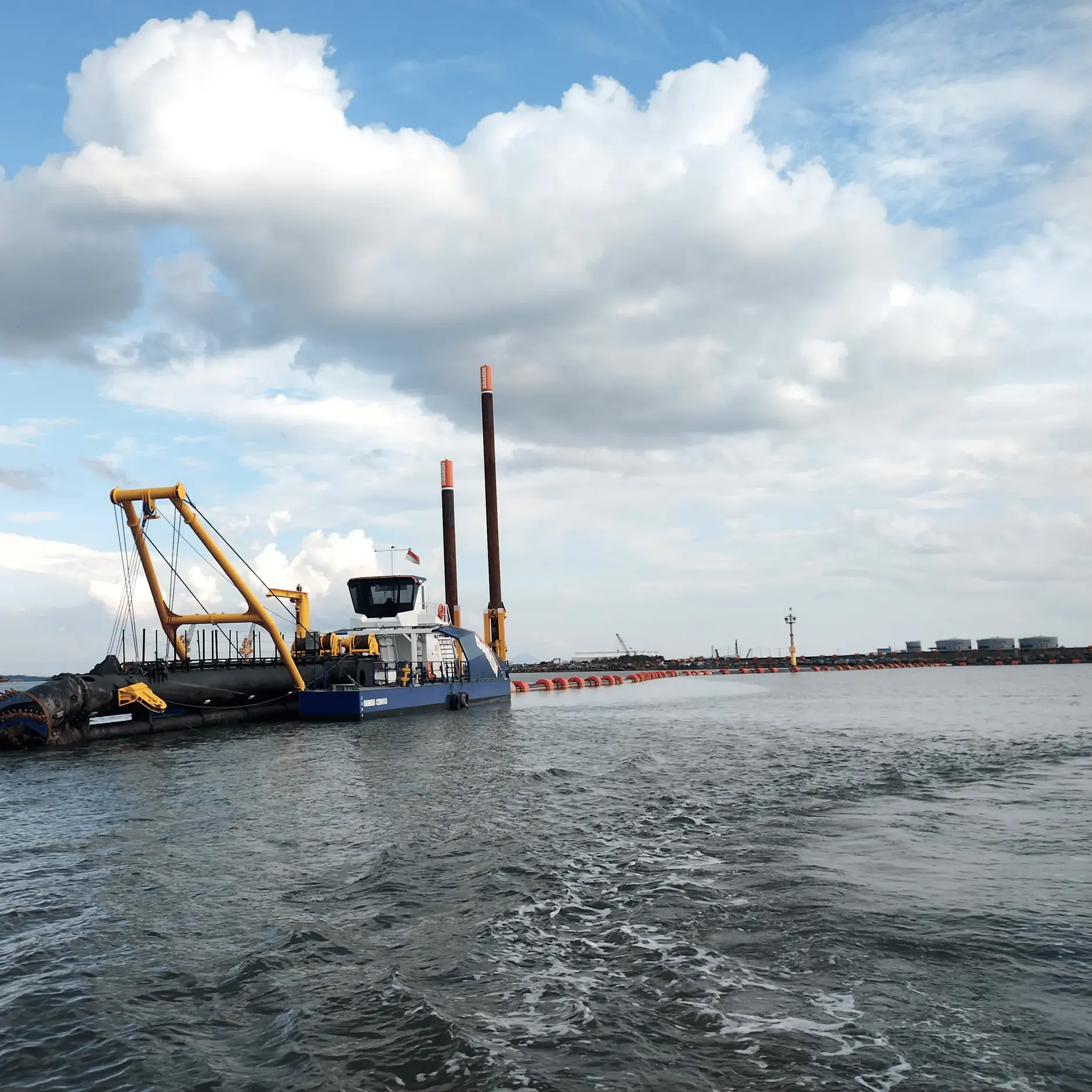

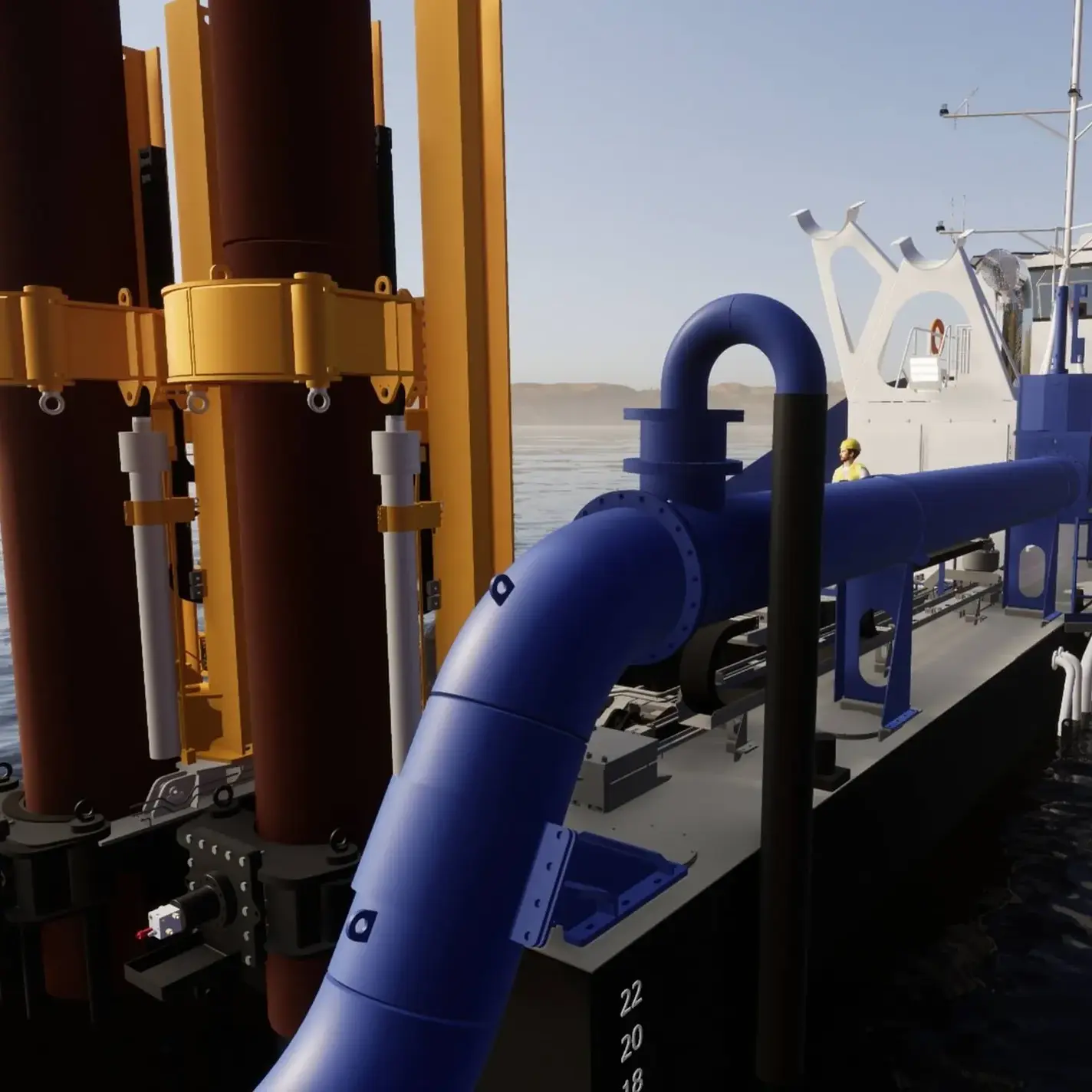

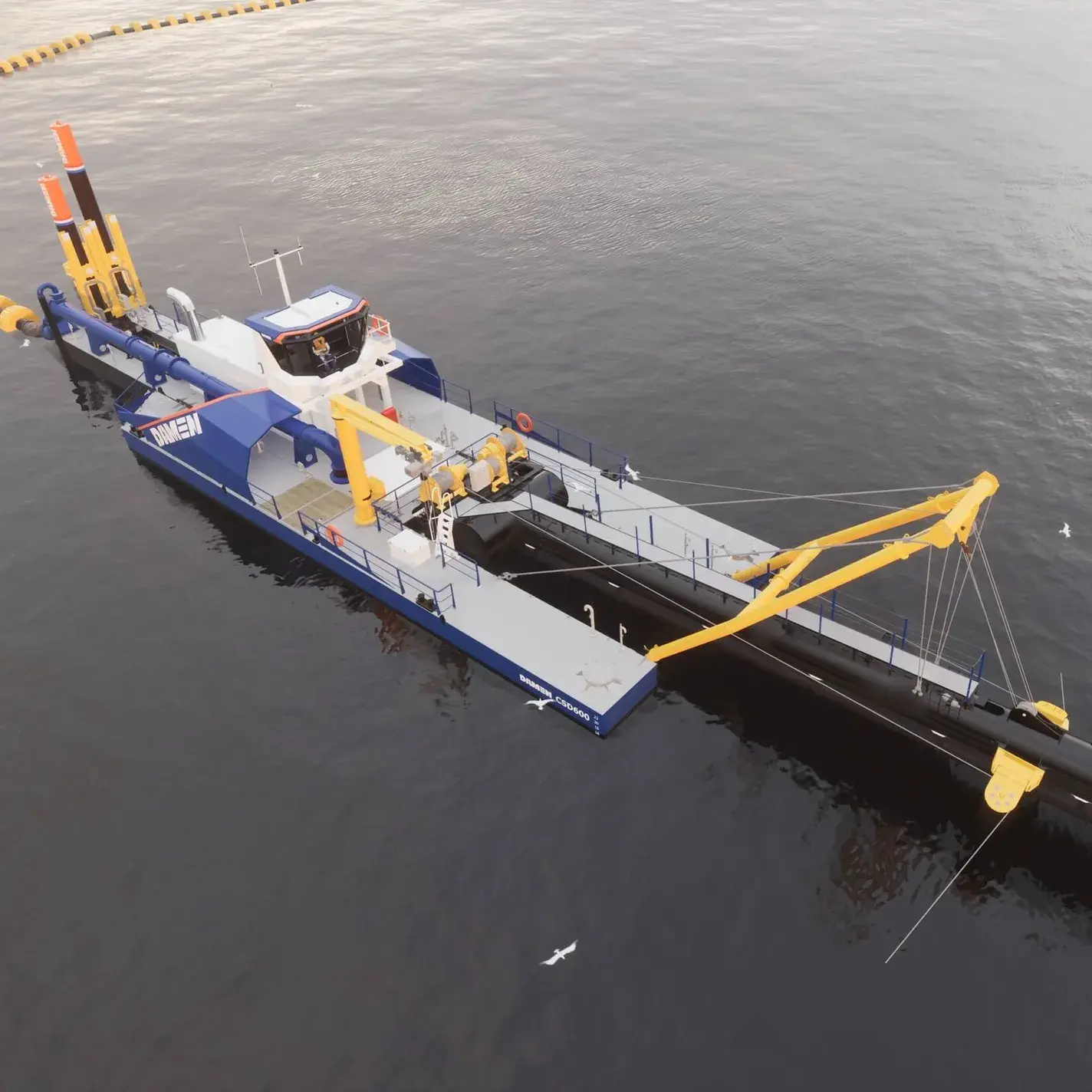

The modularly built CSD600 is the first of the new cutter suction dredger (CSD) series. Completely redesigned, the CSD has been made with crew safety and operational excellence in mind. The state-of-the-art new dredge pump design and the integrated spud carriage boost the efficiency of the stationary dredger. A spacious raised operating cabin offers an excellent view of the fore deck and dredge project. Fingertip control and digital connectivity optimise monitoring and control.
- Increased dredging depth
- Bureau Veritas class certificate

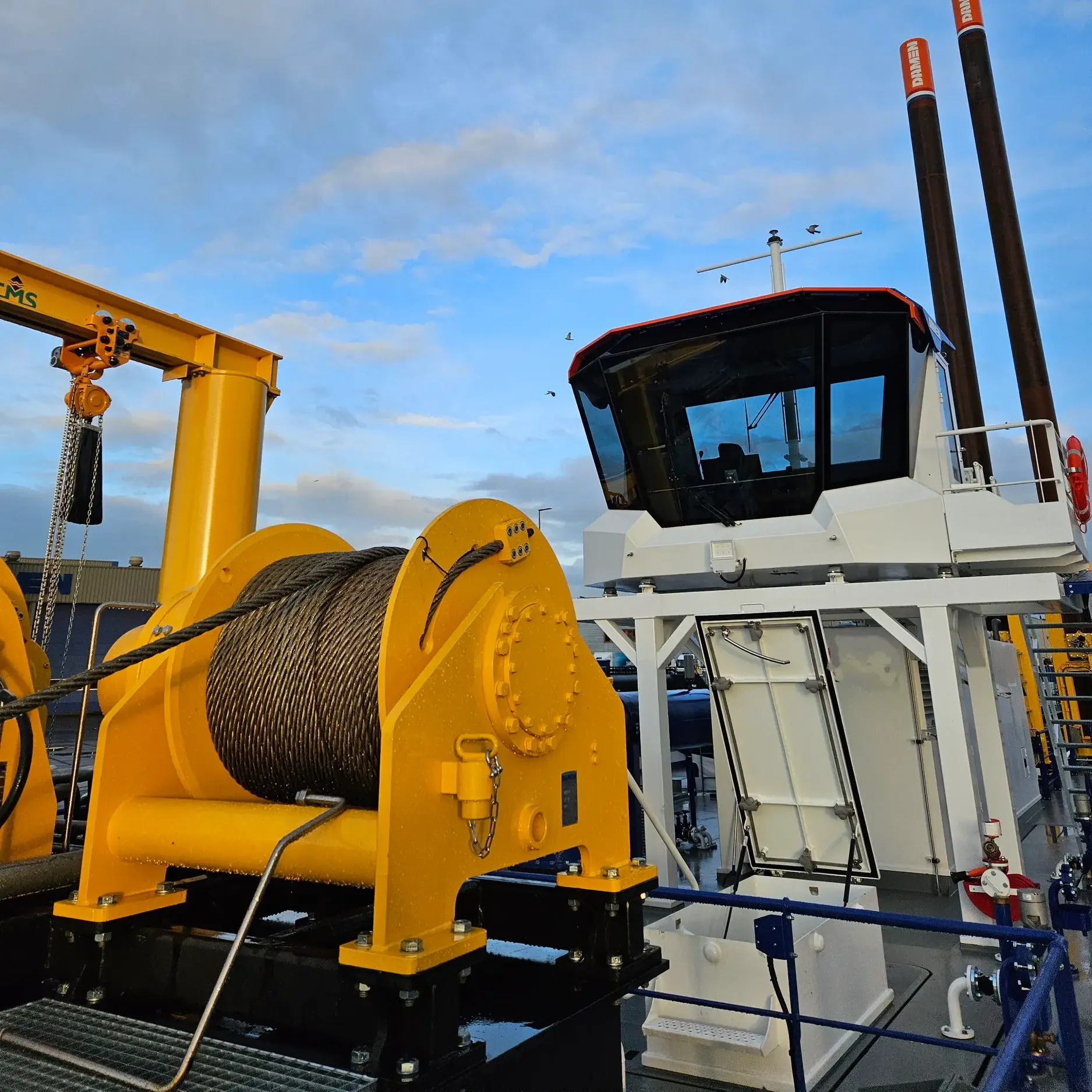

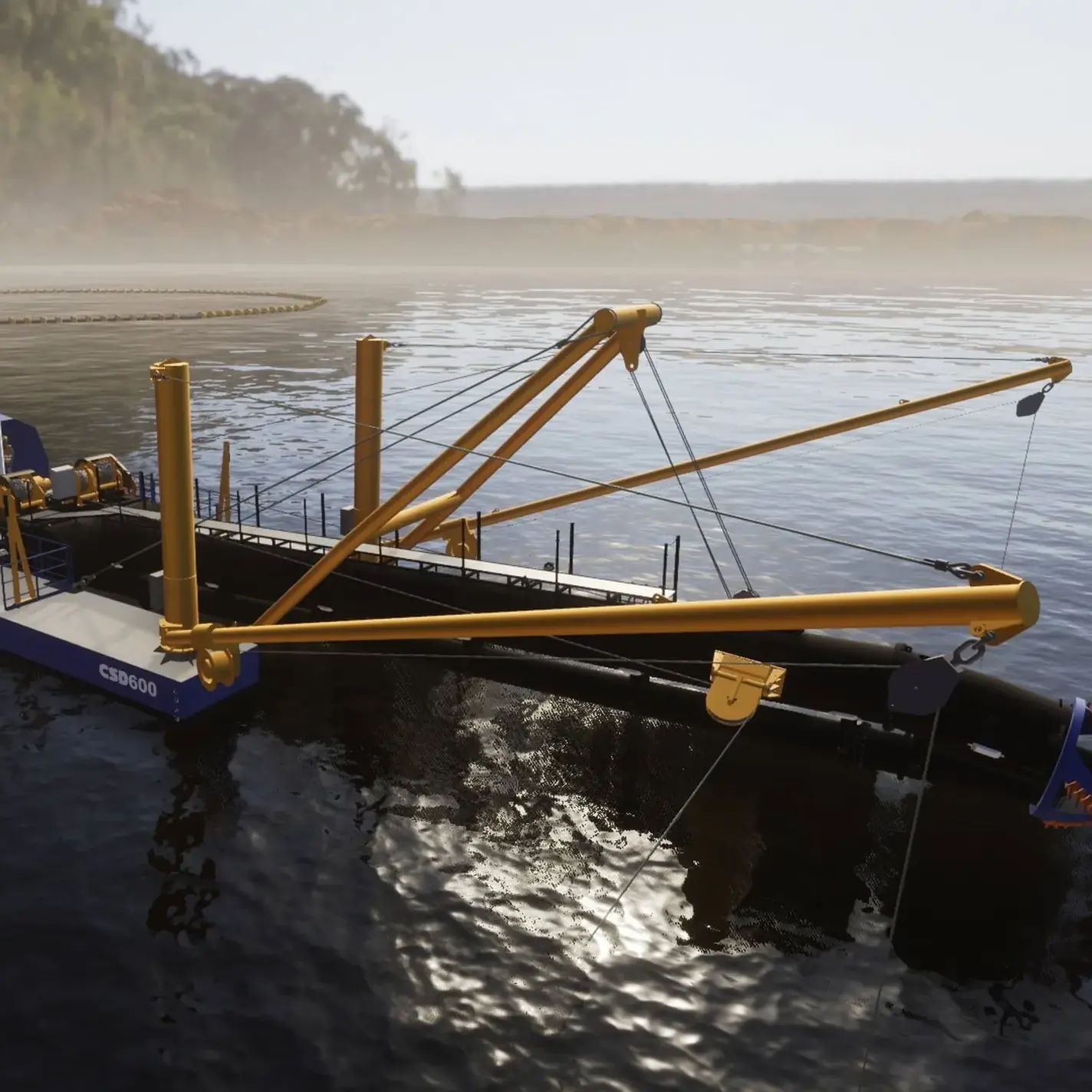

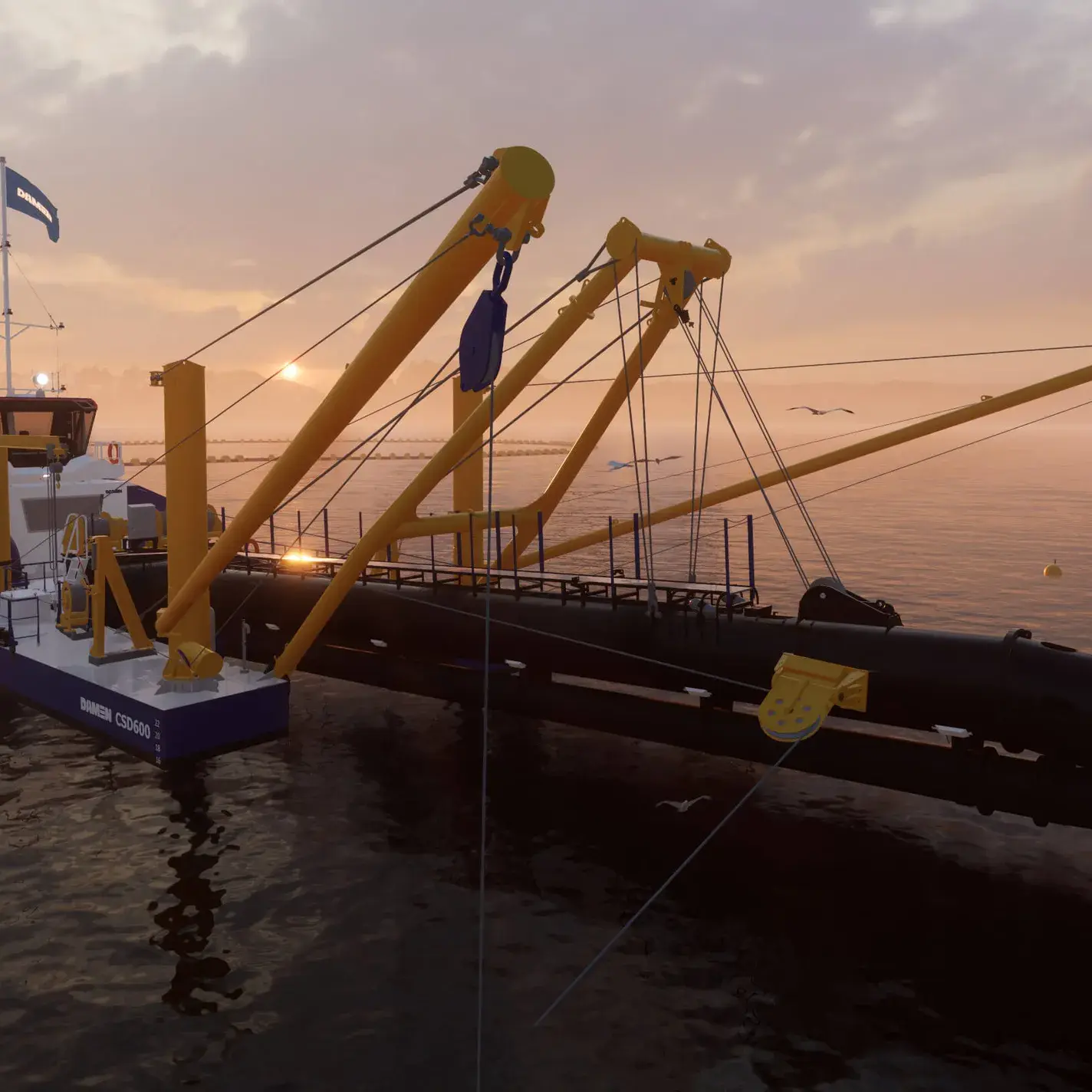

- Anchor booms
- Accommodation unit

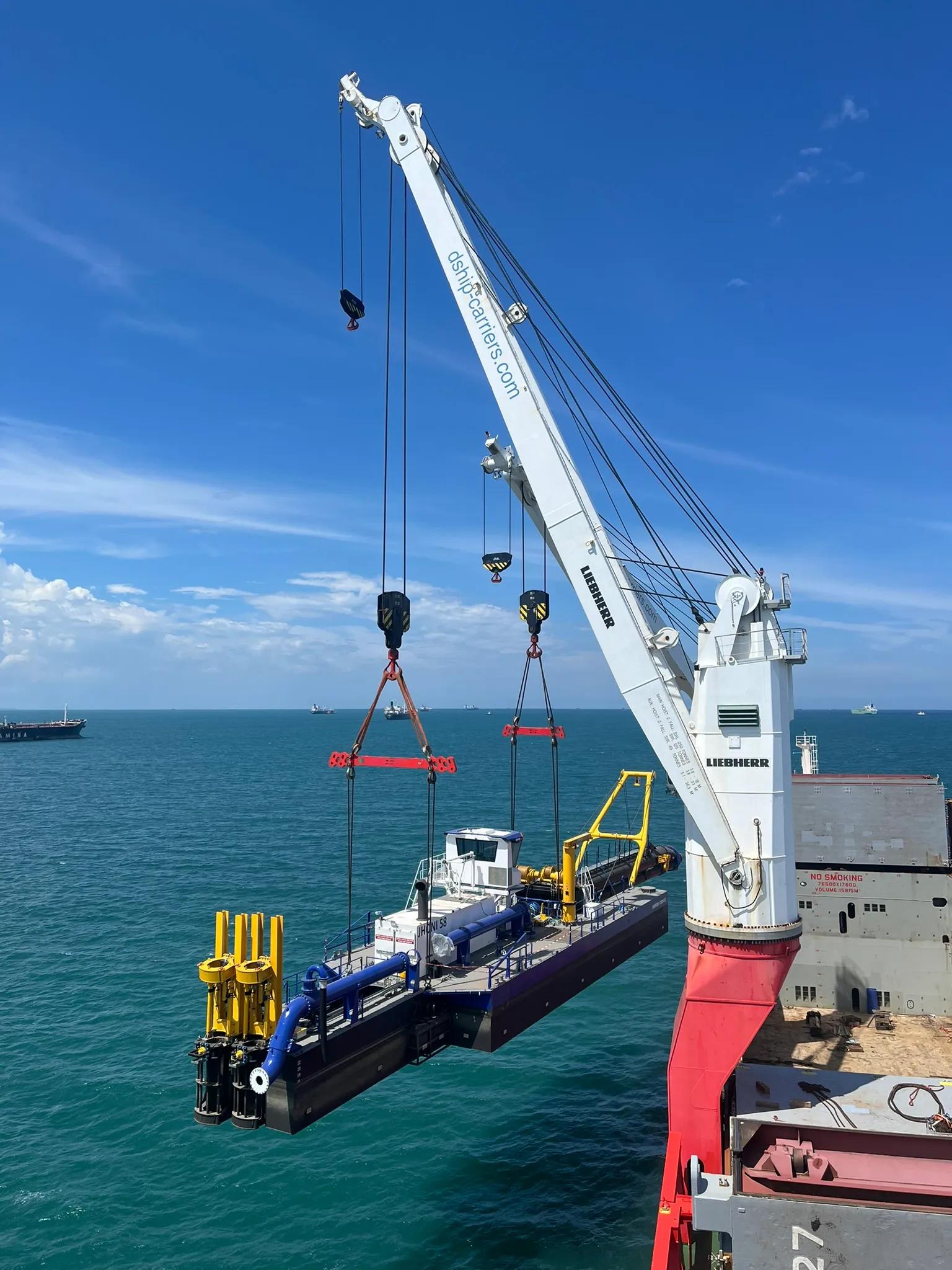

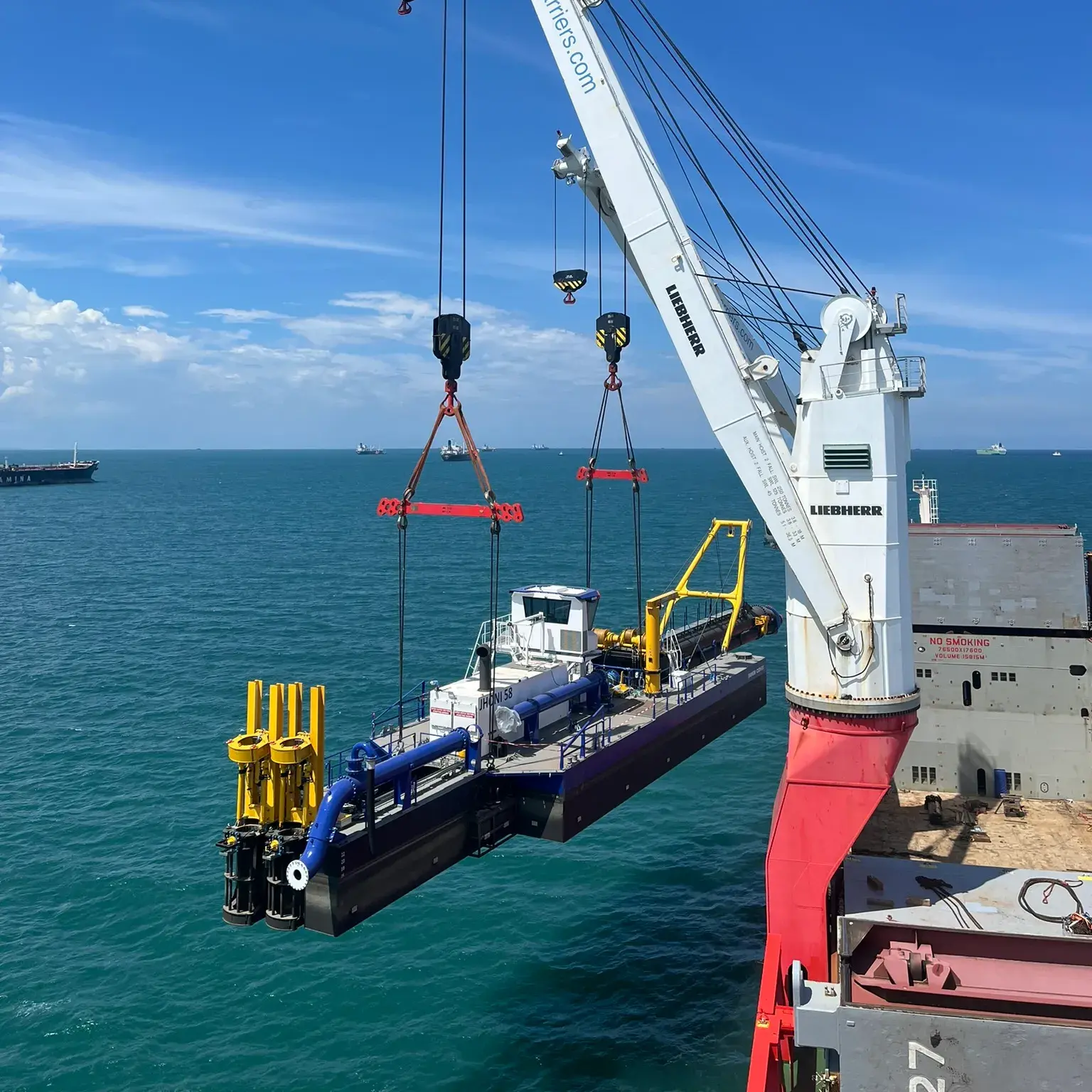

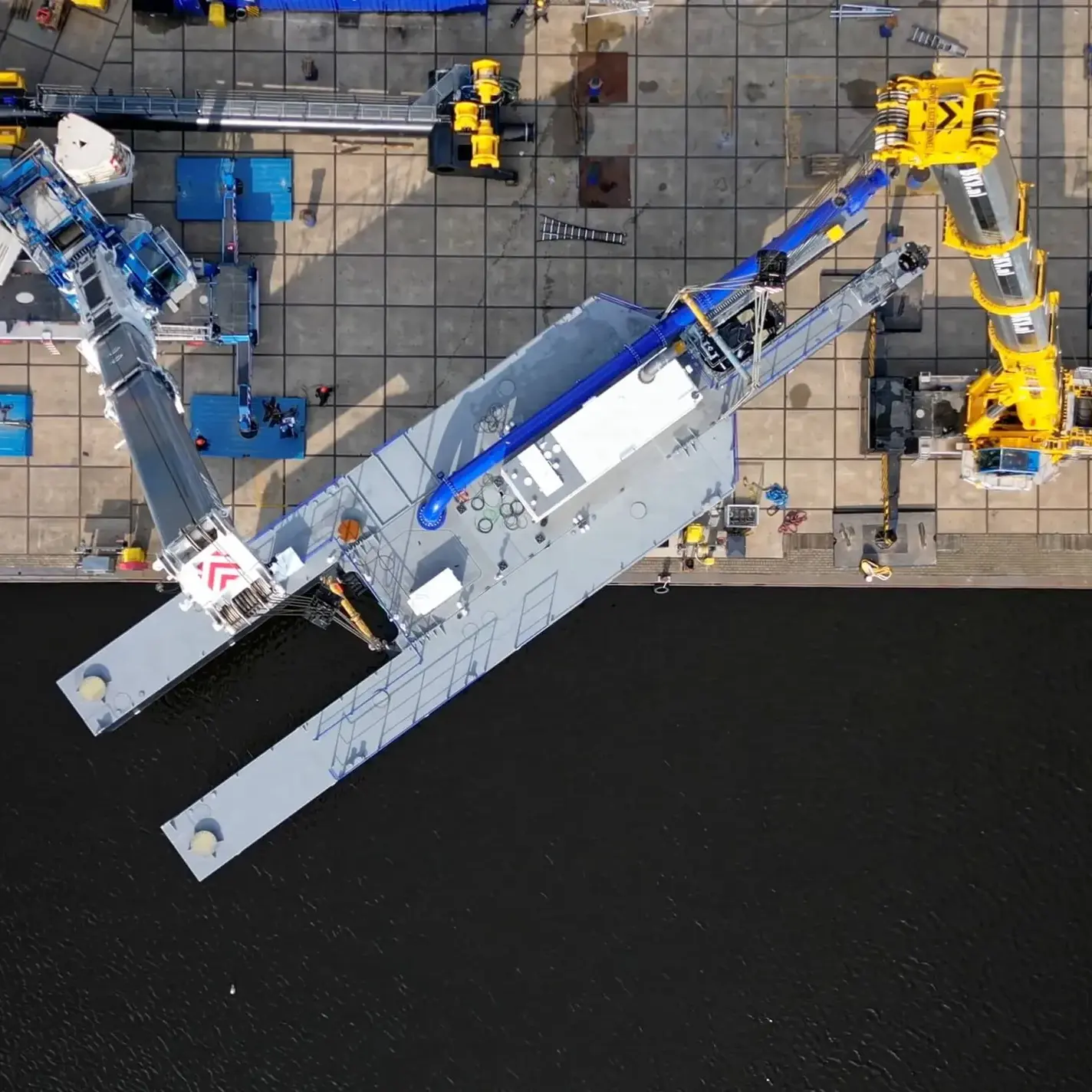

- Dismountable dredger for practical transport
- Easily customised due to available options
- Large swing width maximising operational efficiency

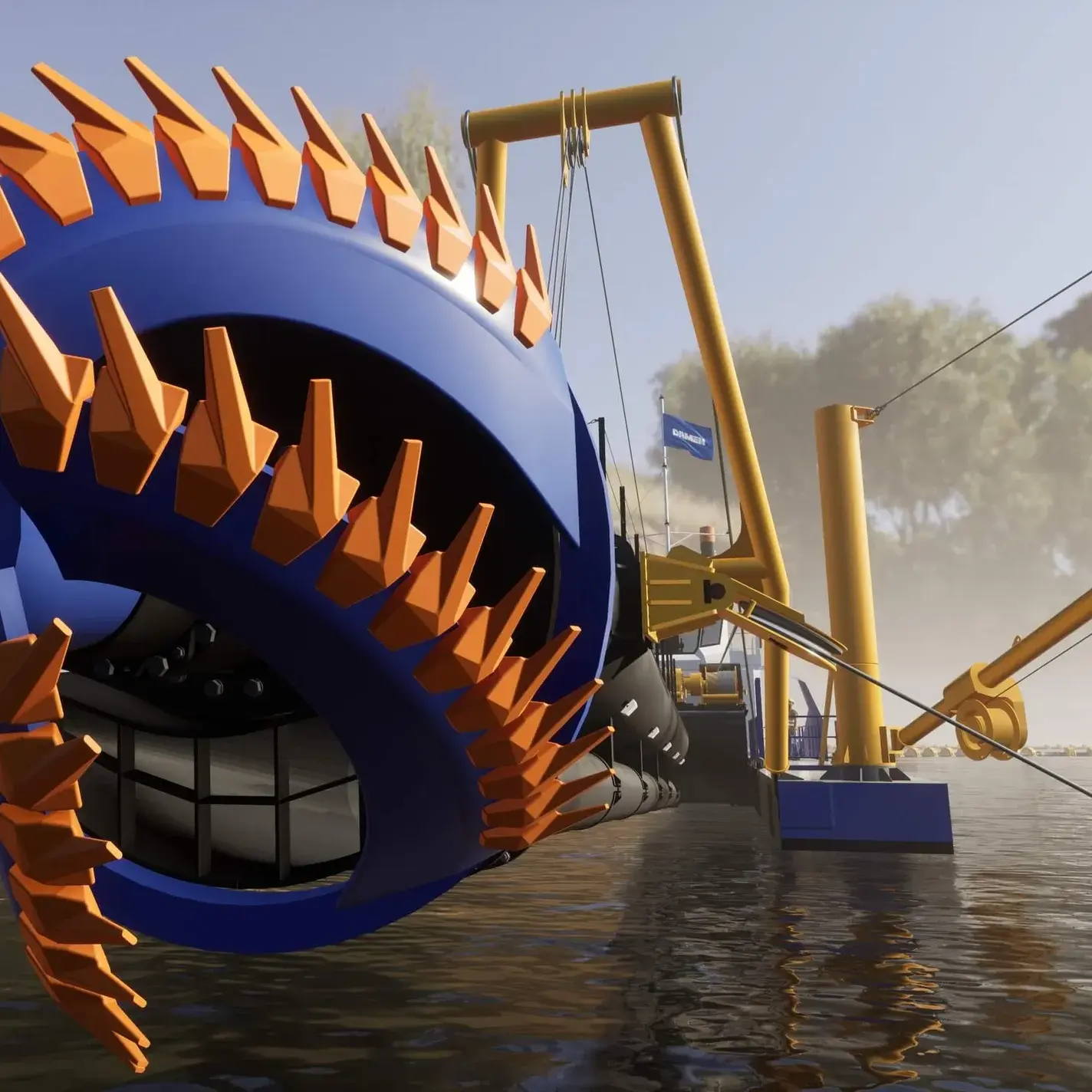

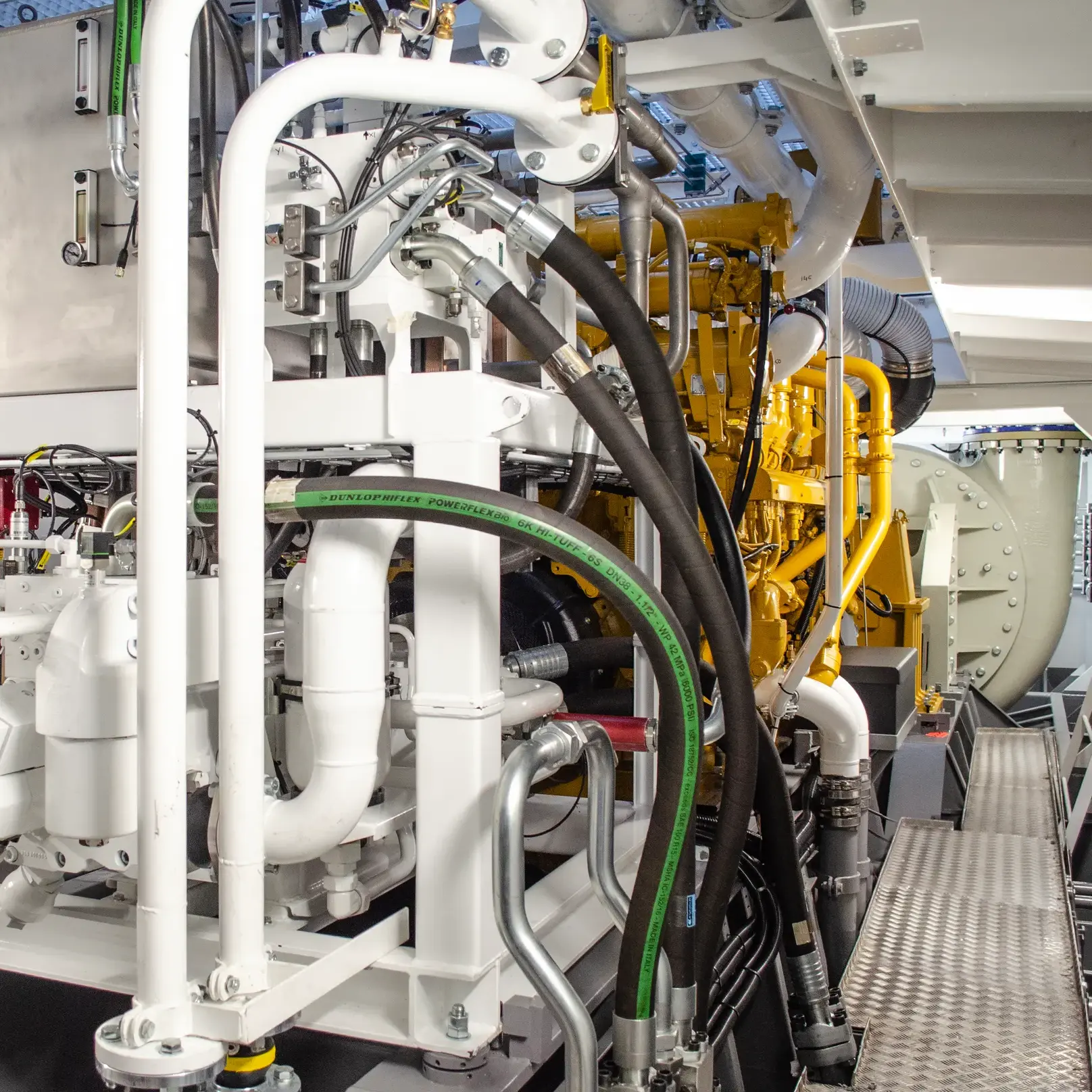

- Powerful cutter unit and wear resistant dredge pump
Key figures
6000
16
1980
600
250
Dredge performance
- Pipe diameter
- 600 mm
- Dredge production
- 6000 m³/h
- Dredging depth
- 16 m
- Swing angle
- 52 m
Equipment
- Cutter power
- 250 kW
- Spud carriage stroke
- 4.75 m
- Fuel capacity
- 58 m³
- Total installed power
- 1980 kW
Dimensions
- Length
- 49 m
- Draught
- 2.5 m
- Air draught
- 8.3 m
- Total weight
- 237 t
Do you want to know more?
Compare the different CSD types
| Production (m³/h) | Dredging depth (m) | Power (kW) | Pipe diameter (mm) | Cutter power (kW) | ||
|---|---|---|---|---|---|---|
| CSD600 | 6000 | 16 | 1980 | 600 | 250 | |
| CSD500 | 4000 | 14 | 954 | 500 | 180 | |
| CSD650 -18m | 7000 | 18 | 2960 | 650 | 700 |
CSD600
- Production (m³/h)
- 6000
- Dredging depth (m)
- 16
- Power (kW)
- 1980
- Pipe diameter (mm)
- 600
- Cutter power (kW)
- 250
- Production (m³/h)
- 4000
- Dredging depth (m)
- 14
- Power (kW)
- 954
- Pipe diameter (mm)
- 500
- Cutter power (kW)
- 180
- Production (m³/h)
- 7000
- Dredging depth (m)
- 18
- Power (kW)
- 2960
- Pipe diameter (mm)
- 650
- Cutter power (kW)
- 700
