Bridging the gap

Booster Stations

Expand your dredging job

Booster Pump Stations

A long discharge distance behind your dredger can be bridged easily. By adding a sand pump station, the dredged mixture is transferred to the spot where you need it. Booster Stations add pumping power to your dredger on site.

View Booster Station models

Booster stations (BS)

Exactly in sync with your dredger

A booster pump station teams up with a dredger. This interface has to be flawless; it’s essential to combine the right equipment. Therefore, our Cutter Suction Dredger range and Booster Station range are an exact match. They even share the same dredge pump and drive, and the dredge master operates the booster using remote control from his operating seat.

SUSTAINABILITY

Optimised dredging operations

RELIABILITY

Remote control ensures a smooth dredging process

EFFICIENCY

Powerful booster bridges the gap

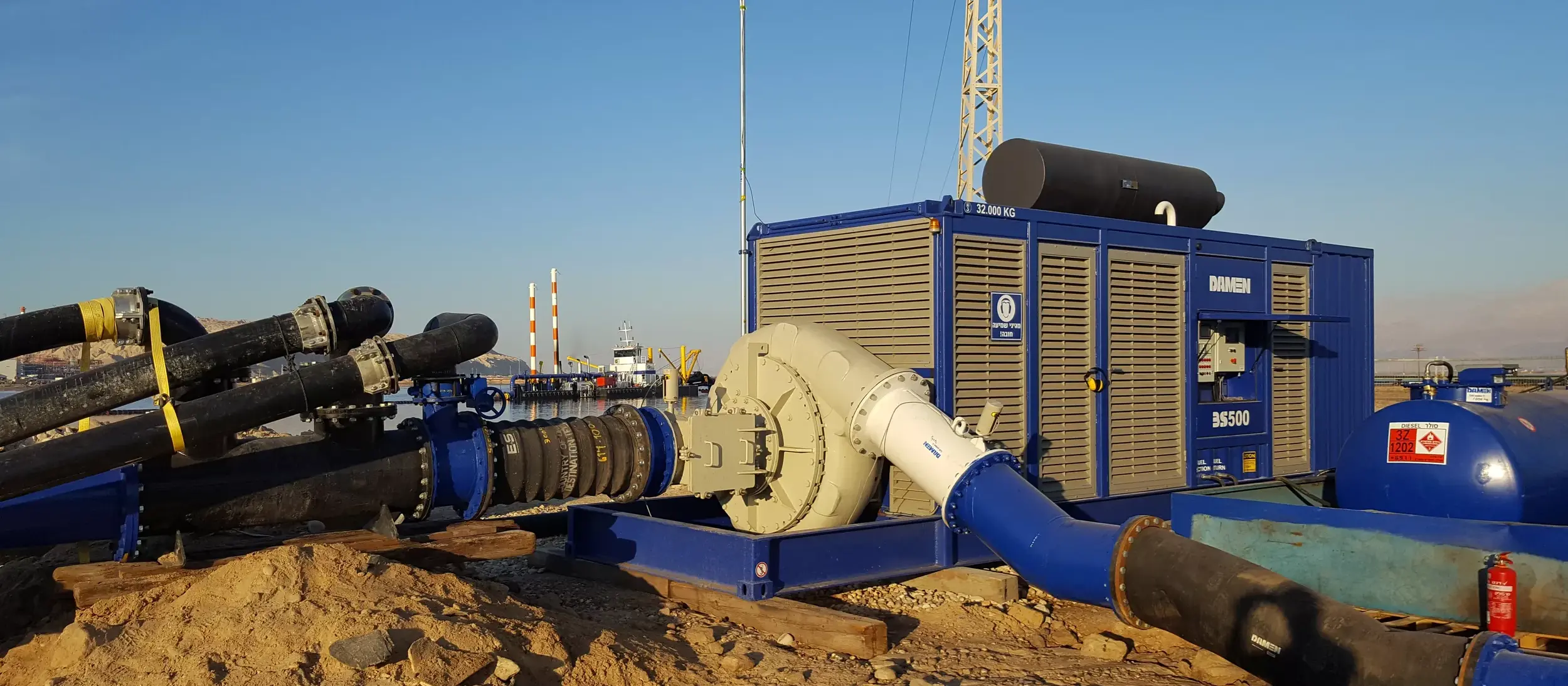

SAFETY

Synchronised team at work

Key features

Booster pump stations fit for the job

Placing a Booster Station in a dredge discharge pipeline cannot be done at random. Careful selection of the booster size is vital to team it up efficiently with the dredger. Moreover, the location of the booster unit in the piping is crucial for the success of the dredge job. The Damen team can assist you in choosing the perfect match.

How to use a Booster Station?

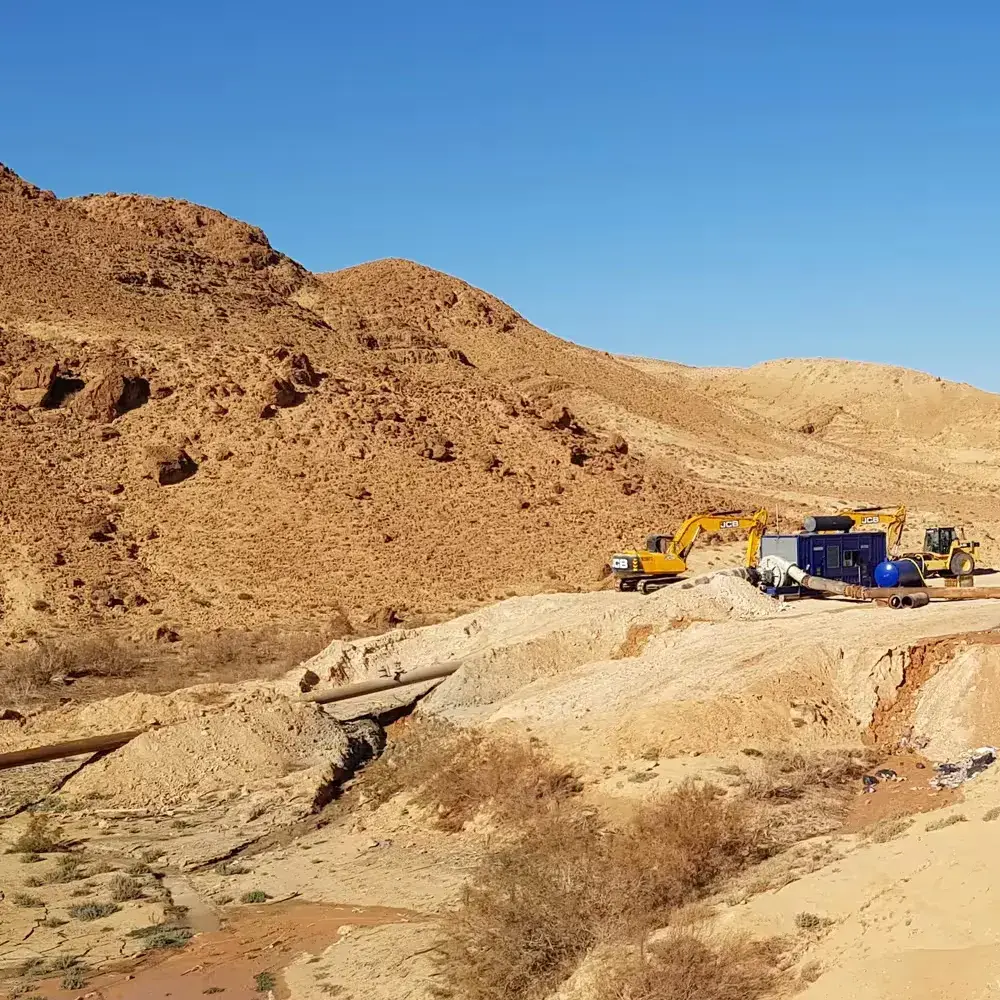

A Booster Station is used as an additional sand pump in a long discharge pipeline. Each dredged mixture – whether a slurry of silt, sand or gravel – has its own critical velocity. The additional sand pump station in a discharge line ensures that the mixture flow will keep moving well above this crucial point. A single dredger can thus deliver dredged material to a faraway disposal site – by just adding extra pumping power.

Booster Station design

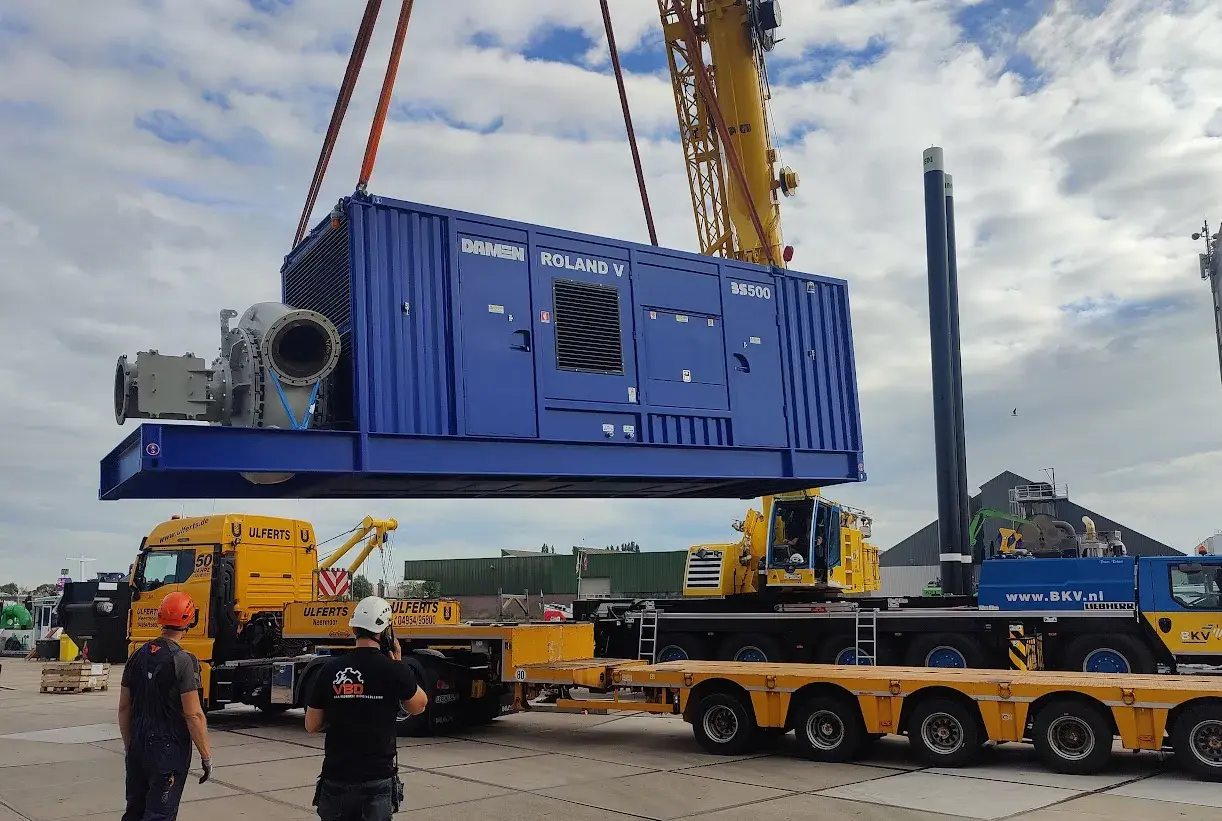

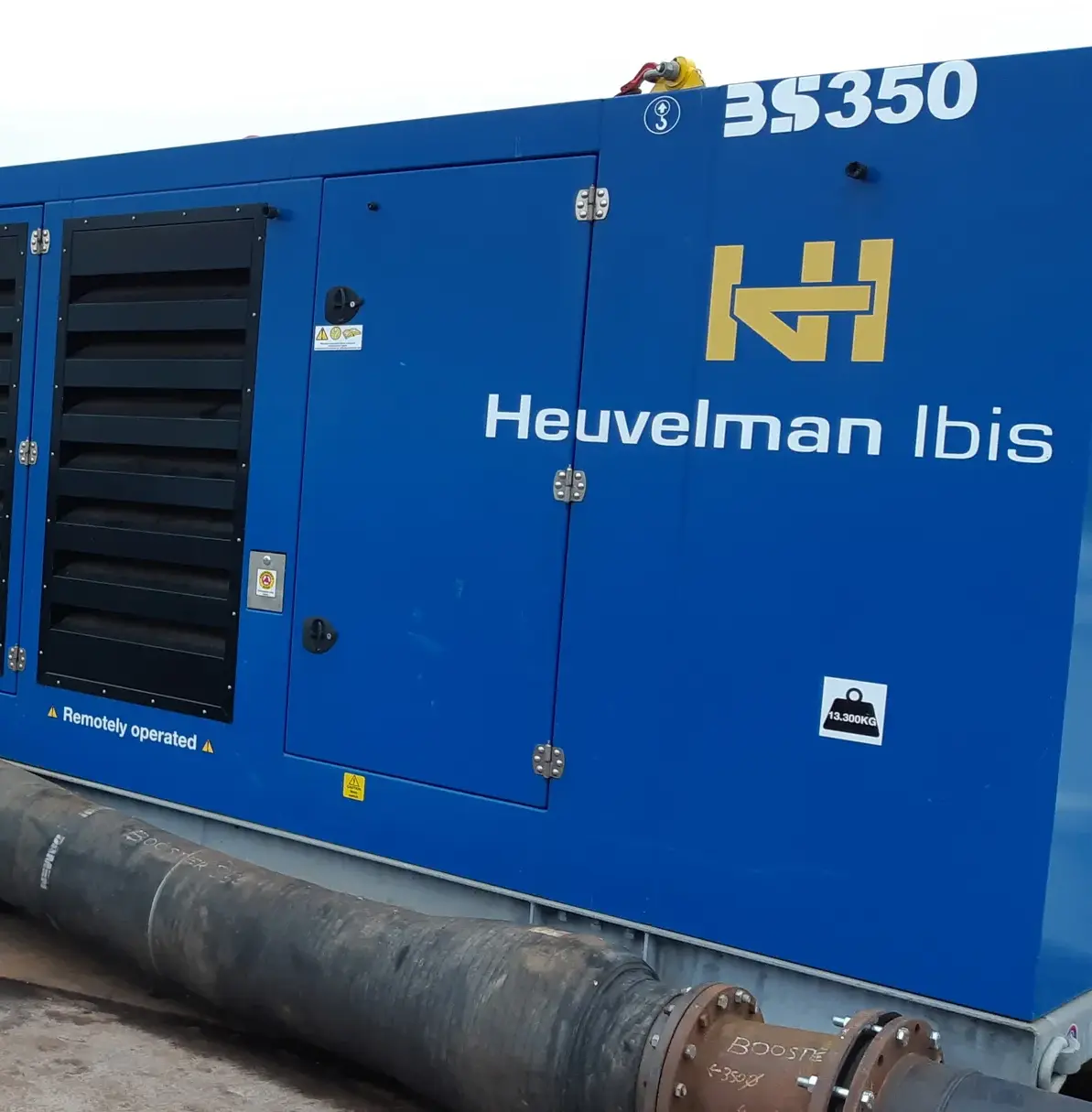

All booster pump stations are container-sized units to ensure practical transport and rapid mobilisation on site. Moreover, the design is such that large hatches give access to both local controls and all equipment inside the housing.

Careful selection

Each booster pump station works in series with at least one other dredge pump. The right combination of equipment is essential to succeed, hence the dredger is the starting point. The selection of the booster pump is based on overall required pressure and therefore power. The range of booster units available guarantees that the perfect interface can be found whether a submersed or in board dredge pump is used on the dredger.

Smart power

The dredge pump in the booster station is directly driven by a radiator cooled Caterpillar diesel engine. This first-class engine has a constant power over a large speed range. All engines meet the IMO Tier II regulations – yet we can use a different diesel engine as per your requirements, or we can go for the all-electric option.

Discover our Booster Stations

All technical details including additional discharge distance can be found here and in the downloads.

Show models

BS650

BS500

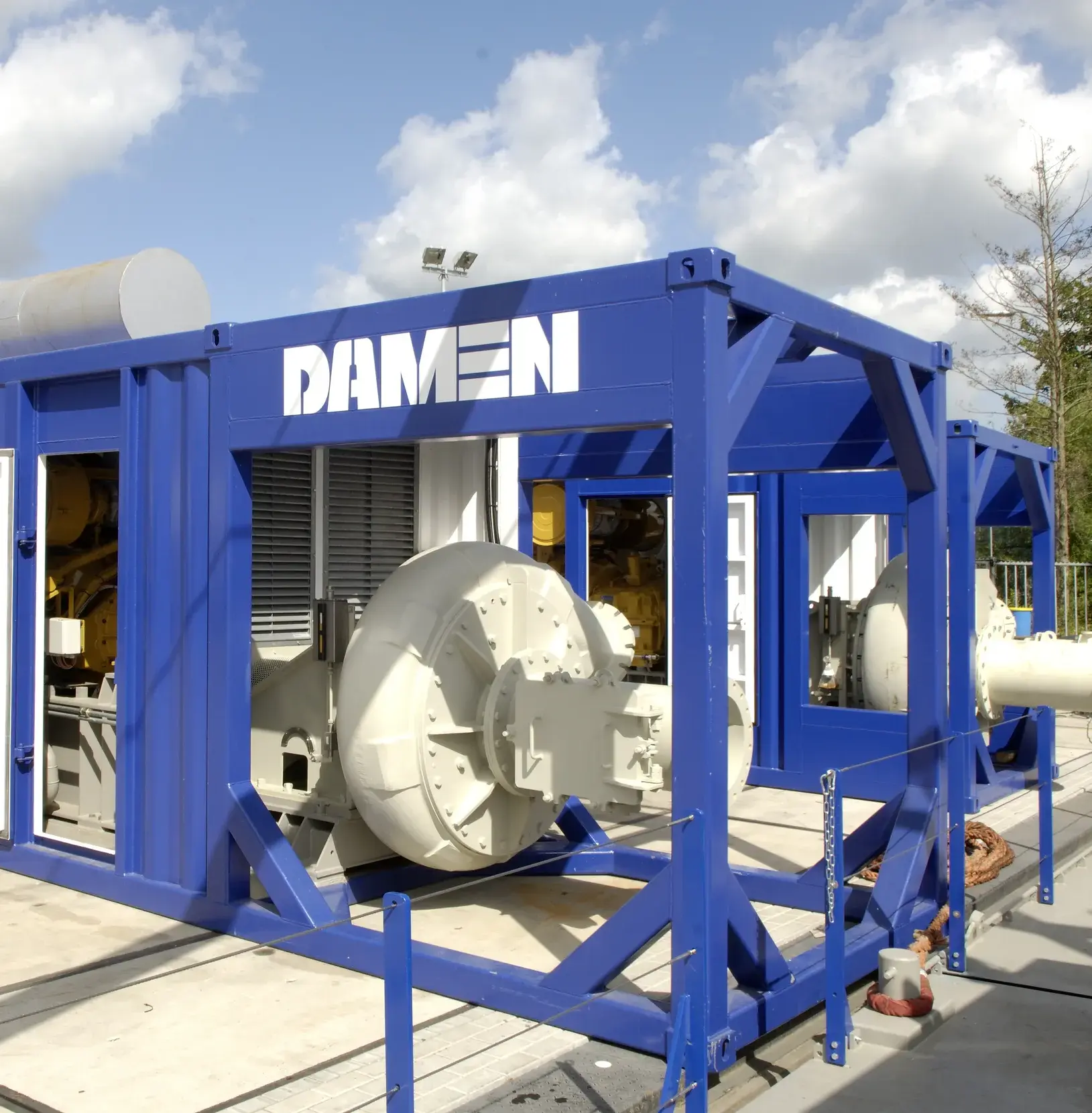

BS450

1 / 5

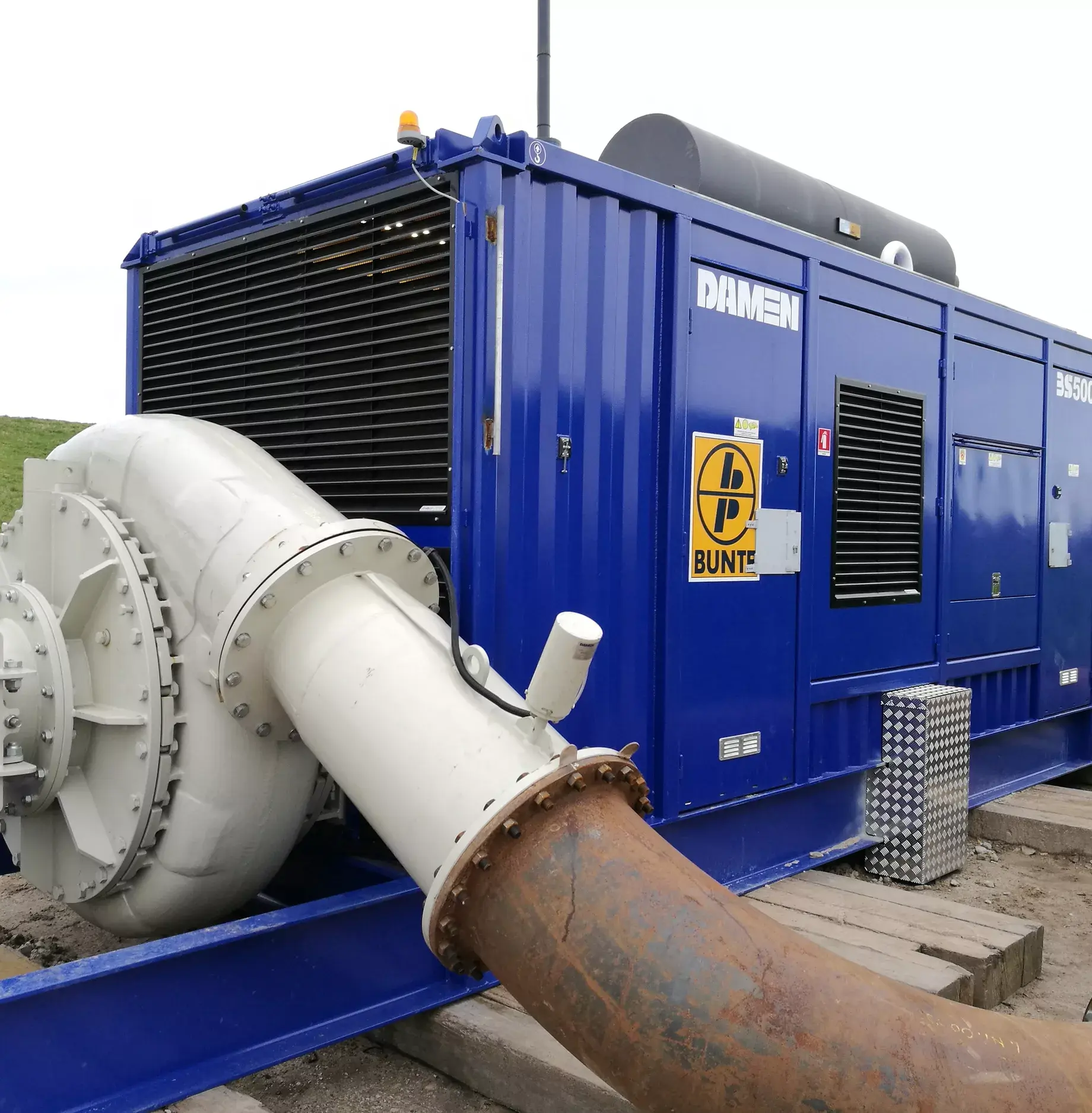

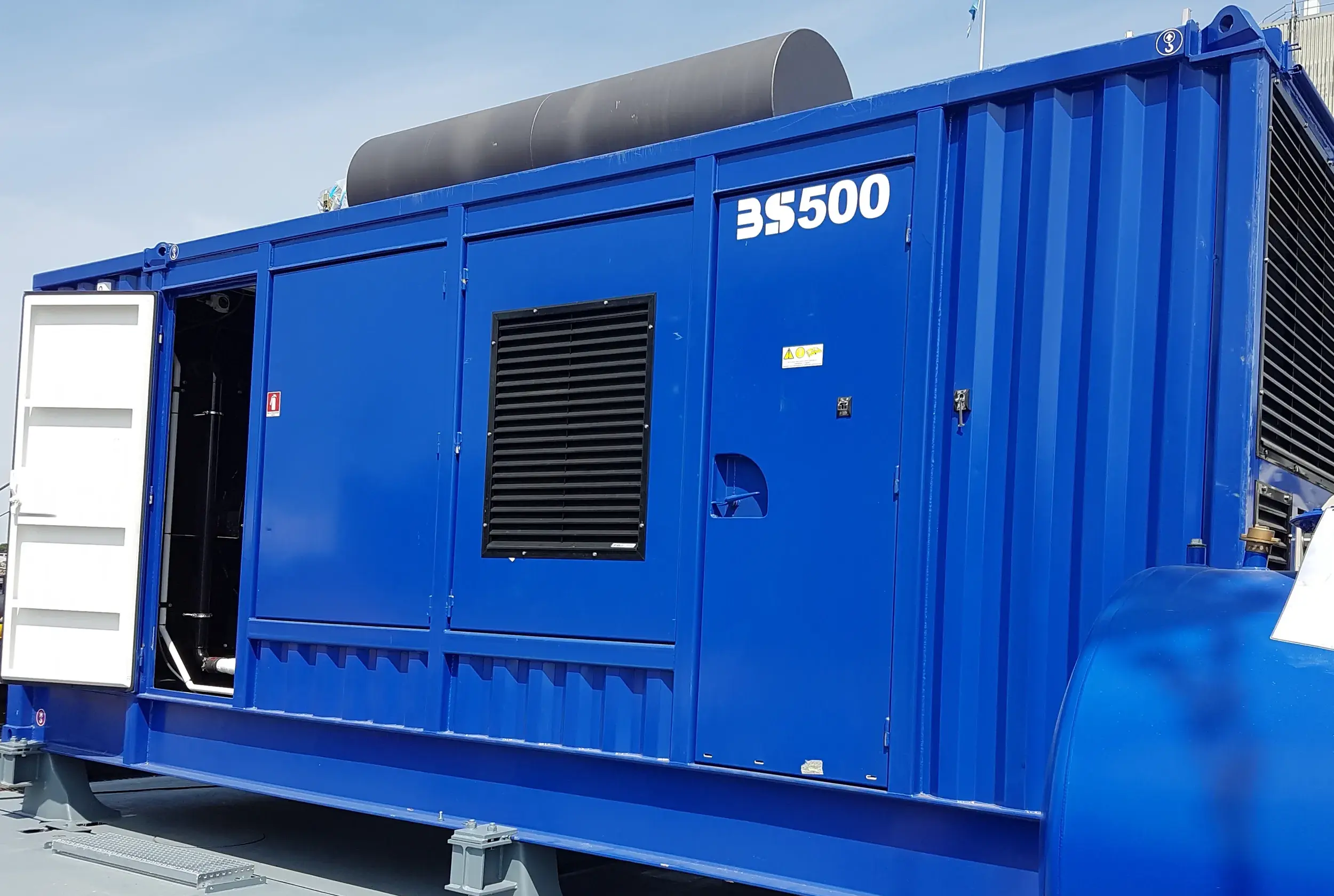

Available for fast delivery: a BS500

Ideally to match a 500 mm (20 inch) dredger, this booster is ready for sale at our Damen Dredging yard.

Send me a quote

In the spotlight

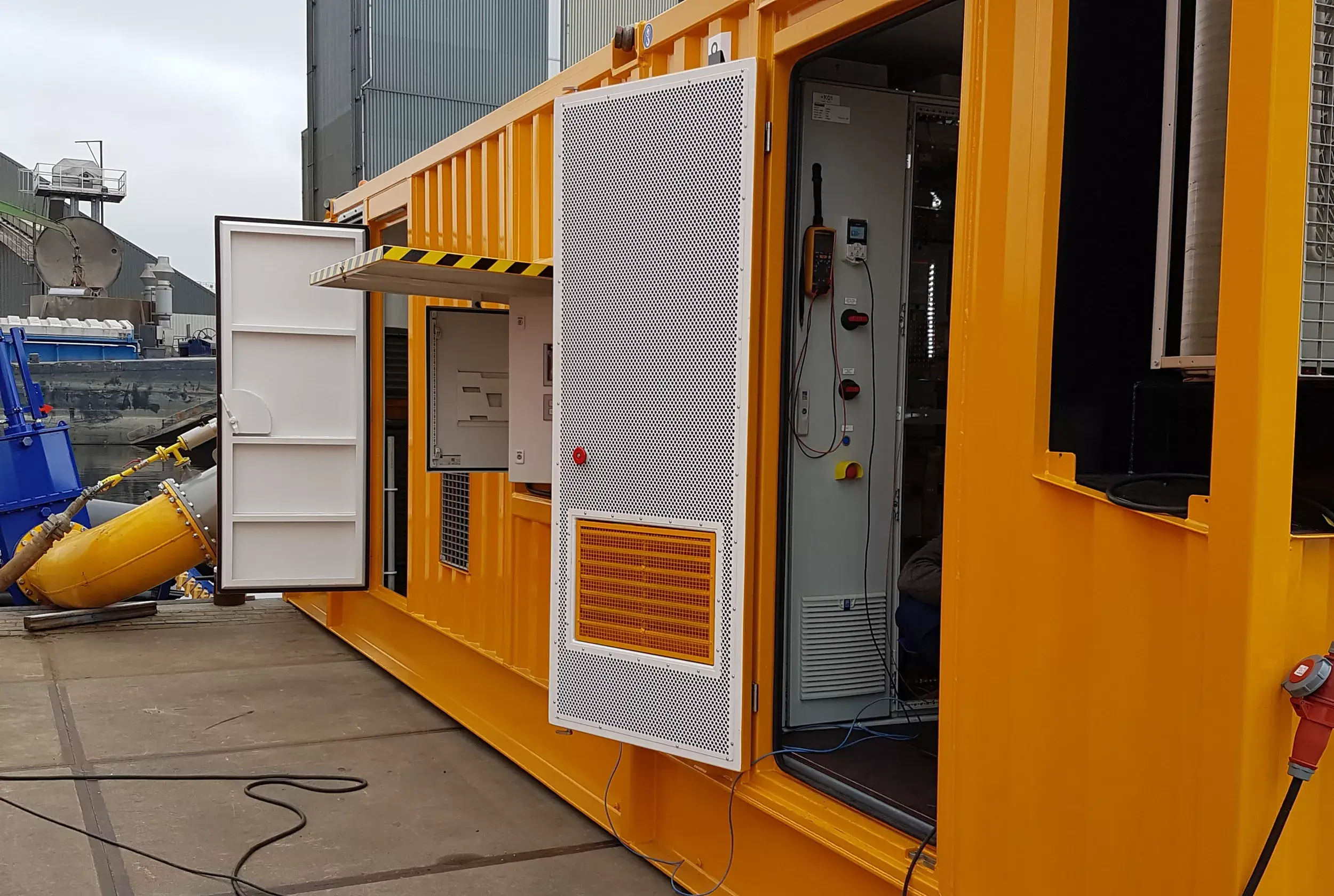

Electric Booster Station

E-BS500

Explore

Floating Booster Station

FBS500

Explore

Deliveries

Our success stories

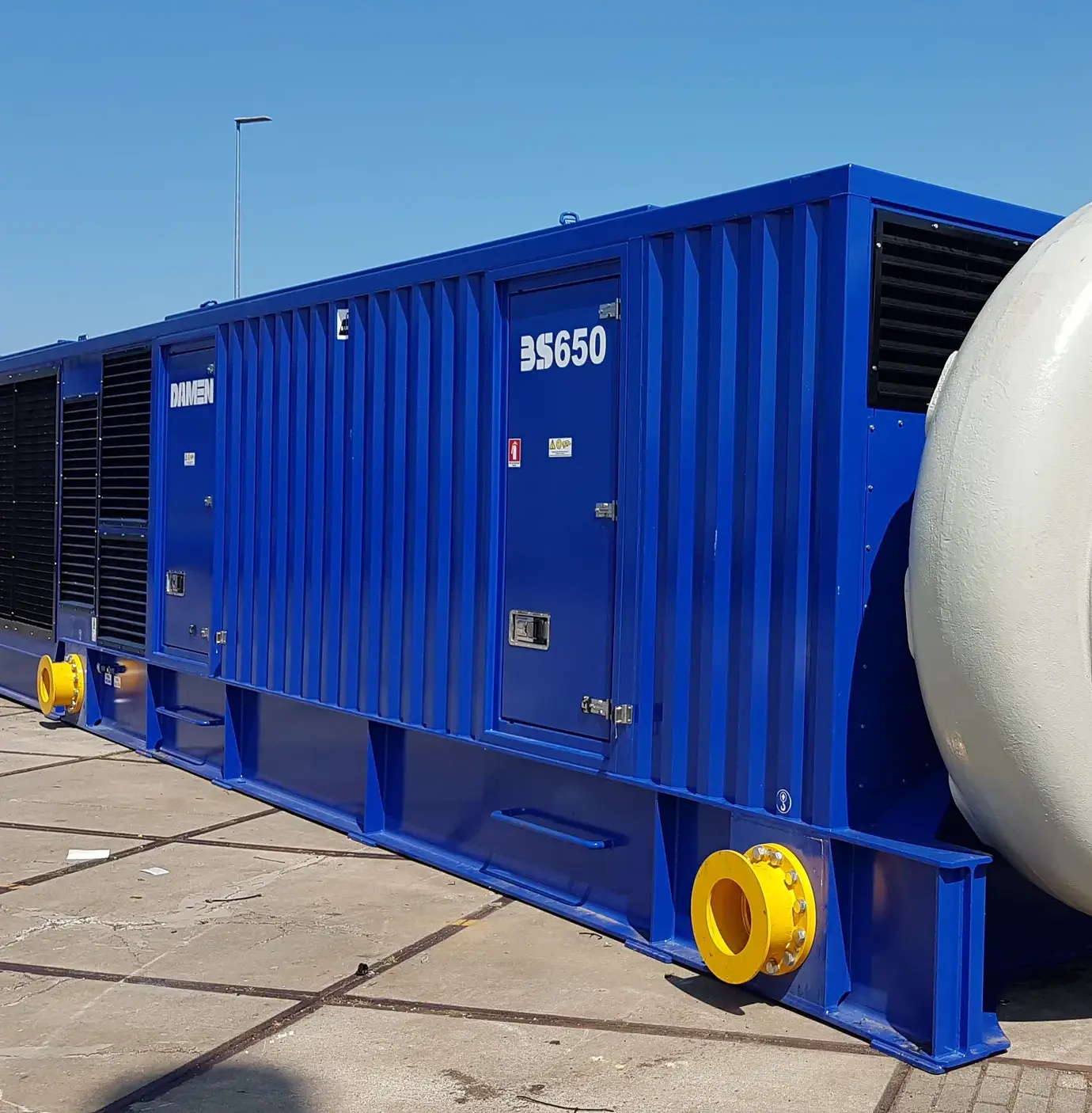

The prefect match, a booster 650

Together with the CSD650, a booster station BS650 was delivered for a dredge job in Argentina. The boosters dredge pump and drive are identical to those in the dredger.

Additional discharge distance

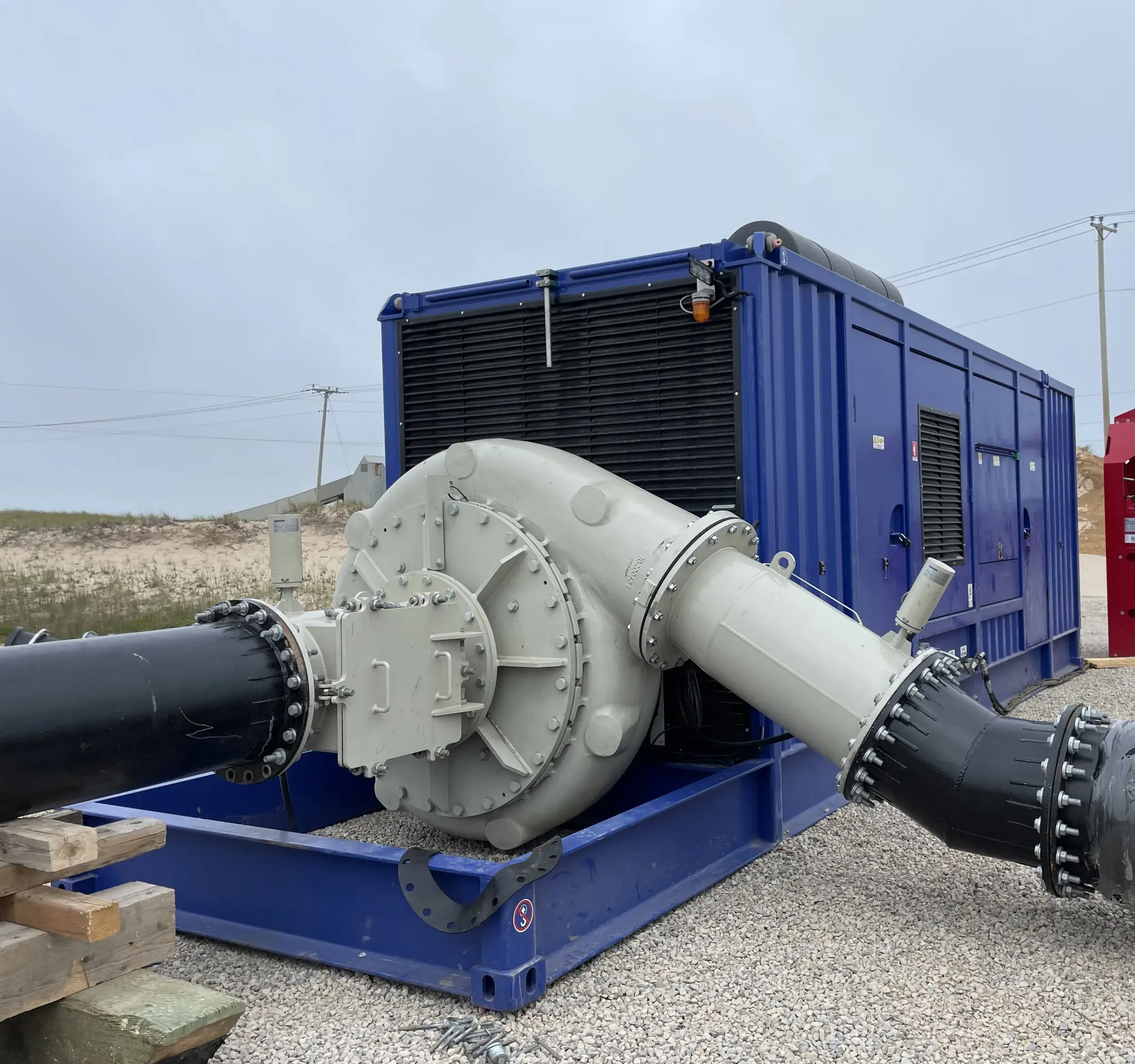

A booster BS500 was delivered to a Canadian customer. The standard design was delivered without engine, enabling the use of existing components on site. The boosters works in series with a hopper dredger, adding discharge distance to the job.

Available and immediately delivered from stock

When a dredging projects becomes a challenge, a booster station can be the instant solution. Heavy materials, longer discharge distances or a higher mixture concentration can be handled when adding a booster station to a discharge pipeline.
