Crewboat
Used CTV for Sale
Used Crew Transfer Vessels
07751
2013
21.58
12

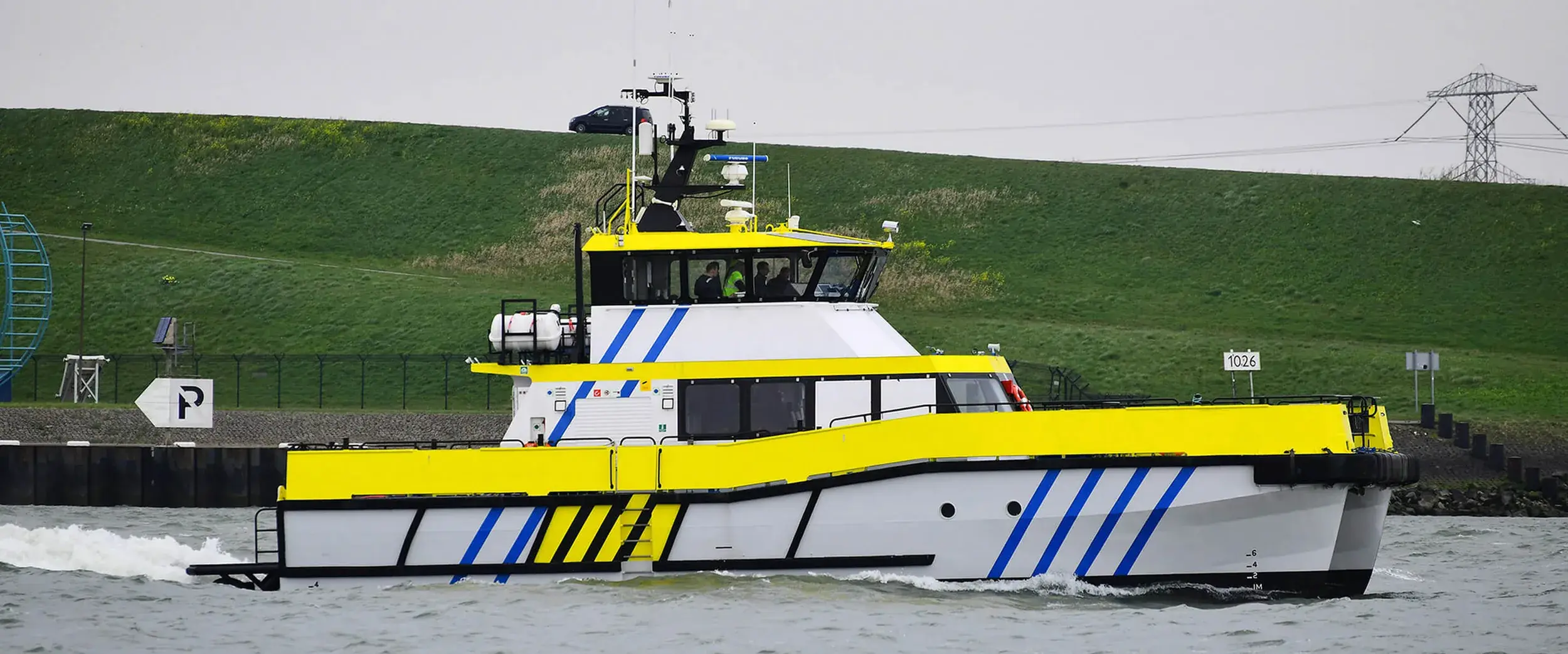

Two very well maintained CTV SISTERS, 12 pax seats, capable of ROV/survey duties because of spacious forward and aft decks and container fittings. Manoeuvrability is ensured by the waterjet propulsion. Vessels are fitted with spacious pax area with all-round visibility, small galley, toilet and shower. Vessels have been completely blasted and re-fitted in 2022, including main engines major overhauls.
Specifications
- Type
- Crew Transfer Vessel (2 sisters)
- Built
- 2013
- Dimensions
- 21.58 x 7.00 m
- Draft
- 1.10 m
- Material
- Aluminium, both hull and superstructure
- Tonnage
- Gross 97 / Nett 29 / Light ship 45
- Cargo capacity
- 7 tonnes
- Loading area
- Space for 10 or 16 ft container on aft and fore deck
- Propulsion
- 2x Hamilton HM571 waterjets
- Main engines
- 2x MAN, type D2842 LE405
- Output
- 1.774 hp total at 2100 rpm
- Gearboxes
- 2x ZF 2000 series, ratio 2.032:1
- Speed
- 25 knots max. at 280 ltrs/hr
- Consumption per 12 hrs
- 550 ltrs (based on projects 20 nm offshore)
- Endurance
- 38 hrs at 23 knots, 880 nm
- Generators
- Cummins, 17 kW, 230V/50Hz
- Passenger capacity
- 12 Passengers and 3 crew
- Accommodation
- Two single berth cabins (option for 2 extra berths)
- Nav./comm. equipment
- According to GMDSS A2
- Class
- Bureau Veritas
- Price range (€)
- 750.000 - 1.000.000
