Damen Air Cavity System (DACS)
Next Generation Air lubrication
Damen Air Cavity System© (DACS) is a patented Air Lubrication System (ALS). By generating cushions of air between the hull and the water underneath the flat bottom area, a significant reduction of the resistance can be achieved. This leads to a reduction of fuel consumption and emissions. DACS can achieve a fuel reduction of up to 15% and is verified by RINA and Lloyd's Register.
Low power consumption and effective along entire speed range
Damen Air Cavity System© at similar flow rates, an air cavity reduces the friction significantly more than the 1st generation bubble generating systems, as shown in the graph. The system aims to reduce resistance in the water, particularly for ships with a low Froude number. Such vessels are known to encounter the greatest resistance in the water. By reducing this, DACS achieves both lower both emissions and fuel consumption.
How DACS works

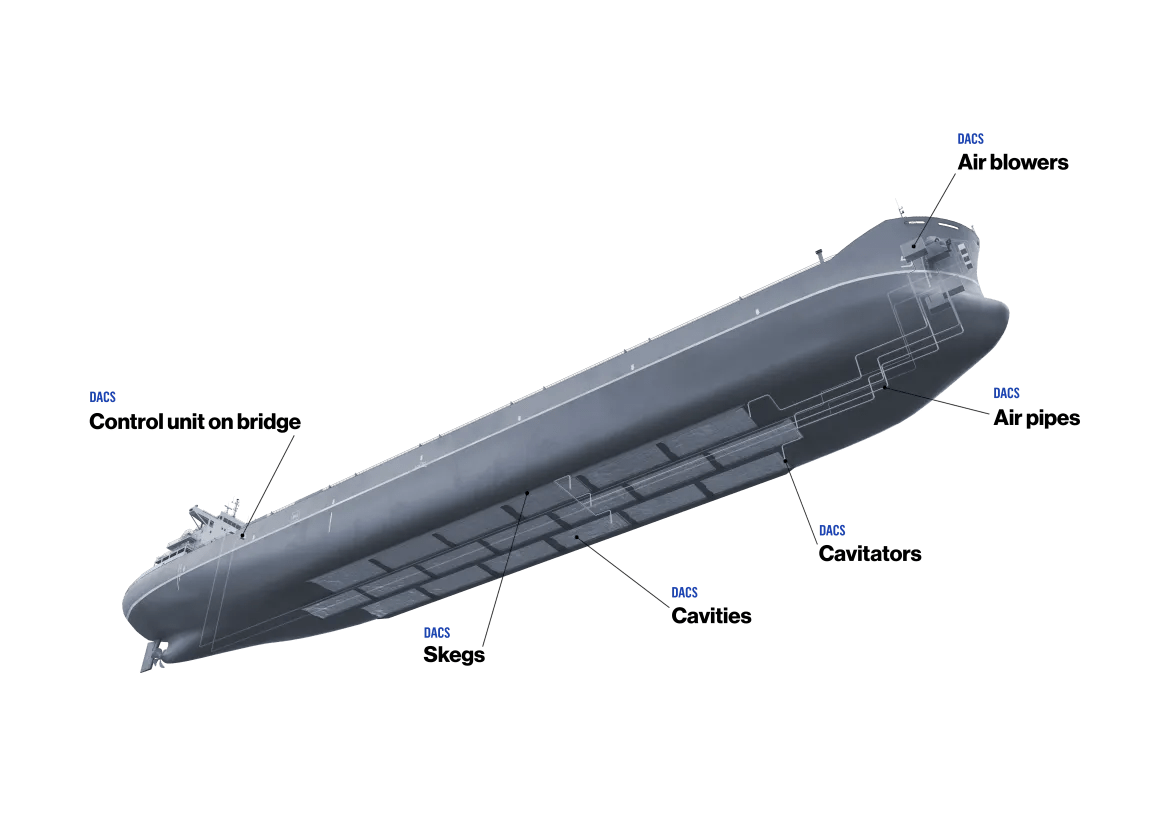

With DACS an air cavity is created by injecting air underneath the vessel behind a small cavitator that separates the water flow from the hull. To secure the cavity, longitudinal skegs are installed to prevent the air from escaping to the side. The compressors only need to overcome the hydrostatic pressure due to the draught of vessel. As a result of this, the air cavity method requires considerably lower compressor power, then competitive first generation systems. To maximise the area of the hull covered by the system, a series of subsequent cavities are created, separated by transverse skegs that ensure seakeeping behavior is maintained. Having a series of cavities in place has the additional advantage that any air escaping from one cavity is absorbed in the next.
Advantages of the Air lubrication system

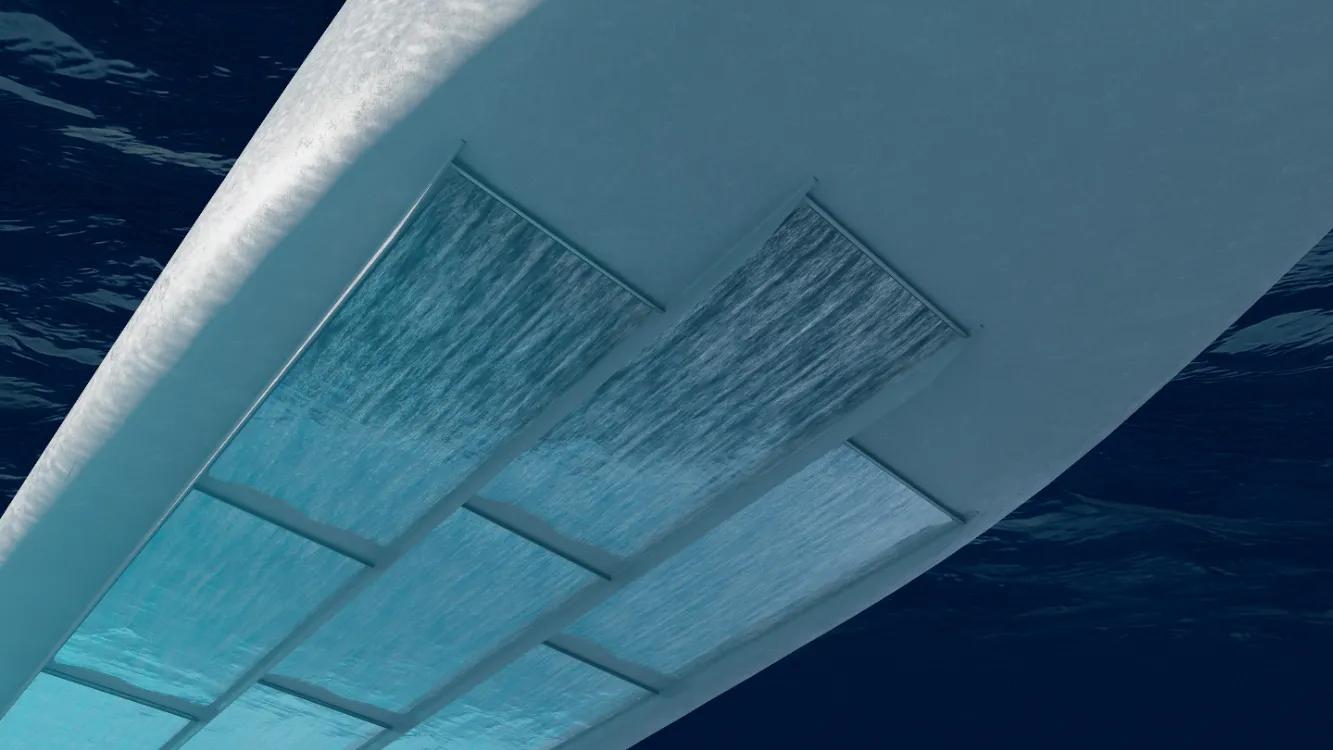

Air cushions instead of air bubbles
Damen Air Cavity System© was developed in a collaboration with Delft University of Technology. The technology is patented worldwide. DACS is reducing the wetted area of the vessel. This is done by creating stable pockets of air that separate the hull from the water. Damen Shipyard group has commercialised the technology by using MARIN and HSVA to evaluate under real ship conditions.
Easy to install

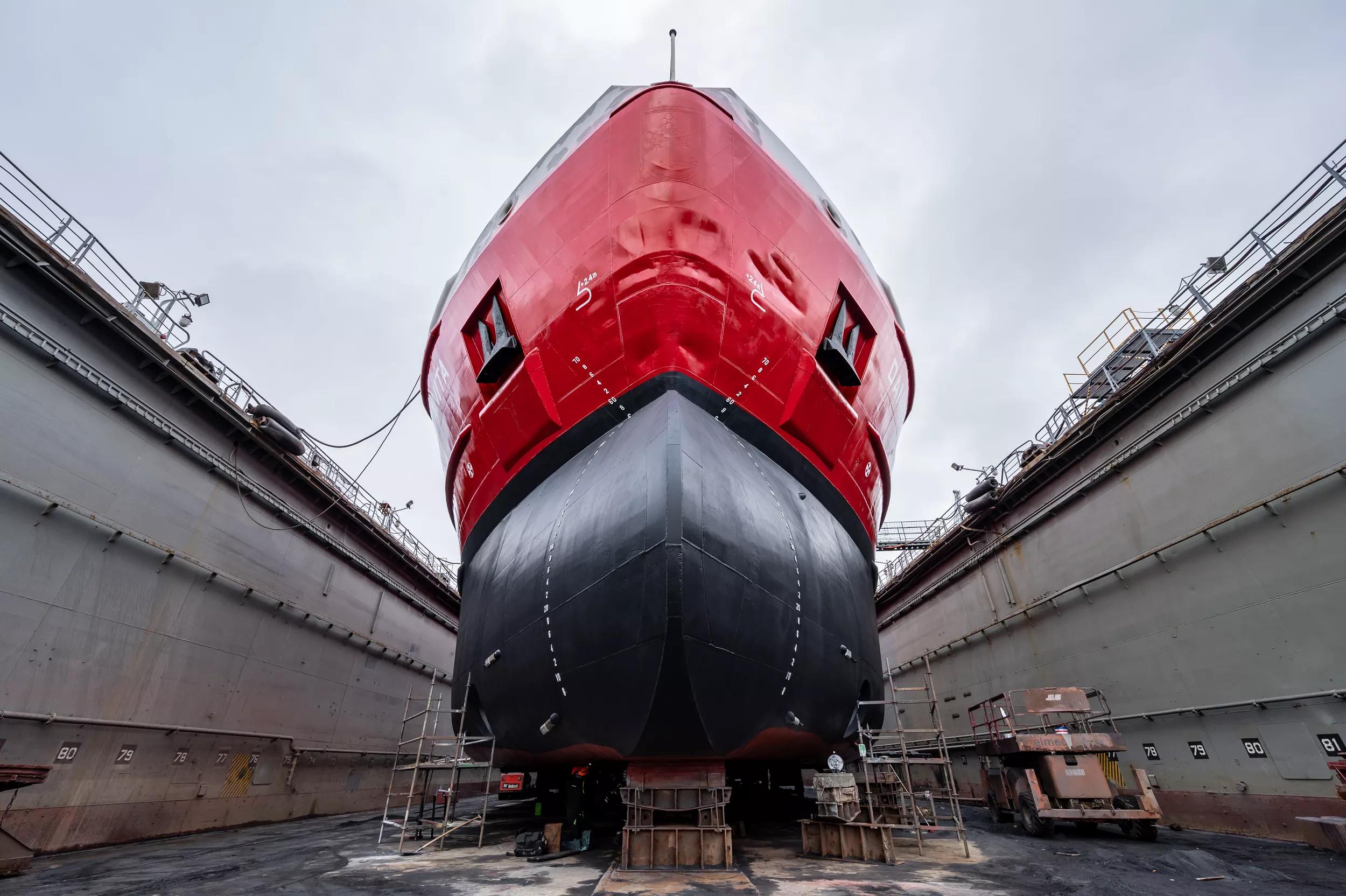

Damen Air Cavity System© is easy to install during a regular docking in a yard of your choice or at any of the 15 Damen Shiprepair yards. Request more information or ask for a quote via the button below.
Interested in a conversation?
Contact us and get in touch with the experts in field.
Let’s reduce your GHG emissions together
Make your vessel more sustainable, reduce emissions, and save fuel. Damen offers a unique combination of expertise, proven technology, financial services, and installation support.
Make vessels more sustainable
You can save costs and, at the same time, make your vessel future-proof. With current IMO and EU regulations, it’s necessary to take action.
Reduce emissions
Damen provides best-in-class solutions to decarbonise your vessel and achieve lower emissions.
Vessel Emissions Reporting
Our emission report combines the vessels sensor data with the design knowledge, resulting in various automated reports, focused on emissions. Damen Triton provides you with valuable insights, creates awareness and stimulates to reduce emissions.
